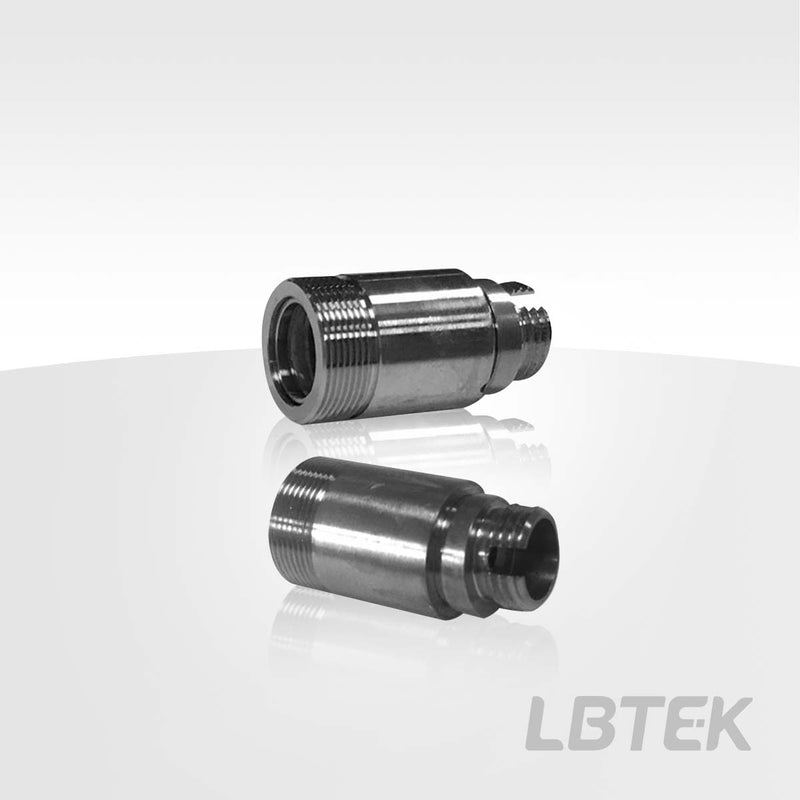

Fixed fiber optic collimator FC405-2-APC
FC405-2-APC$301.79
In Stock
Key Specifications
Wavelength
405.0nm
Design Tools
View all 49 calculators →Complete Your Setup
RoHS
REACH
LBTEK Fixed Fiber Collimator (FC/APC Connector) is compatible with FC/APC connector-type fibers and can be paired with the LBTEK Collimator Mount TAD-11 for fixation onto a 30 mm coaxial mounting plate OPM-12.5AS. Additionally, optional LBTEK fiber flanges SM1E-FAPC and SM1-FAPC can be selected to install SM1 internal/external threads for integration into a 30 mm coaxial system.
- Multiple working wavelengths available
- Output spot diameter: 2.0 mm
- Fiber connector type: FC/APC
| Operating Wavelength | 405 nm |
| Anti-reflection coating range | 400 nm-700 nm |
| Output spot diameter | 2.0 mm |
| Focal length | 10.1 mm |
| Material | N-BK7 |
| Housing Material | Non-magnetic stainless steel |
| Housing Thread | M11×0.5 |
| Housing Diameter | 11.0 mm |
| Divergence angle | <0.015° |
| Deflection angle | <0.25° |
| AR Coating Reflectance | Rabs<0.25%<sup>a</sup>@405 nm (6° incidence angle, single side) |
| NA<sub>lens</sub> | 0.37 |
