Free-Space Rotation Mounts CMRM05S
✔ In Stock — Ships Today

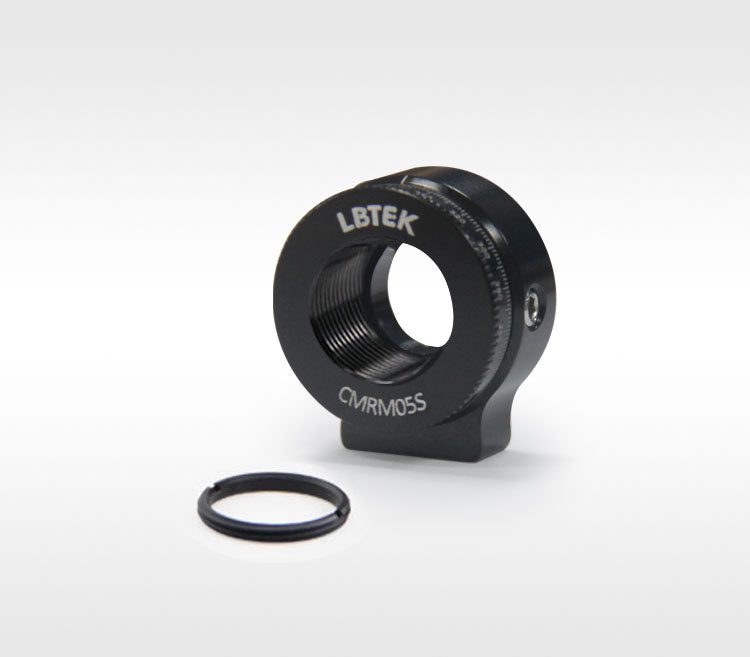

The LBTEK CMRM05S Free-Space Rotation Mount is designed for mounting Ø12.7 mm anisotropic optical components, featuring 360° rotation with 2° scale accuracy and numerical markings every 20°. It includes a side locking screw to secure the rotating body and an M4 threaded hole at the base for connecting to optical posts.
Key Features
- 360° rotation with minimum precision of 2°
- SM05 threaded mounting hole, includes one SM05R retaining ring
- Bottom M4 threaded hole for connecting to optical posts
- Accommodates optical components with maximum thickness of 7.2 mm
Application
CMRM05S Mounted on Ø12.7mm Stainless Steel Optical Post
| Material | 6061-T6 Aluminum Alloy |
| Surface Treatment | Black anodized |
| Applicable optical element diameter | Ø12.7 mm |
| Maximum applicable thickness of optical components | 7.2 mm |
| Bottom threaded hole specifications | M4 |
| Compatible Thread Standard | SM05 |
| Rotation angle | 360° |
| Scale accuracy | 2° |
| Number of Adjusters | 1 |
| Optical axis center height | 15 mm |
| Attribute 692 | No |
CAD Drawing
Download
Click and drag to rotate. Scroll to zoom.
Product Family: Free-Space Rotation Mounts (7 variants)
| Product | SKU | Size | Clear Aperture | Operating Wavelength | |
|---|---|---|---|---|---|
| Free-Space Rotation Mounts CMRM05S Current |
CMRM05S
| — | — | — | |
| Free-Space Rotation Mounts CMRM05 |
CMRM05
| — | — | — | View |
