Free-Space Rotation Mounts RMS-1A
✔ In Stock — Ships Today

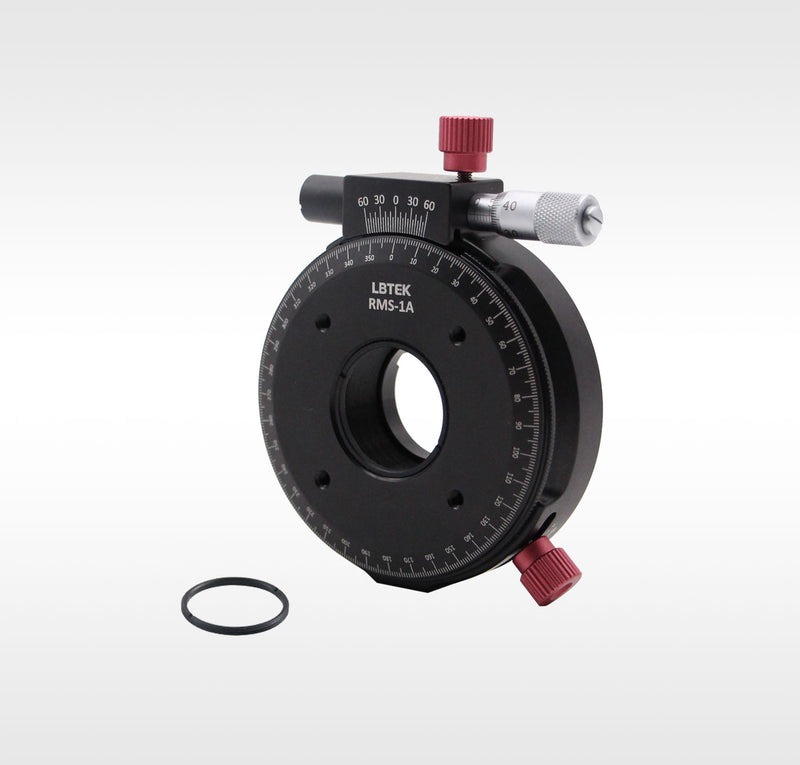

The Free-Space Rotation Mount provided by LBTEK is suitable for mounting Ø25.4 mm optical components and offers 360° rotation. The side thumb screw enables switching between coarse and fine adjustments. During coarse adjustment, the rotation dial has a scale accuracy of 1°, with differential line accuracy of 5′ (0.08°). For fine adjustment, the micrometer head provides an adjustment range of ±5° with an accuracy of 1.2′ (0.02°), and the micrometer head can be locked via the thumb screw on its top. The base features an M4 threaded hole for connecting to optical posts.
Key Features
- 360° rotation, suitable for Ø25.4 mm optical components
- Rotation dial scale accuracy 1°, differential scale accuracy 5′ (0.08°)
- Micrometer with 10 main divisions and 50 sub-divisions, allowing ±5° adjustment with precision of 1.2′ (0.02°)
- M4 threaded hole at bottom for connecting to optical posts
- Maximum mounting thickness 12 mm for optical components
Application
The RMS-1A Mounted on a Ø12.7 mm Stainless Steel Optical Post
| Material | 6061-T6 aluminum alloy |
| Surface Treatment | Black anodized |
| Maximum applicable thickness of optical components | 12 mm |
| Applicable optical element diameter | Ø25.4 mm |
| Optical axis center height | 35 mm |
| Maximum applicable thickness of optical components | SM1R/1 piece |
| Rotation angle | 360° |
| Scale accuracy | 1° |
| Adjustment accuracy | 1.2′（0.02°） |
| Bottom threaded hole specifications | M4 |
CAD Drawing
Download
Click and drag to rotate. Scroll to zoom.
Product Family: Free-Space Rotation Mounts (7 variants)
