Free-Space Rotation Mounts — Model CMRM1
✔ In Stock — Ships Today

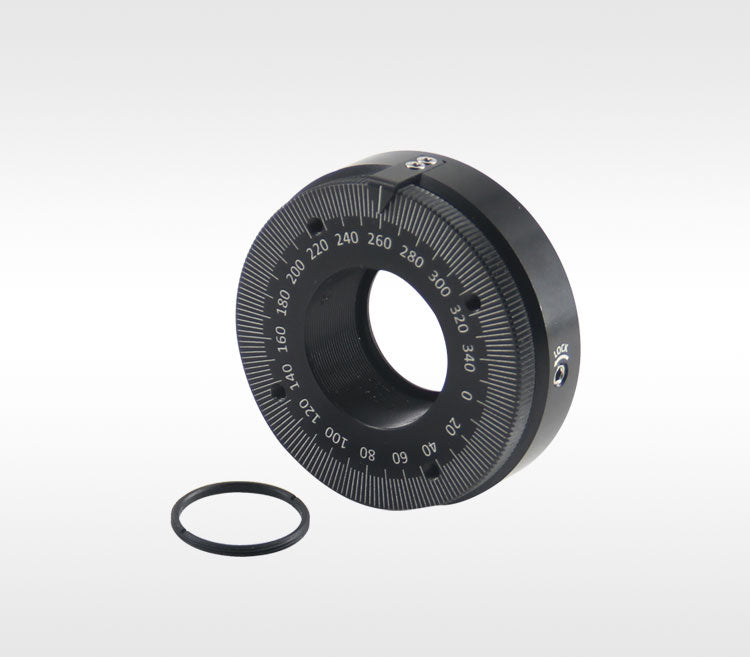

The LBTEK CMRM1 Free-Space Rotation Mount is designed for installing Ø25.4 mm anisotropic optical components, featuring 360° rotation with 2° scale accuracy and numerical markings every 20°. It includes a side locking screw to secure the rotating body and has an M4 threaded hole at the bottom for connecting to optical posts.
Key Features
- 360° rotation, minimum precision 2°
- SM1 threaded mounting hole, includes one SM1R retaining ring
- Bottom M4 threaded hole for connecting optical posts
- Accommodates optical components up to 14 mm thick
- Smooth rotation achieved using two NSK precision bearings
Application
CMRM1 Mounted on Ø12.7 mm Stainless Steel Optical Post
No specifications available for this product.
CAD Drawing
Download
Click and drag to rotate. Scroll to zoom.
Product Family: Free-Space Rotation Mounts (7 variants)
| Product | SKU | Size | Clear Aperture | Operating Wavelength | |
|---|---|---|---|---|---|
| Free-Space Rotation Mounts CMRM05S |
CMRM05S
| — | — | — | View |
| Free-Space Rotation Mounts CMRM05 |
CMRM05
| — | — | — | View |
| Free-Space Rotation Mounts RMS-05A |
RMS-05A
| — | — | — | View |
| Free-Space Rotation Mounts CMRMD1 |
CMRMD1
| — | — | — | View |
| Free-Space Rotation Mounts CMRMD2 |
CMRMD2
| — | — | — | View |
| Free-Space Rotation Mounts CMRM1 Current |
CMRM1
| — | — | — | |
| Free-Space Rotation Mounts RMS-1A |
RMS-1A
| — | — | — | View |
