product
WaveQuanta

GRL lens ferrule BGC-2800-1810

BGC-2800-1810
$9.48
In Stock
Key Specifications
Diameter 1.81mm
Request Quote

Design Tools

Gaussian Beam Calculator Model beam propagation through your optical system
View all 49 calculators →
RoHS REACH

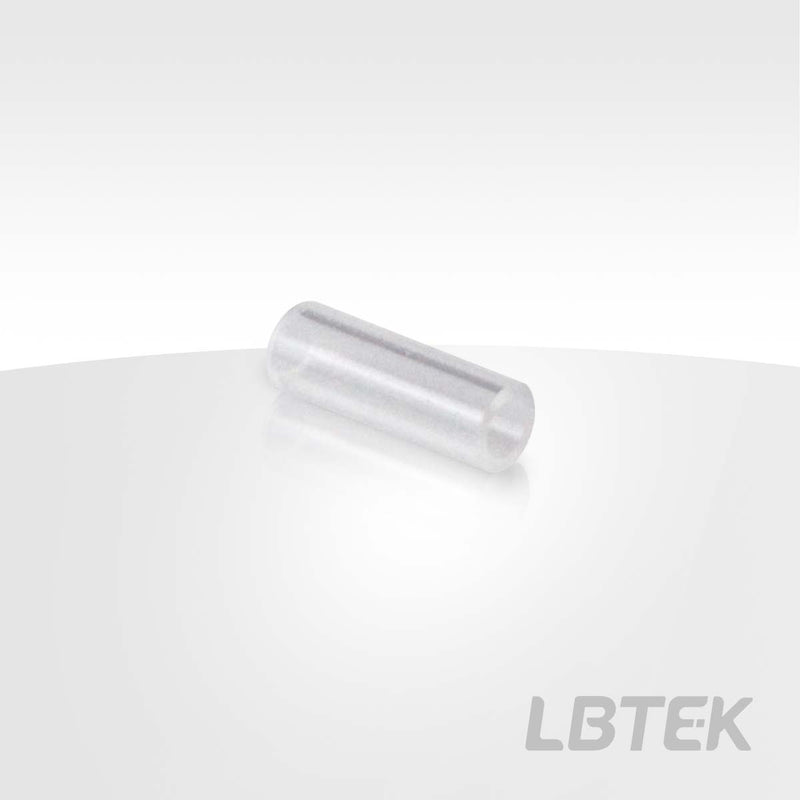

GRL lens ferrule — Model BGC-2800-1810

GRL lens ferrule

Product Description

  • Application: Focusing, Collimating, Imaging
  • Diameter: 1.8 mm
  • Multiple Working Wavelengths Available

LBTEK gradient-index lenses are cylindrical optical lenses that utilize internal refractive index variations to alter the direction of light propagation within the lens. The refractive index of the gradient-index lens material gradually decreases along the radial direction, achieving purposes such as focusing, collimation, or imaging. Since both gradient-index focusing and collimation occur at the end faces, the lens and optical components can be tightly bonded without air gaps, reducing manufacturing complexity. LBTEK gradient-index lenses have a diameter of 1.8 mm and offer various working wavelength options. Based on their working principle, gradient-index lenses are widely applicable in fiber optic scenarios.

GRL lens ferrule

  • Diameter: 1.81 mm
  • Material: High Borosilicate Glass
  • Length: 8.0 mm

Address：Building A6, Huanchuang Enterprise Plaza, Yuelu Idstrict, Changsha

Numerical Aperture0.46
Diameter1.81 mm
Clear Aperture85.0 mm
Diameter1.81 mm
Specification Sheet PDF — Download
CAD Drawing Download
3D Model (STL) STL — Download

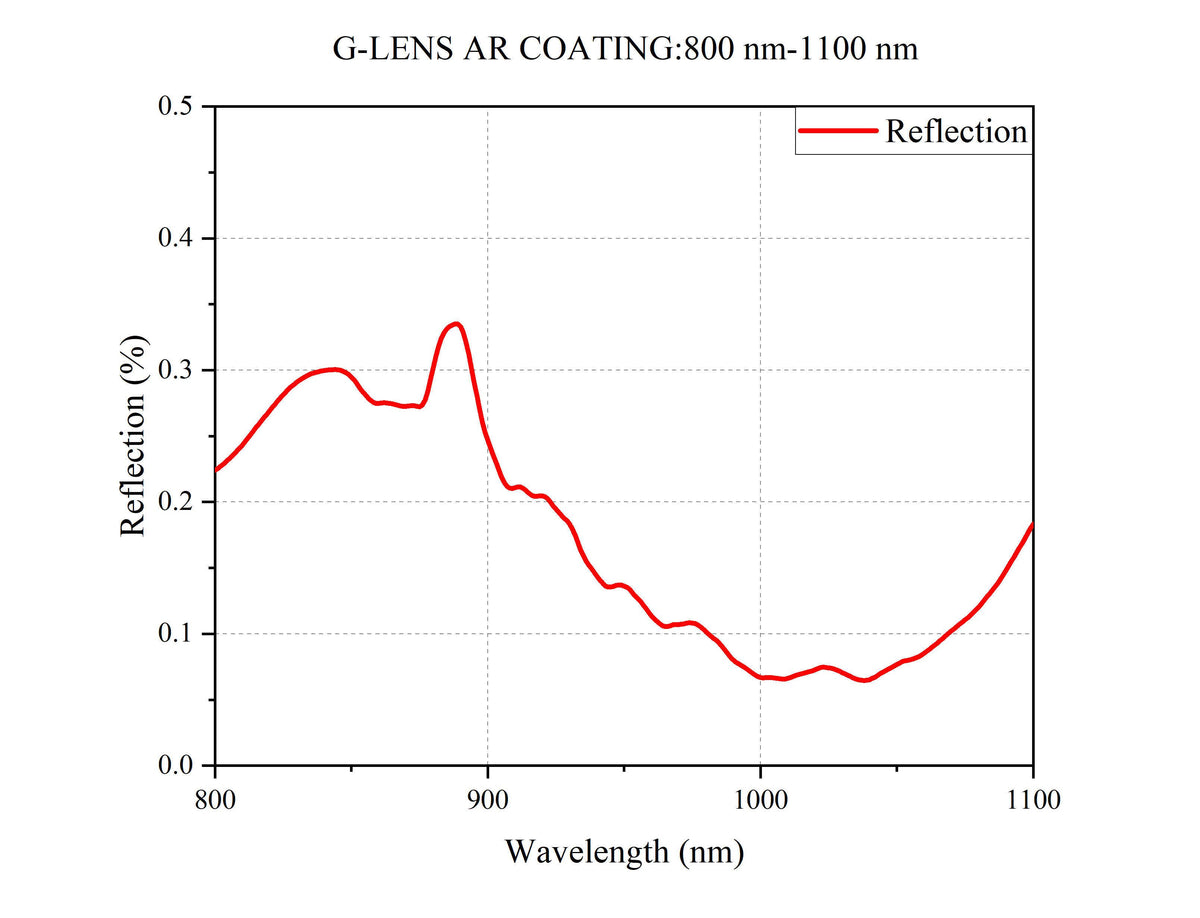

Curve - G-LENS AR COATING800 nm-1100 nm(1)
Curve - G-LENS AR COATING800 nm-1100 nm(1)

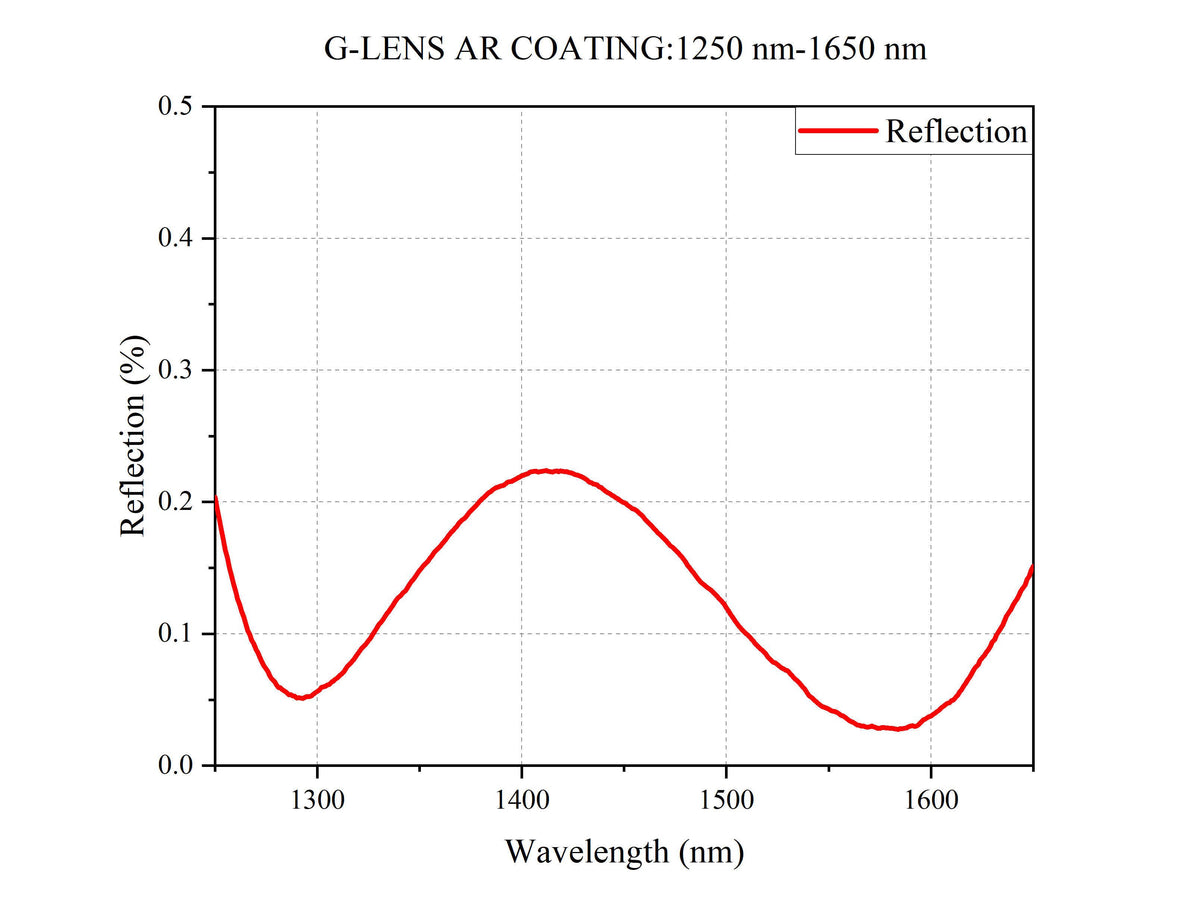

Curve - G-LENS AR COATING1250 nm-1650 nm(1)
Curve - G-LENS AR COATING1250 nm-1650 nm(1)
Curve - G-LENS AR COATING800 nm-1100 nm(1)
Curve - G-LENS AR COATING800 nm-1100 nm(1)
Curve - G-LENS AR COATING1250 nm-1650 nm(1)
Curve - G-LENS AR COATING1250 nm-1650 nm(1)
