WaveQuanta

Gradient-Index Lens GRL23-8D-830N

GRL23-8D-830N
$59.69
In Stock
Key Specifications
Wavelength 830.0nm
Diameter 1.8mm
Request Quote

Design Tools

Gaussian Beam Calculator Model beam propagation through your optical system Wavelength \u2194 Wavenumber Convert between wavelength, frequency, and energy
View all 49 calculators →
RoHS REACH

Gradient-Index Lens — Model GRL23-8D-830N

Operating wavelength 830 nm, Ø1.8 mm.

Product Description

  • Application: Focusing, Collimating, Imaging
  • Diameter: 1.8 mm
  • Multiple Working Wavelengths Available

LBTEK gradient-index lenses are cylindrical optical lenses that utilize internal refractive index variations to alter the direction of light propagation within the lens. The refractive index of the gradient-index lens material gradually decreases along the radial direction, achieving purposes such as focusing, collimation, or imaging. Since both gradient-index focusing and collimation occur at the end faces, the lens and optical components can be tightly bonded without air gaps, reducing manufacturing complexity. LBTEK gradient-index lenses have a diameter of 1.8 mm and offer various working wavelength options. Based on their working principle, gradient-index lenses are widely applicable in fiber optic scenarios.

Gradient-Index Lens

  • Diameter 1.8 mm
  • Multiple Working Wavelengths Available
  • Length: 0.23P/0.29P, Where P is the Pitch
Clear Aperture85%
Operating Wavelength830 nm
Diameter1.8 mm
Specification Sheet PDF — Download
CAD Drawing Download
3D Model (STL) STL — Download

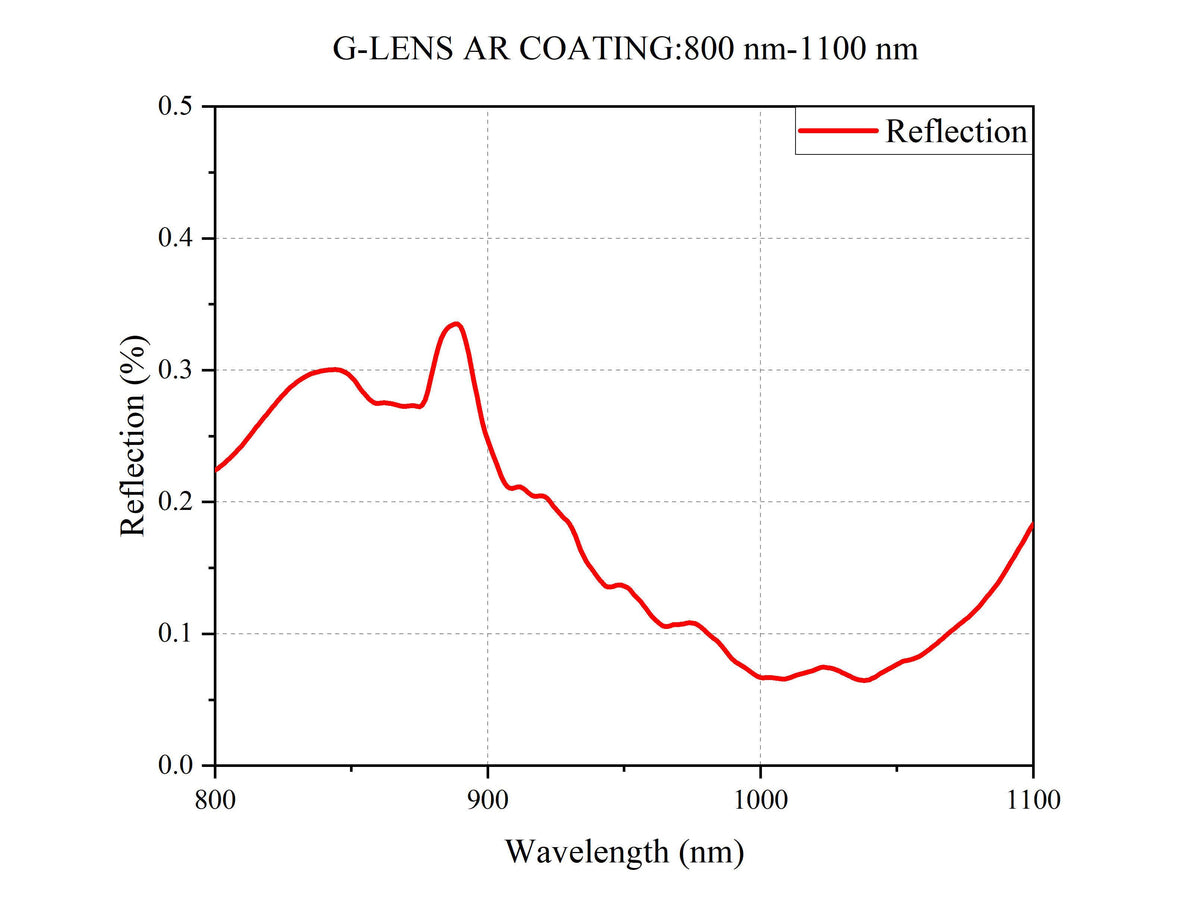

Curve - G-LENS AR COATING800 nm-1100 nm(1)
Curve - G-LENS AR COATING800 nm-1100 nm(1)

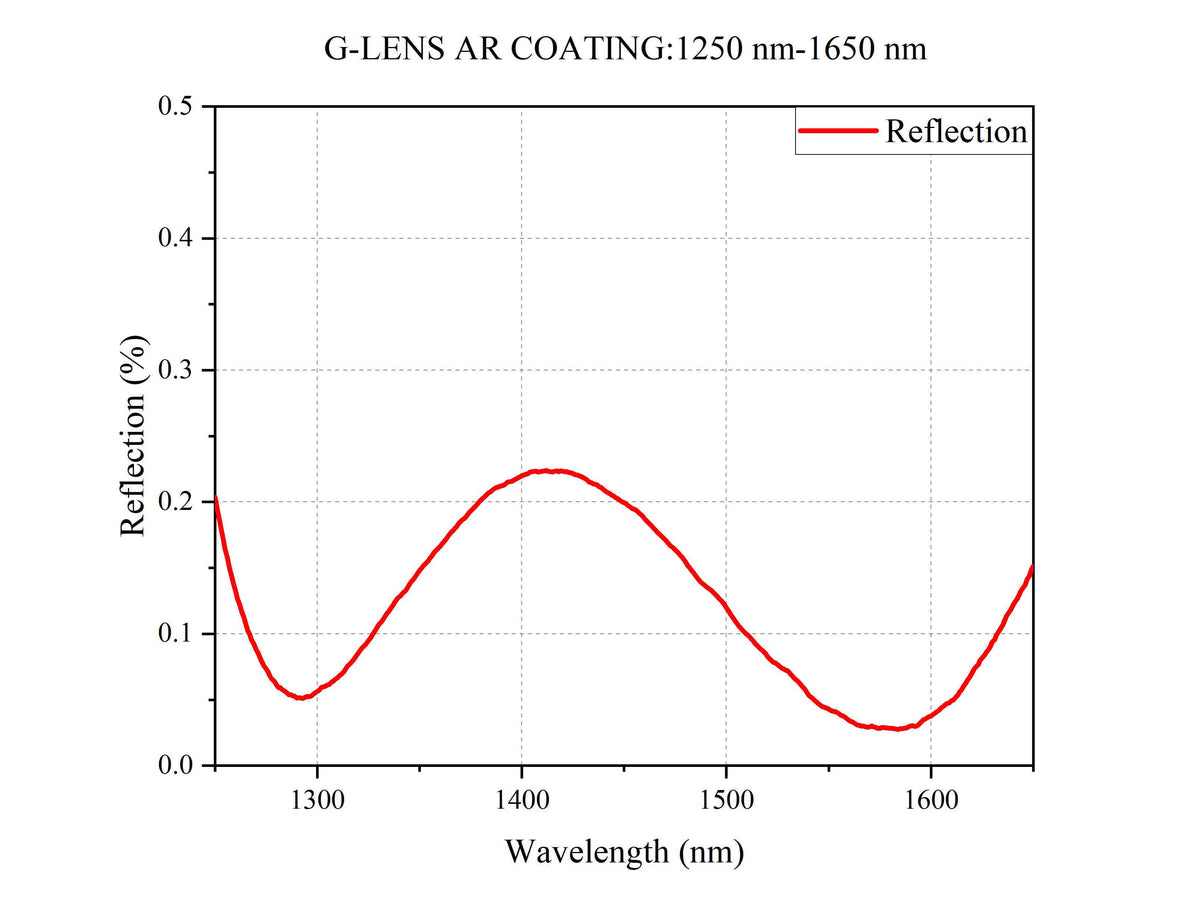

Curve - G-LENS AR COATING1250 nm-1650 nm(1)
Curve - G-LENS AR COATING1250 nm-1650 nm(1)
