HP-PLNAPO50XNIR
LBTek

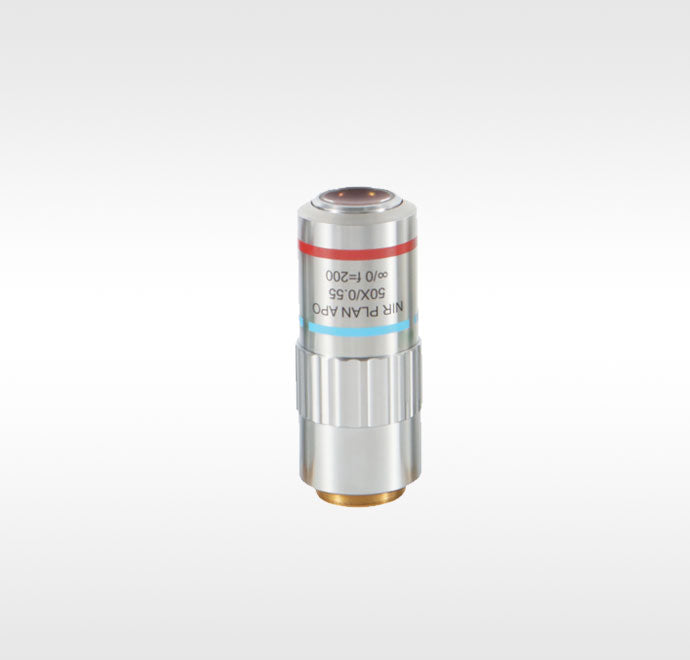

High-Power Laser Objectives HP-PLNAPO50XNIR

HP-PLNAPO50XNIR
$2,371.64
In Stock
Request Quote

Design Tools

Gaussian Beam Calculator Model beam propagation through your optical system
View all 49 calculators →

Complete Your Setup

Lasers & Sources Mirrors Lenses Detectors & Measurement
RoHS REACH

LBTEK offers high-power laser objectives with a wavelength range of 1030 nm to 1064 nm and magnifications of 20X and 50X. The HR objectives offer high resolution and come with a conveniently replaceable 1.8 mm cover glass. Each objective has a 26 mm × 0.706 mm external thread and can be mounted on an internally SM1-threaded mount using the LBTEK SM1-M26A thread adapter. These high-power laser objectives are suitable for brightfield observation.

Key Features

  • Suitable for focusing and collimating high-power lasers
  • Correcting chromatic aberration in the visible spectrum, allowing coaxial observation of the processing surface with the laser beam
  • Suitable for 1030-1064 nm laser processing
  • HR-type objectives come with easily replaceable protective glass (1.8mm thickness)

Application

The objective is mounted in an optics mount using the SM1-M26A thread adapter

Operating Wavelength 1030-1064 nm
Focal length 4 mm
Working distance 13 mm
Compatibility M26×0.706
Numerical Aperture 0.55
Magnification 50X
Resolution 0.50 μm
Objective Field Number 0.48
Parfocal distance 95 mm
Aperture 0.19 mm× 0.26 mm
Attribute 1835 0.91 μm
No documents available for this product.
No CAD drawings available for this product.
