Yi-Laser

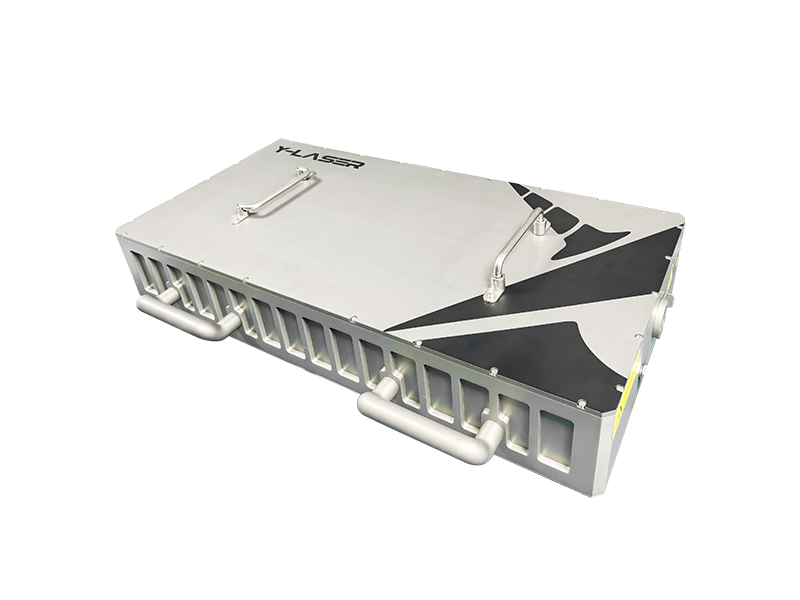

HYPERION-G-HE High-Energy MPC Pulse Compressor
YL-HYPERION-G-HEContact for pricing
In Stock
Key Specifications
Contact Sales
Wavelength
1030.0nm
Pulse Width
50.0fs
Avg Power
80.0W
Design Tools
Time-Bandwidth Product
Check if your pulse is transform-limited
Pulse Stretching & Compression
Calculate GVD, TOD, and pulse broadening
Watt \u2194 dBm Converter
Convert between optical power units
Wavelength \u2194 Wavenumber
Convert between wavelength, frequency, and energy
View all 49 calculators →
Complete Your Setup
RoHS
REACH
The HYPERION-G-HE series is a high-performance nonlinear pulse compressor designed for high single-pulse energy applications. It compresses pulse duration using spectral broadening, improving time resolution and overall laser performance. Compatible with up to 2mJ single-pulse energy, especially for Yb laser systems, it offers precise pulse compression.
With high-quality femtosecond optics and an innovative cavity design, it ensures minimal loss and optimal efficiency. Its automatic monitoring system tracks pulse stability for reliable output. The HYPERION-G-HE is durable, interference-resistant, and suitable for both research and industrial applications, enhancing laser system performance for precision manufacturing and ultrafast optics.
Key Features
- Maximum single-pulse energy of 2mJ to meet high-energy laser requirements
- Pulse compression improves time resolution by 5-10 times
- Spectral broadening technology effectively compresses pulse width
- Real-time monitoring system accurately tracks laser pulse spot quality
- Incident laser central wavelength
- Maximum compatible power
- Typical compression ratio
Applications
- Surface Nanostructuring
- Precision Part Cutting
| Central Wavelength | 1036 ± 5 nm |
| Incident Pulse Width | 150 fs-1 ps |
| Incident Pulse Energy | 400 - 2000 μJ |
| Incident Laser Central Wavelength | 1036 ± 5 nm |
| Maximum Compatible Power | 80 W |
| Typical Compression Ratio | 5 - 10 |
| Compressor Efficiency | >90% |
| Typical Output Pulse Width | <35 fs |
| Compatibility | Can be cascaded with HCF system to output few-cycle pulses |
| Dimensions (L×W×H) | 958 x 416 x 222 mm |
| Weight | 85 kg |
| Additional Weight | 24 kg（Water-cooled machine） |
| Power Supply | AC 220V/10A |
| Chiller | 220V/0.6-5.6A/1.02kW（CWUP - 10AI） |
HYPERION-G-HE High-Energy MPC Pulse Compressor — Dimensional Drawing (click to enlarge)

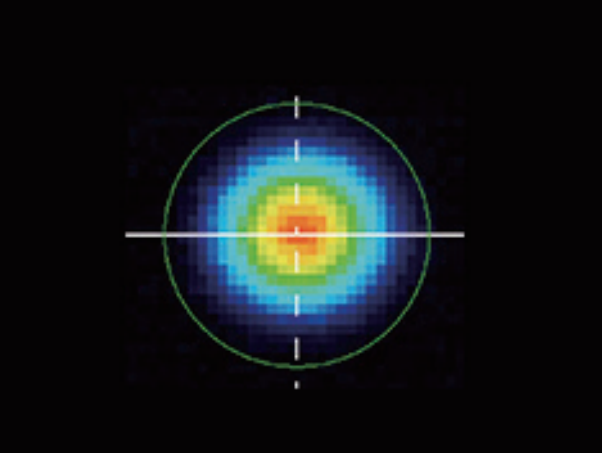

Far-Field Spot — Graph

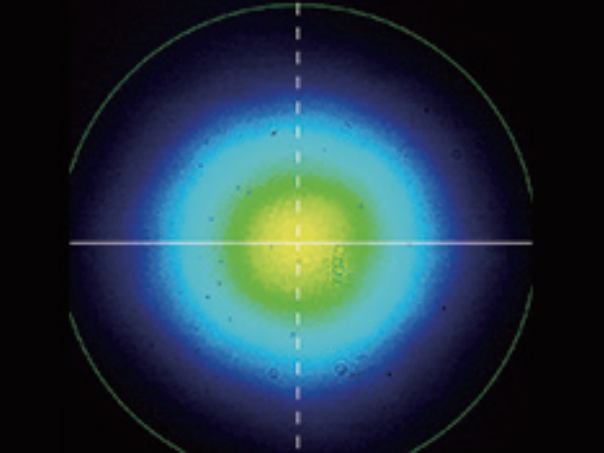

Near-Field Spot — Graph

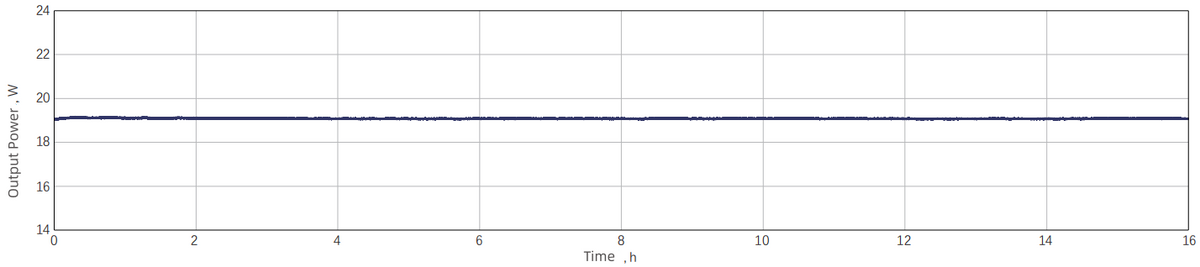

Power Stability: RMS 0.0455% over 16 hours at 19.74 W / 1.97 mJ / 10 kHz — Graph
Power Stability: RMS 0.0455% over 16 hours at 19.74 W / 1.97 mJ / 10 kHz — Graph

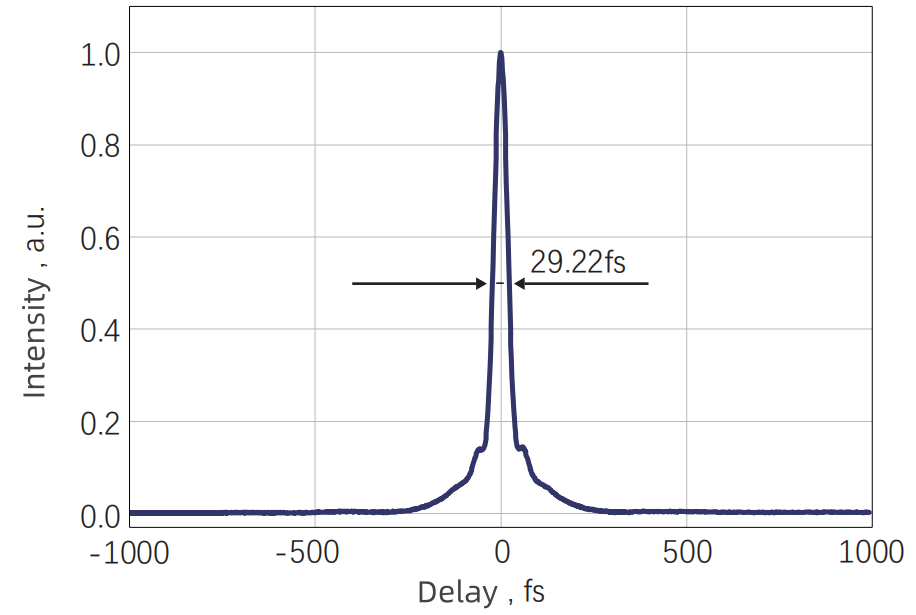

Typical Input Pulse Width — Graph

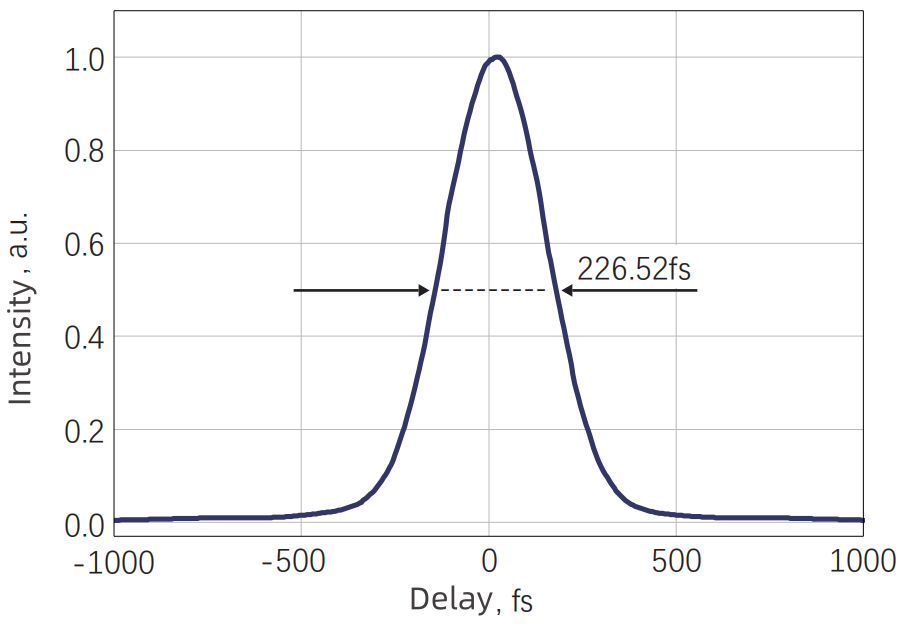

Typical Output Pulse Width — Graph

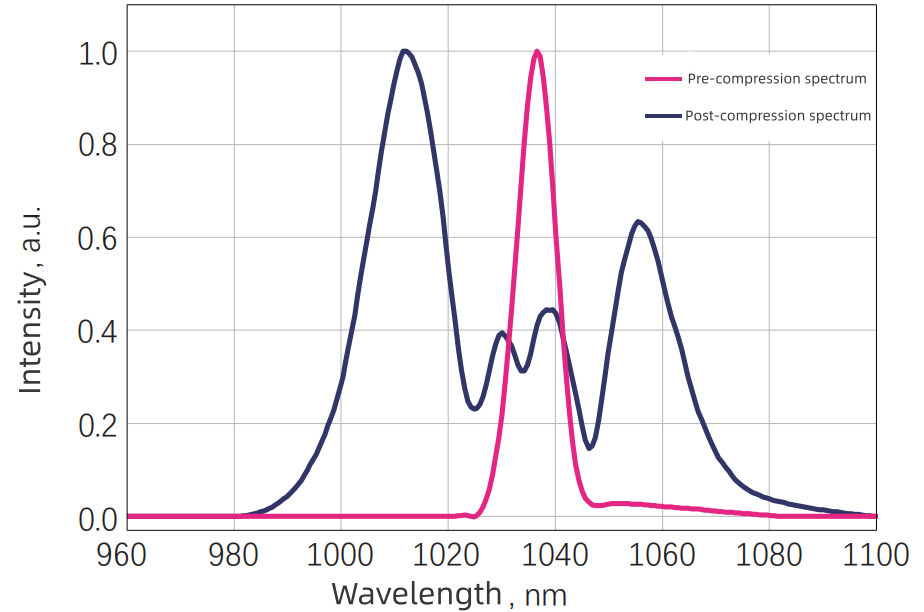

Typical Output Spectrum — Graph
