What wavelength range does HYPERION-S Compact MPC Pulse Compressor support?

HYPERION-S Compact MPC Pulse Compressor operates at a center wavelength of 1030.0 nm. The supported wavelength range is 1031.0–1041.0 nm.

What is the pulse width of HYPERION-S Compact MPC Pulse Compressor?

HYPERION-S Compact MPC Pulse Compressor delivers pulses with a duration of 50.0 fs.

What is the average power of HYPERION-S Compact MPC Pulse Compressor?

HYPERION-S Compact MPC Pulse Compressor provides an average power of 80.0 W.

What documentation is available for HYPERION-S Compact MPC Pulse Compressor?

The following documents are available for download on the HYPERION-S Compact MPC Pulse Compressor product page: Spec sheet. CAD drawing.Visit the Documents tab for direct download links.

Is HYPERION-S Compact MPC Pulse Compressor available for purchase?

Yes, request a quote for pricing and lead time at WaveQuanta.Contact our sales team for current availability and volume pricing.

Yi-Laser

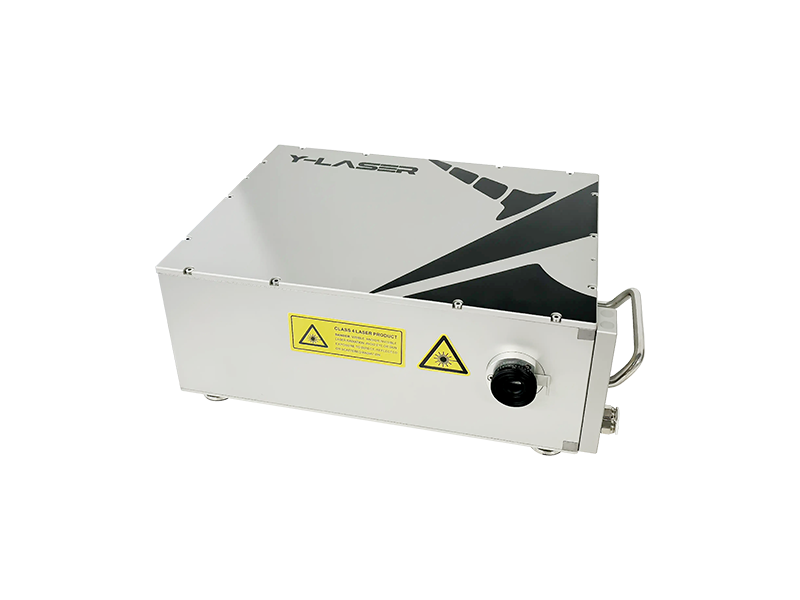

HYPERION-S Compact MPC Pulse Compressor

Name: HYPERION-S Compact MPC Pulse Compressor
Brand: Yi-Laser
SKU: YL-HYPERION-S
Availability: InStock

YL-HYPERION-S

Contact for pricing

In Stock

Key Specifications

Wavelength 1030.0nm

Pulse Width 50.0fs

Avg Power 80.0W

Contact Sales

Design Tools

Time-Bandwidth Product Check if your pulse is transform-limited Pulse Stretching & Compression Calculate GVD, TOD, and pulse broadening Watt \u2194 dBm Converter Convert between optical power units Wavelength \u2194 Wavenumber Convert between wavelength, frequency, and energy

View all 49 calculators →

Complete Your Setup

Lasers & Sources Mirrors Nonlinear Crystals Optomechanics

RoHS REACH

The HYPERION-S series is a pulse compressor using nonlinear technology to compress input laser pulses through spectral broadening. It features advanced cavity design and high-quality femtosecond optics for minimal transmission loss.

The built-in monitoring system ensures stable pulse output by checking the spot quality in real time. This pulse compressor offers excellent interference resistance, long lifespan, and can provide 5-10 times pulse compression, making it ideal for high-power, high-repetition-rate Yb femtosecond lasers.

Key Features

Excellent pulse compression: Pulse width under 50fs for ultrafast laser applications.
High system compatibility: Supports integration with HCF systems.
Superior stability: 24/7 operation with <0.24% RMS power fluctuation.
Efficient energy transfer: Over 80% compression efficiency.ent environments.
Incident laser central wavelength
Maximum compatible power
Typical compression ratio

Applications

Surface Nanostructuring
Precision Part Cutting

Central Wavelength	1036 ± 5 nm
Incident Pulse Width	150fs-1ps
Incident Pulse Energy	10 - 20 μJ （5-10 μJ Optional）
Incident Laser Central Wavelength	1036 ± 5nm
Maximum Compatible Power	80W
Typical Compression Ratio	5 - 10
Compressor Efficiency	>85%
Typical Output Pulse Width	<50fs
Compatibility	Can be cascaded with HCF system to output few-cycle pulses
Dimensions (L×W×H)	425 x 270x 146 mm
Weight	19.3kg
Additional Weight	24kg（Water-cooled machine）
Power Supply	AC 220V/10A
Chiller	220V/0.6-5.6A/10.2kW（CWUP - 10AI）

Specification Sheet PDF — Download

HYPERION-S Compact MPC Pulse Compressor — Dimensional Drawing (click to enlarge)

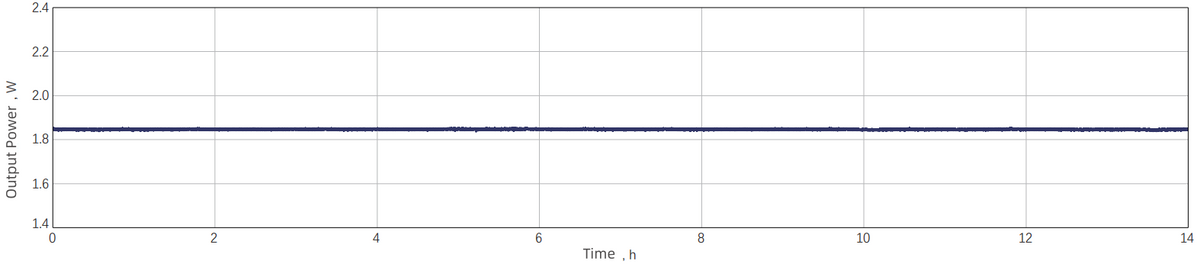

14h Power Stability — Graph

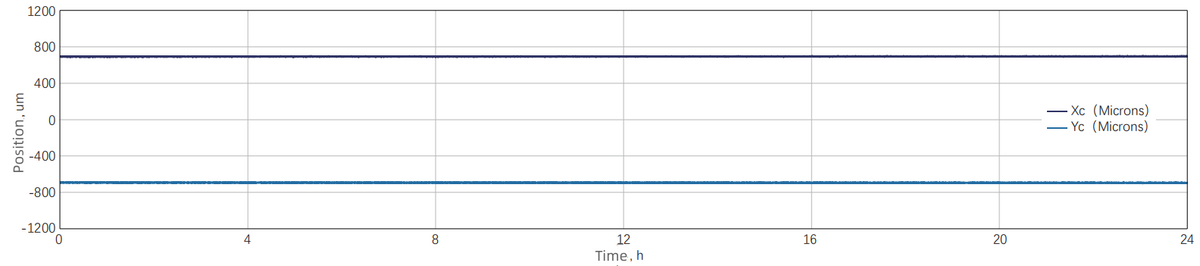

24h Pointing Stability — Graph

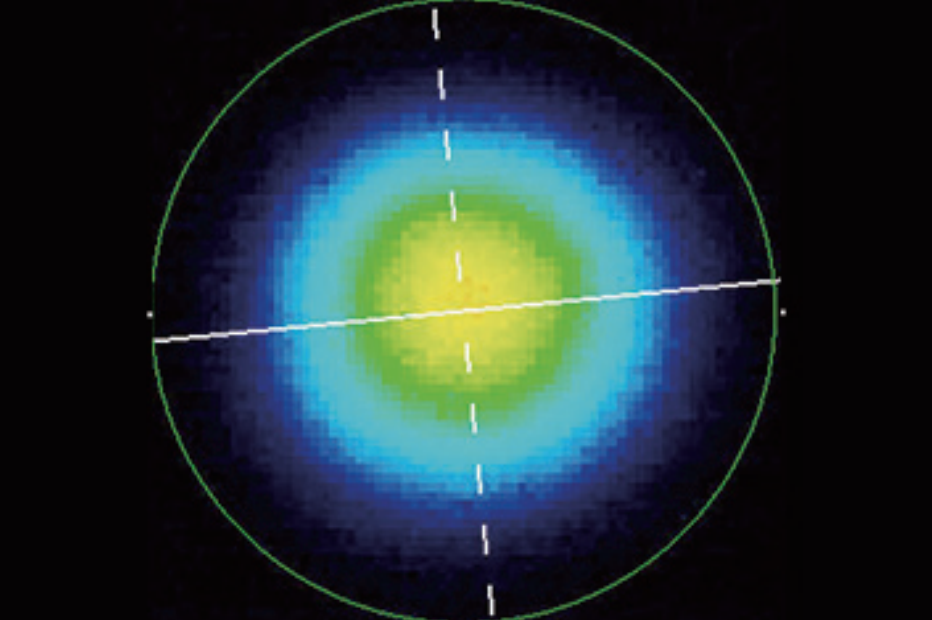

Far-Field Spot — Graph

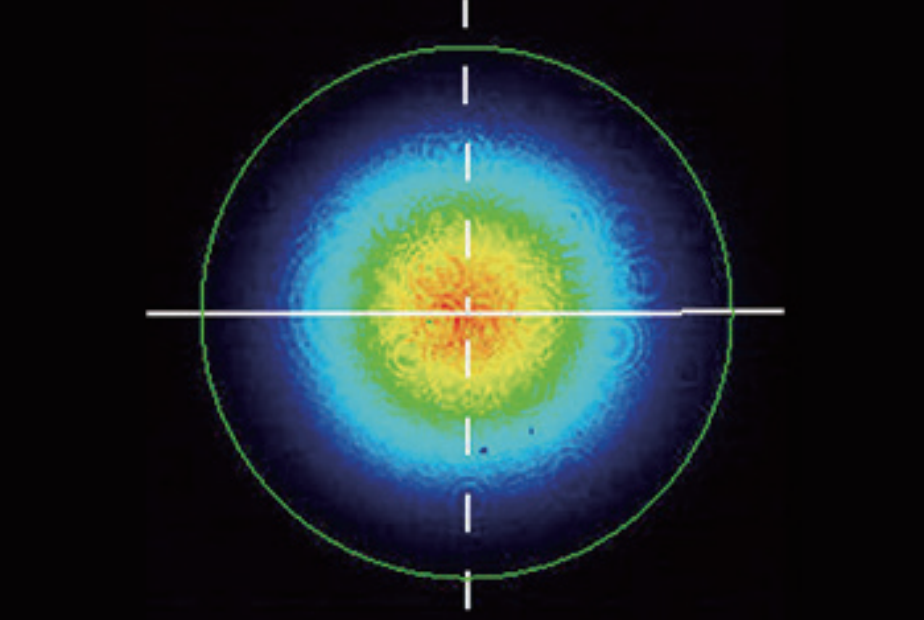

Near-Field Spot — Graph

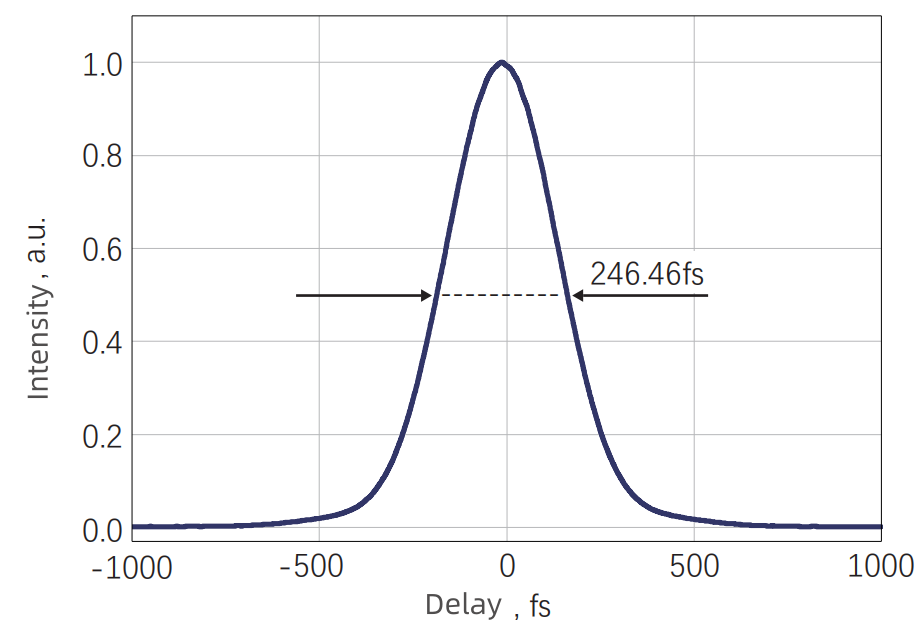

Typical Input Pulse Width — Graph

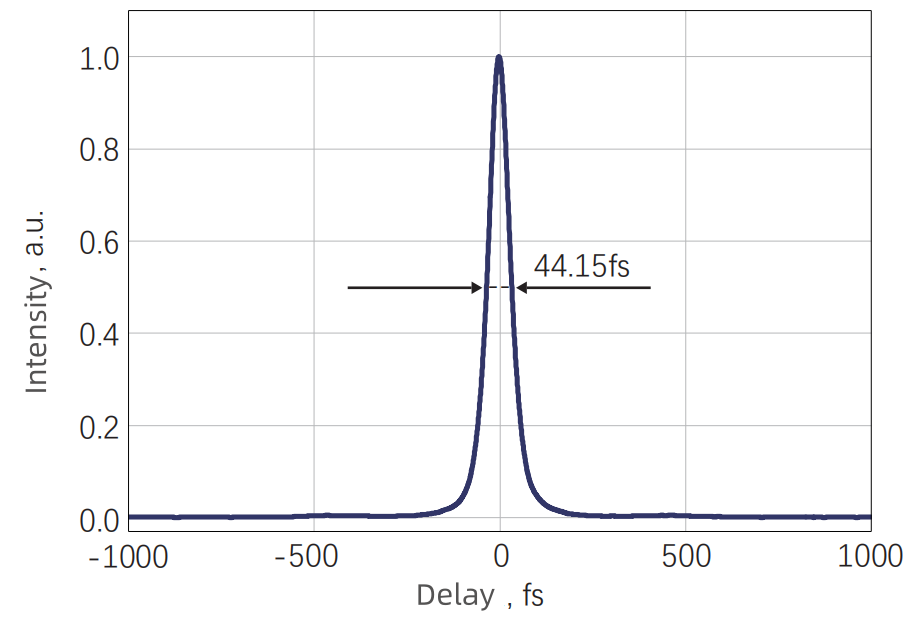

Typical Output Pulse Width — Graph

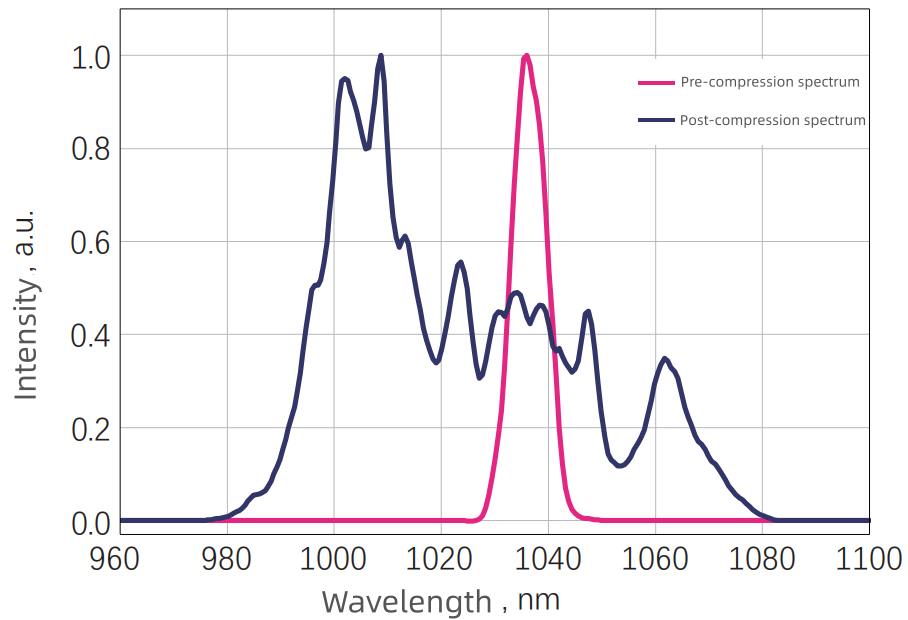

Typical Output Spectrum — Graph
