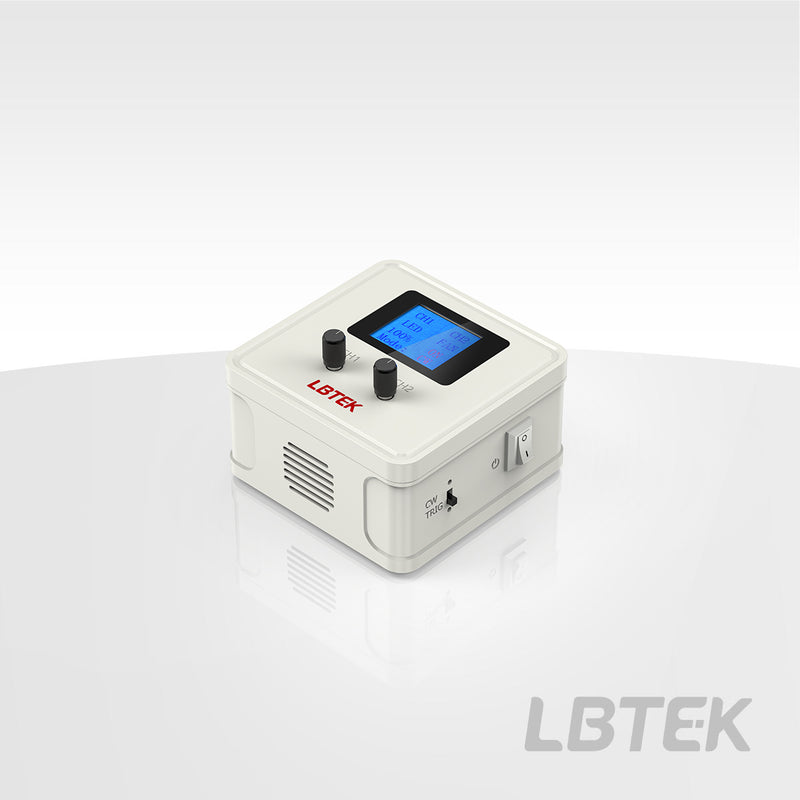

Light source controller LBLED-CT7V
LBLED-CT7V$414.71
In Stock
Design Tools
Photonics Calculators
Explore 49 free online calculators for photonics design
Unit Converters
Convert between wavelength, frequency, power, and more
View all 49 calculators →
Complete Your Setup
RoHS
REACH
LBTEK offers two models of light source controllers: LBLED-CT4V and LBLED-CT7V. The LBLED-CT4V is designed to work with collimated monochromatic LEDs and collimated white LEDs, while the LBLED-CT7V is paired with high-power white LEDs. You can directly adjust the light output using the knobs on the controller or control the light source via software. Additionally, this controller supports external trigger mode. For detailed usage instructions, please refer to the controller's user manual.
Key Features
- Supports external triggering and PC-controlled LED light sources
- External trigger level TTL 3.3-5V
Application
Light Source Controller Interface Diagram
| Number of channels | 1 |
| Output voltage | DC 12V |
| Maximum Output Current | 4.8 A |
| Attribute 1212 | 60 W |
| Attribute 1461 | External trigger level TTL 3.3-5 V |
| Attribute 981 | Air cooling |
| Attribute 1592 | LED control and internal modulation |
| Operating Temperature | 10~30 ℃ |
| Operating Temperature | 0~40 ℃ |
| Size | 110 mm×123.2 mm×77.85 mm |
| Attribute 1379 | Input AC110-240 V, Output DC12 V/5 A |
