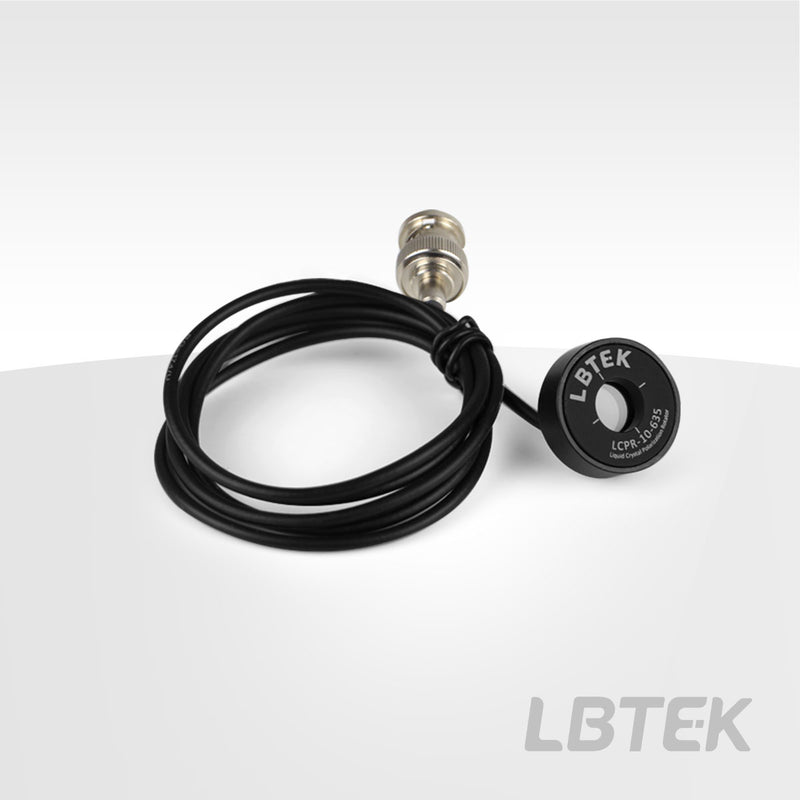

Liquid Crystal Optical Rotators, clear aperture Ø10 mm
The LBTEK Liquid Crystal Polarization Rotator is coated with anti-reflection coatings of the 400-700 nm wavelength range on both sides . Under the control of an external AC voltage, it can continuously rotate the polarization direction of incident linearly polarized light by 180°, with an extinction ratio of >1000:1 for the emergent light.
It features a clear aperture of Ø10 mm, mounted in a mechanical housing with attached wiring, The housing is compatible with Ø1-inch optical component mounts. The polarization direction of the incident light is marked on the rotator's housing. Each rotator comes with a test report, which includes a "voltage-rotation angle" curve and reference table for incident alignment adjustment.
Key Features
- Product dimensions Ø25.7×9 mm, compatible with Ø1-inch optical component mounts
- Continuous polarization direction rotation of the incident linearly polarized light over 180°
- Extinction ratio of emergent linearly polarized light up to >1000:1
Typical Applications
- Electrically controlled polarization rotation and switching
- Laser power attenuation when combined with a polarizer
- Polarization encoding for optical communication
- Polarization-contrast microscopy
- Liquid-crystal device evaluation
Product Family
LCPR-10-635 is part of the WaveQuanta liquid-crystal polarization rotator family, sourced from LBTEK and distributed by WaveQuanta with full datasheet, mechanical drawing, and 3D model support.
SKU: LCPR-10-635 · Sourced from LBTEK · Distributed by WaveQuanta
| Operating Wavelength | 635 nm |
| Transmittance | >69%@400-420 nm; >80%@420-500 nm; >90%@500-700 nm |
| Extinction Ratio | >1000:1 |
| Polarization Rotation Angle | >180 ° |
| Clear Aperture | Ø10 mm |
| Housing Specification | Ø25.7×9 mm, compatible with Ø1-inch optical component mounts |
| Surface Quality (Scratch/Dig) | 60/40 |
| Transmitted Wavefront Error | <λ/4@633 nm |
| Anti-Reflection Coating | Ravg<0.5 %@400-700 nm |
| Transmitted Beam Deviation (Without Housing) | <6 arcmin |
| Transmitted Beam Deviation (With Housing) | <10 arcmin |
| Operating Temperature | -20~45 ℃ |
CAD Drawing
Download
Click and drag to rotate. Scroll to zoom.

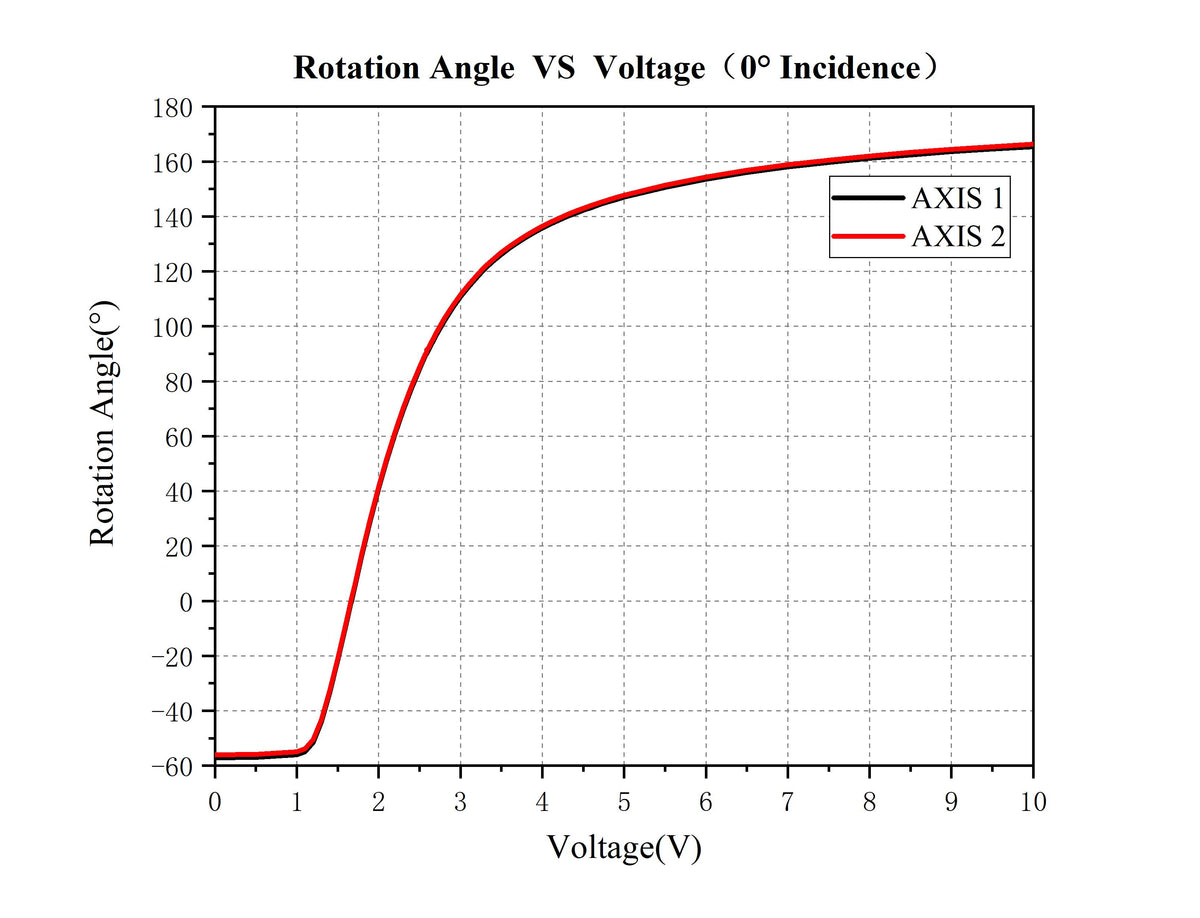

Curve - Rotation-Angle--VS--Voltage（0°-Incidence）

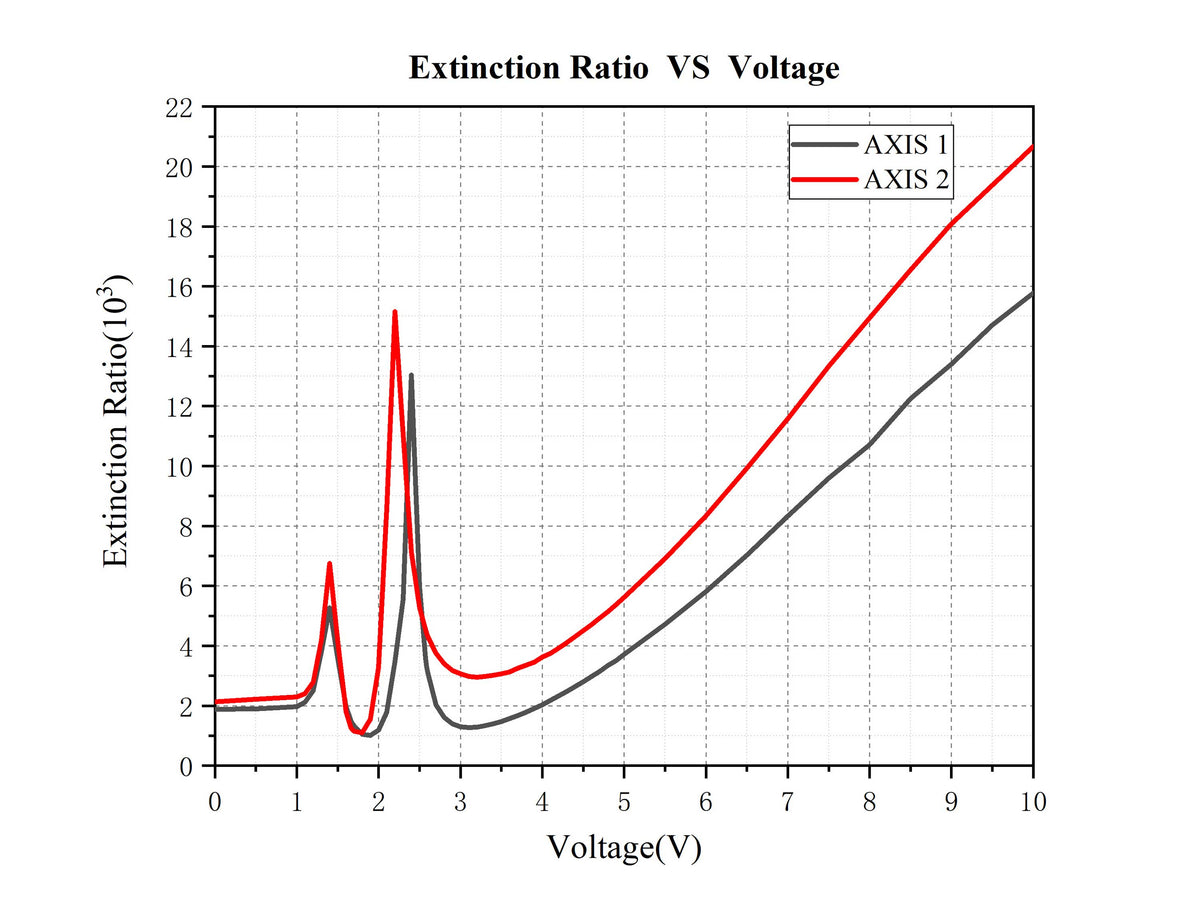

Curve 2

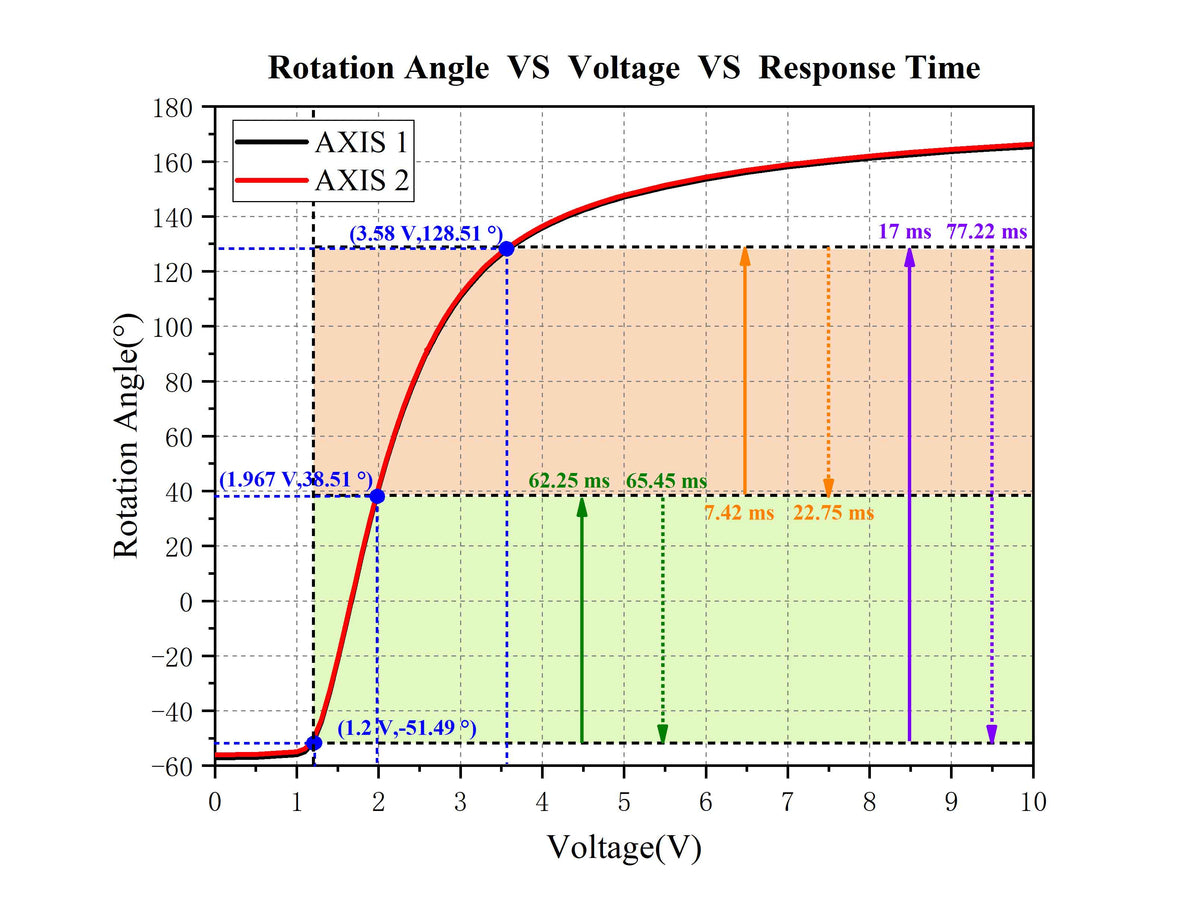

Curve - Rotation-Angle--VS--Voltage--VS--Response-Time

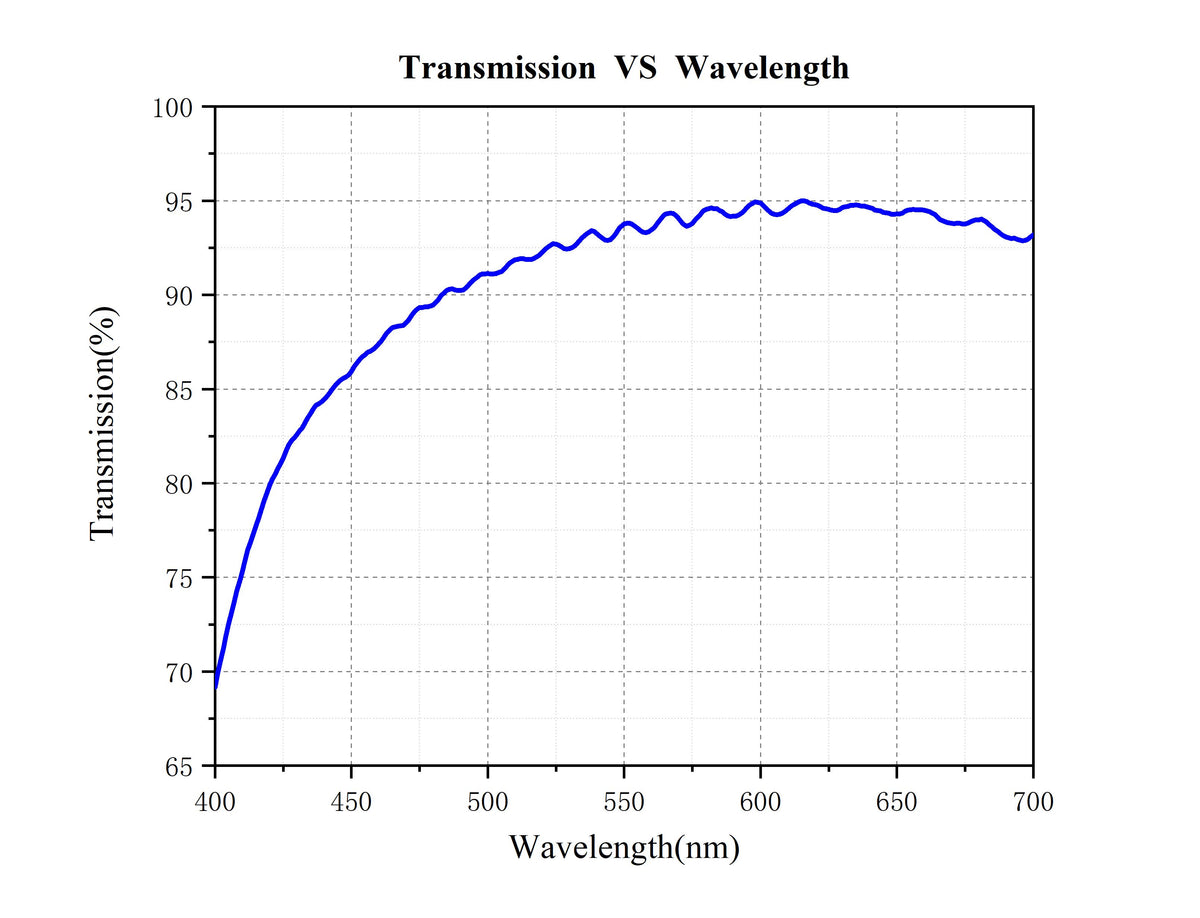

Curve - Transmission--VS--Wavelength
