Liquid Crystal Variable Retarders LCVR-H20C-C
LCVR-H20C-C$1,501.26
In Stock
Key Specifications
Wavelength
1100.0nm
Design Tools
Time-Bandwidth Product
Check if your pulse is transform-limited
Pulse Stretching & Compression
Calculate GVD, TOD, and pulse broadening
SHG Phase Matching
Calculate phase matching angles and efficiency
Wavelength ↔ Wavenumber
Convert between wavelength, frequency, and energy
View all 49 calculators →
Complete Your Setup
RoHS
REACH

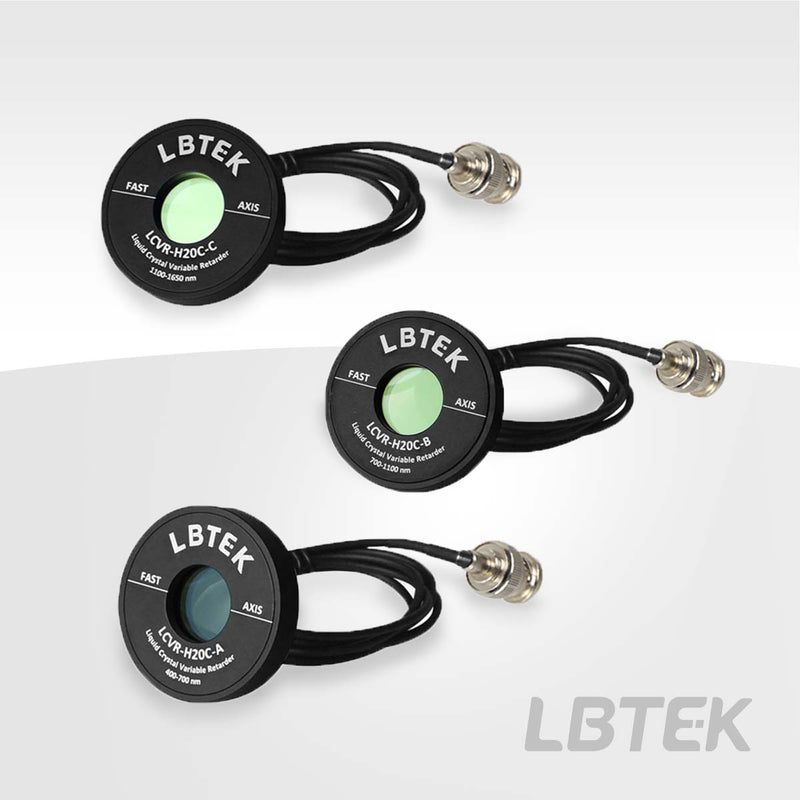

2-inch Liquid Crystal Variable Retarders, Half-Wave, with Compensation
The LBTEK 2-inch Half-Wave Compensated Liquid Crystal Variable Retarder is coated with corresponding anti-reflection coatings within the operating wavelength range of 400-700 nm, 700-1100 nm, or 1100-1650 nm. Under the control of an external AC voltage (DC voltage not allowed), it can achieve flexible adjustment of retardation between 0 nm and λ/2.
It features a clear aperture of Ø20 mm, mounted in a mechanical housing with attached wiring. The mechanical housing is compatible with Ø2-inch optical component mounts, and the fast axis direction of the liquid crystal variable retarder is clearly marked for convenient optical path alignment by users.
Key Features
- Coated with anti-reflection films of 400-700 nm, 700-1100 nm, or 1100-1650 nm
- Adjustable retardation from 0 nm to λ/2
- Clear aperture Ø20 mm
- Mechanical housings compatible with Ø2-inch optical component mounts
Typical Applications
- Polarization modulator
- Pure phase retarder
- Laser speckle suppression system
| Operating wavelength λ | 1100-1700 nm |
| AR Coating | 1100-1700 nm |
| Housing Specifications | Ø50.8×9 mm, compatible with Ø2-inch optical component mounts |
| Transmittance | >88 %@1100-1350 nm; >90 %@1350-1700 nm |
| Component Material | Nematic liquid crystal/ITO glass |
| Reflectivity | Ravg<0.5% (0° angle of incidence) |
| Clear Aperture | Ø20 mm |
| Transmitted Wavefront Error | <λ/4@633 nm |
| Surface Quality (Scratch/Dig) | 60/40 |
| Transmitted light deflection (without mechanical housing installed) | <3 arcmin |
| Operating Temperature | -20~45 °C |
| Transmitted light deflection (with mechanical housing installed) | <10 arcmin |
| Retardance | 0 nm-λ/2 |
| Response Time (Rise/Fall) | 40.7 ms/3.1 ms @25 °C |
| Delay Uniformity (RMS) | <λ/30 |
Retardance Curve Data: Retardance VS Voltage VS Wavelength-LCVR-H20C
Excel (.xlsx)
Retardance Curve Data: Retardance VS Voltage Over 12 Weeks (@635 nm, LCVR-H10-A for Example)
Excel (.xlsx)
Retardance Curve Data: Retardance VS Voltage VS Temperature
Excel (.xlsx)
Retardance Curve Data: Retardance at 3V Drive Voltage Over 12 Weeks (@635 nm, LCVR-H10-A for Example)
Excel (.xlsx)
Retardance Curve Data: Drive Voltage at Halfwave Retardance Over 12 Weeks (@635 nm, LCVR-H10-A for Example)
Excel (.xlsx)

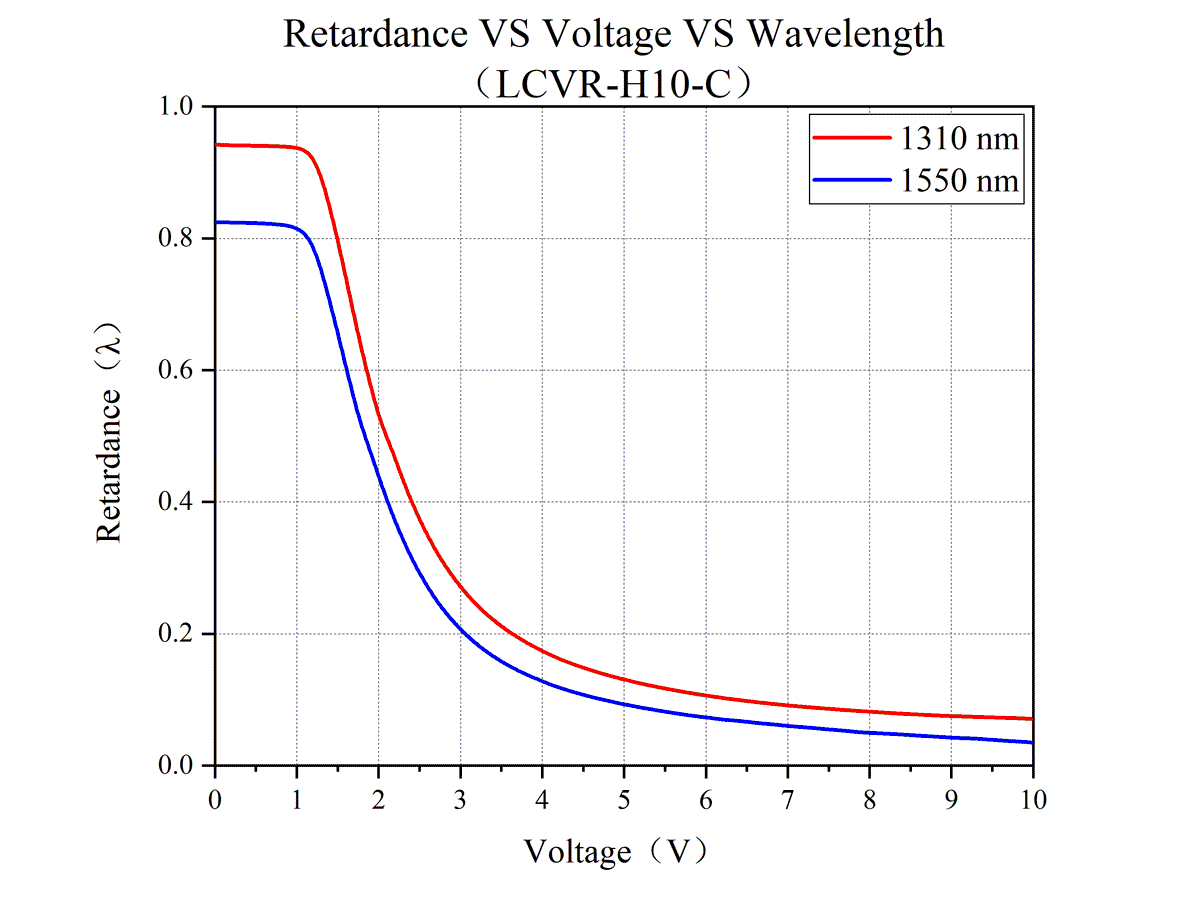

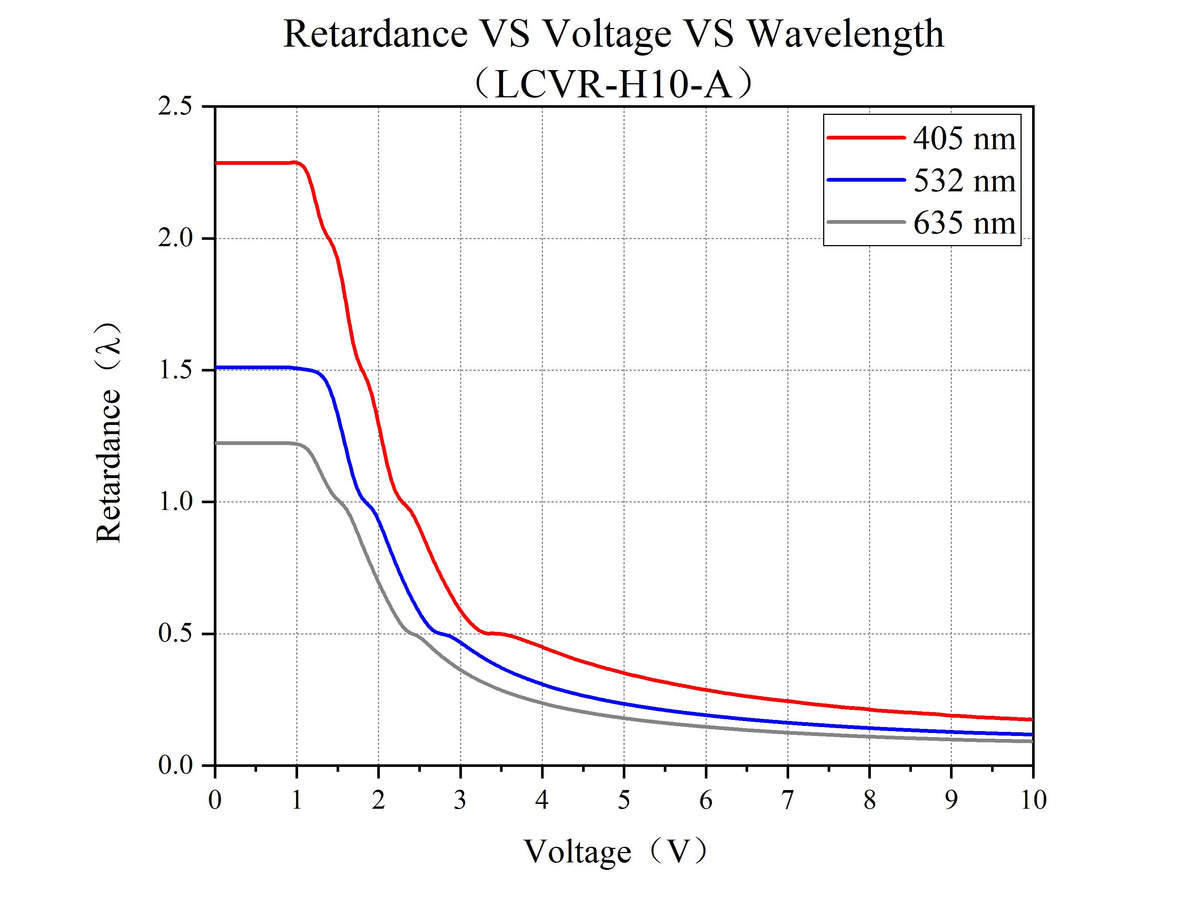

Curve - Retardance VS Voltage VS Wavelength (LCVR-H10-A)
Curve - Retardance VS Voltage VS Wavelength (LCVR-H10-B)
Curve - Retardance VS Voltage VS Wavelength (LCVR-H10-C)

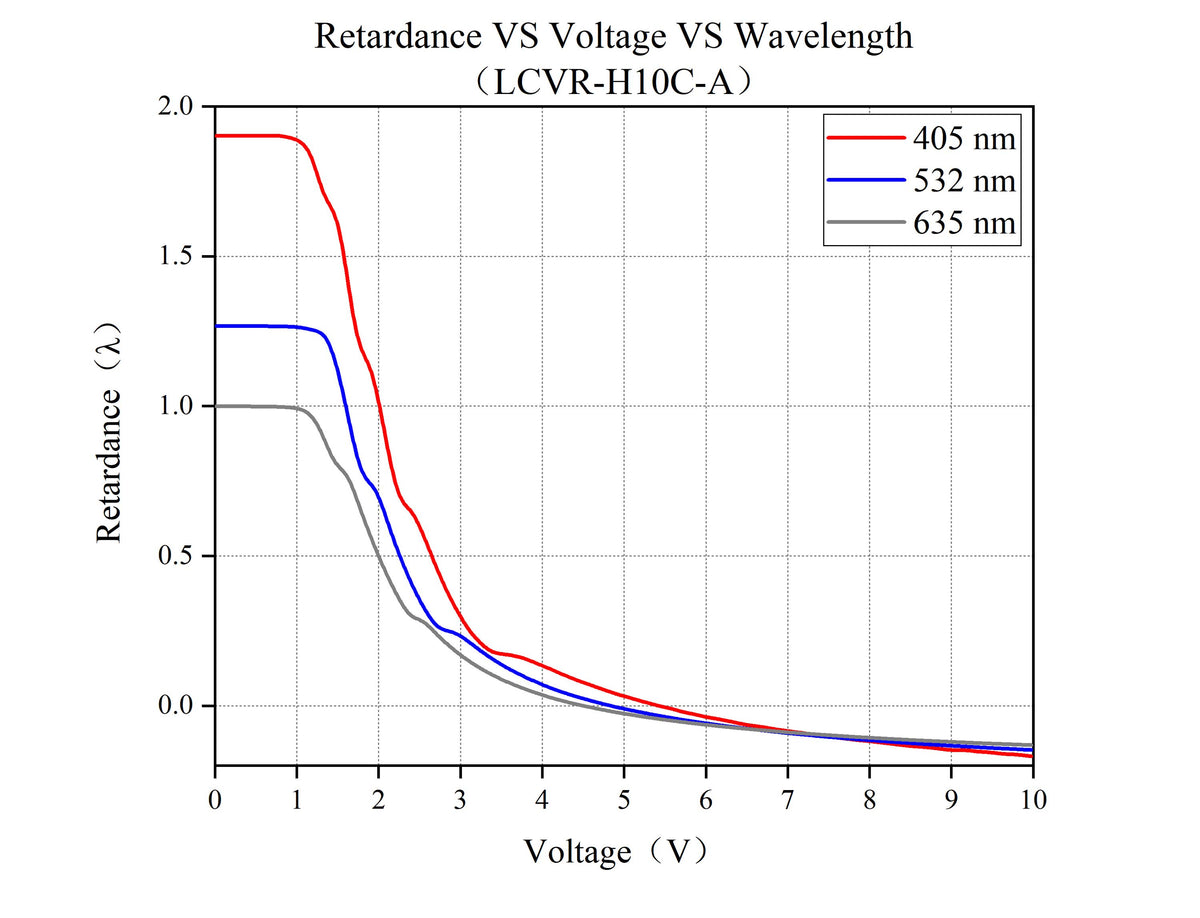

Curve - Retardance VS Voltage VS Wavelength (LCVR-H10C-A)

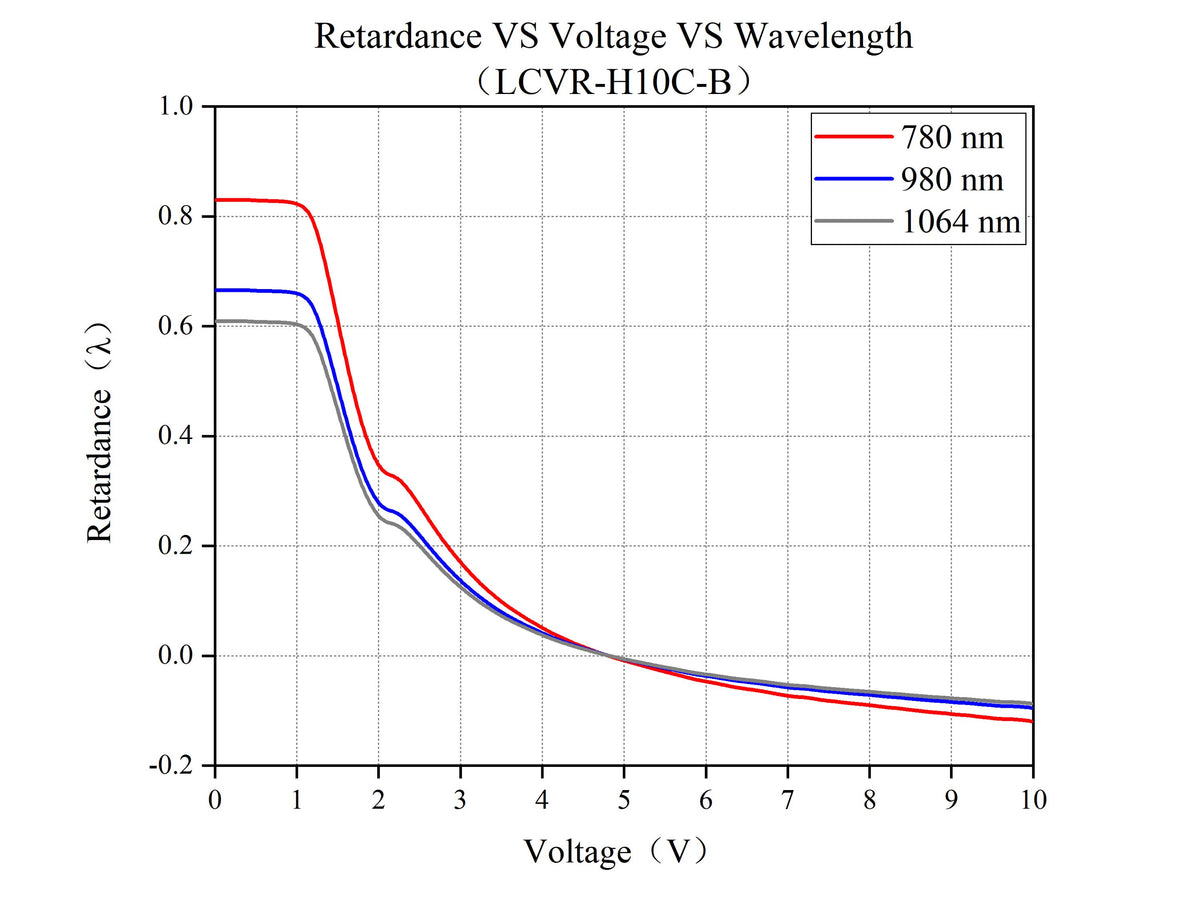

Curve - Retardance VS Voltage VS Wavelength (LCVR-H10C-B)

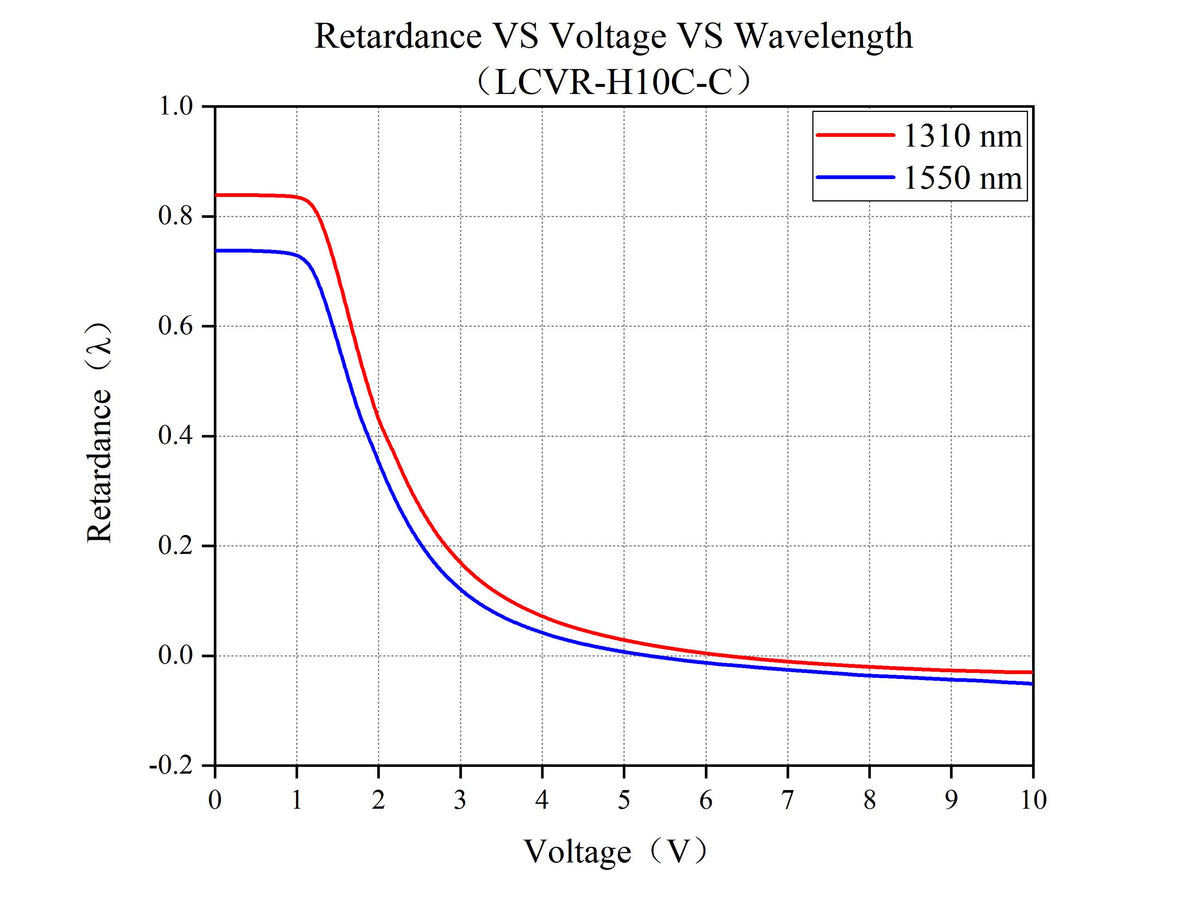

Curve - Retardance VS Voltage VS Wavelength (LCVR-H10C-C)

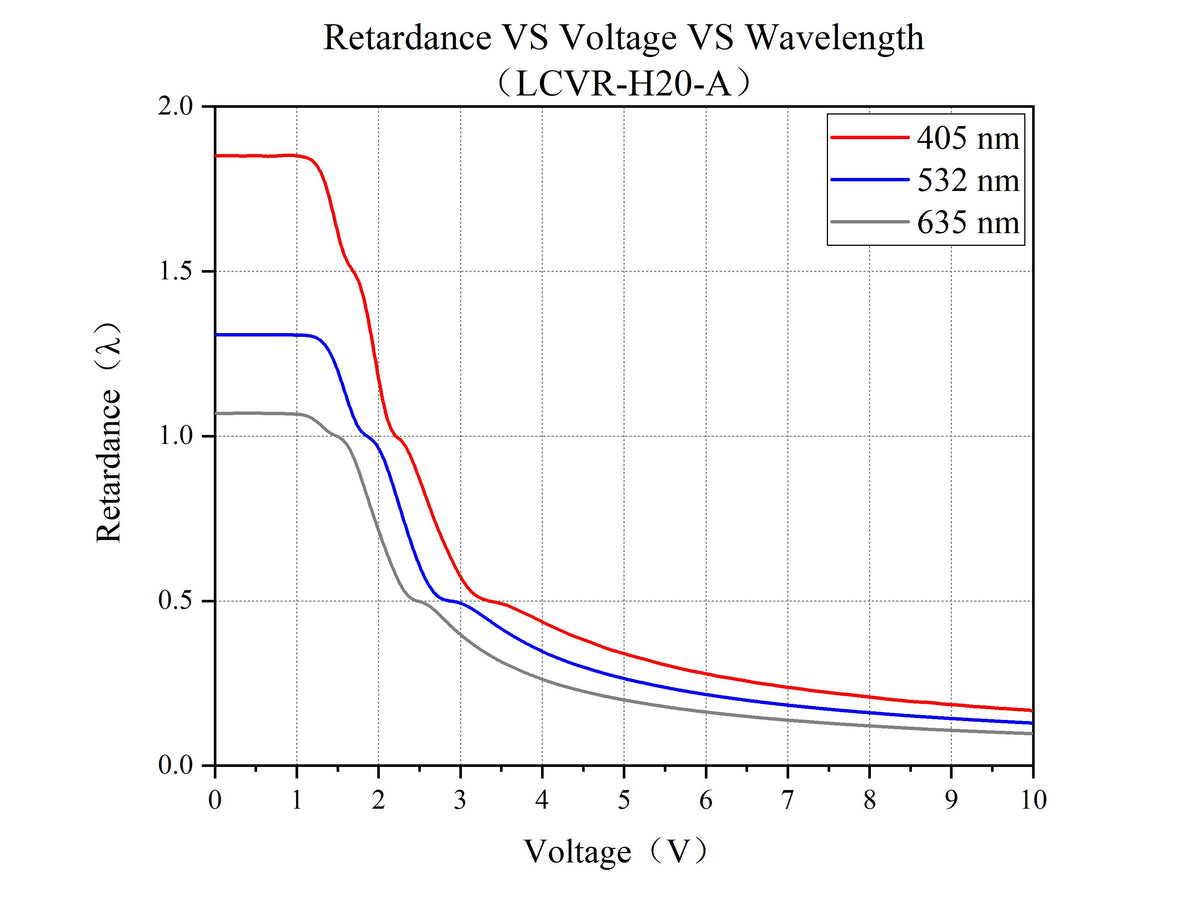

Curve - Retardance VS Voltage VS Wavelength (LCVR-H20-A)

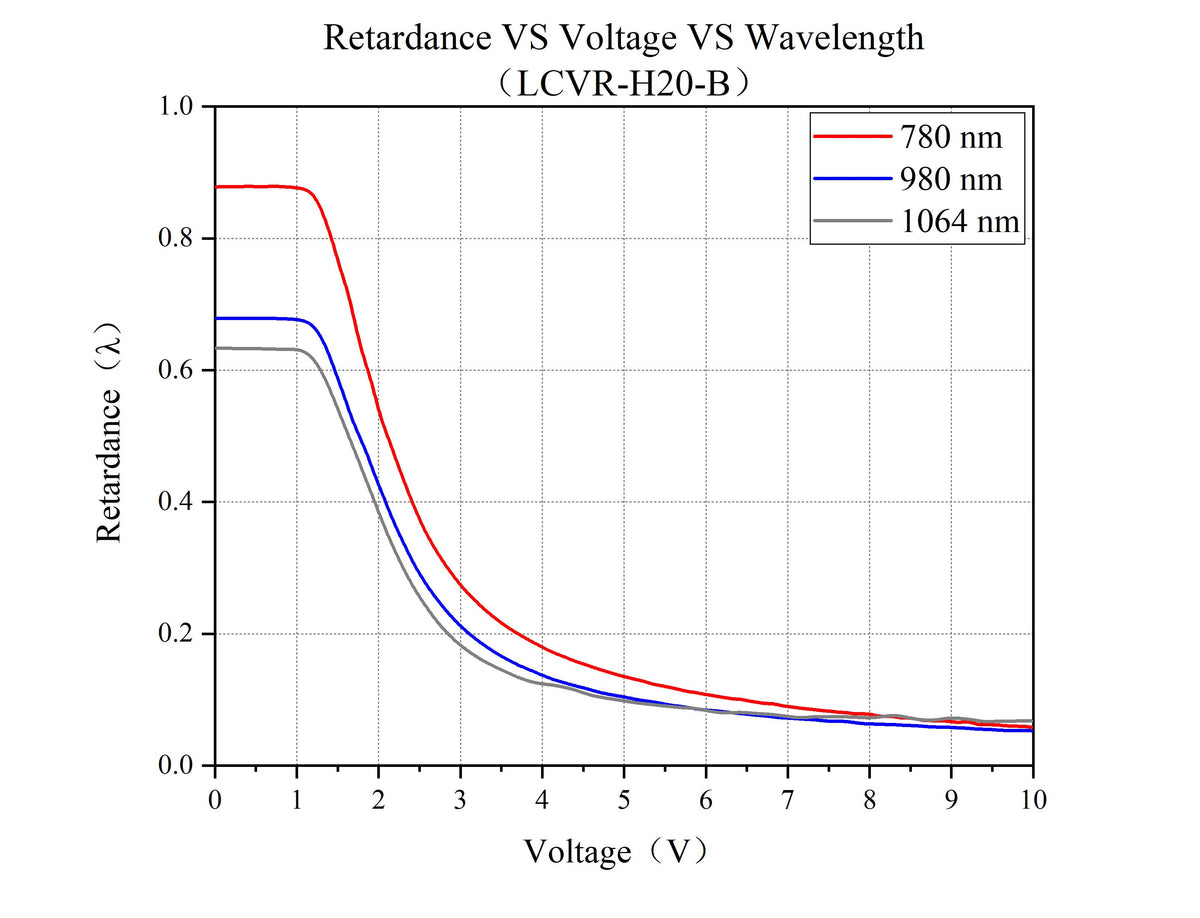

Curve - Retardance VS Voltage VS Wavelength (LCVR-H20-B)

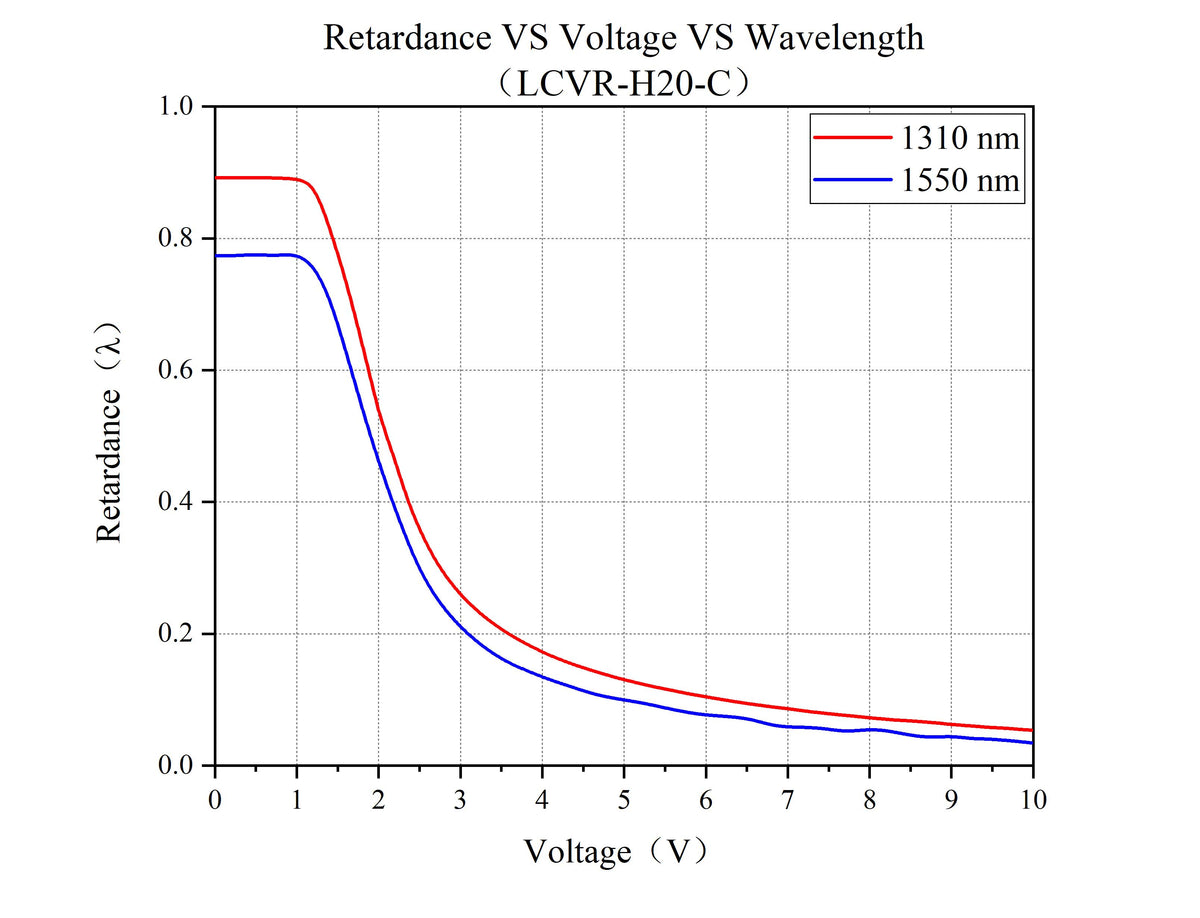

Curve - Retardance VS Voltage VS Wavelength (LCVR-H20-C)

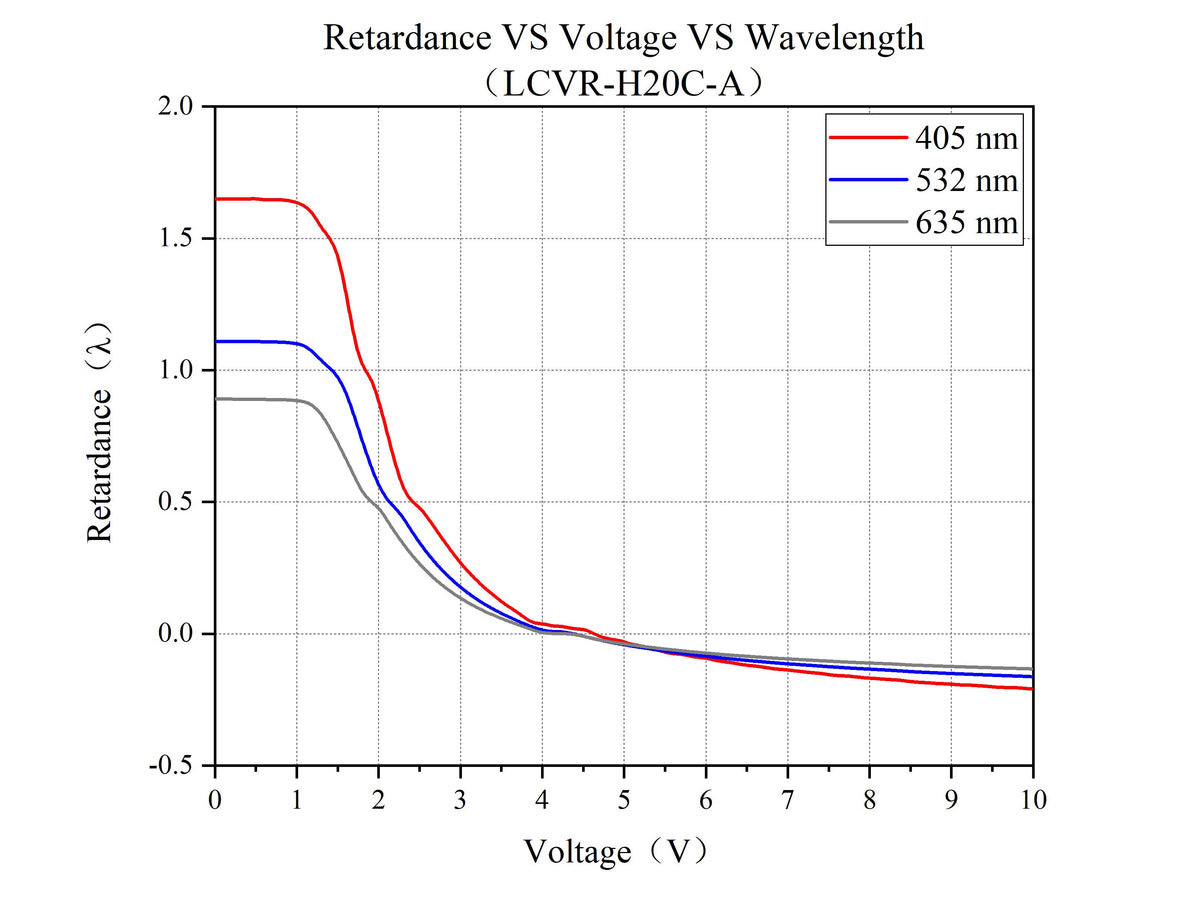

Curve - Retardance VS Voltage VS Wavelength (LCVR-H20C-A)

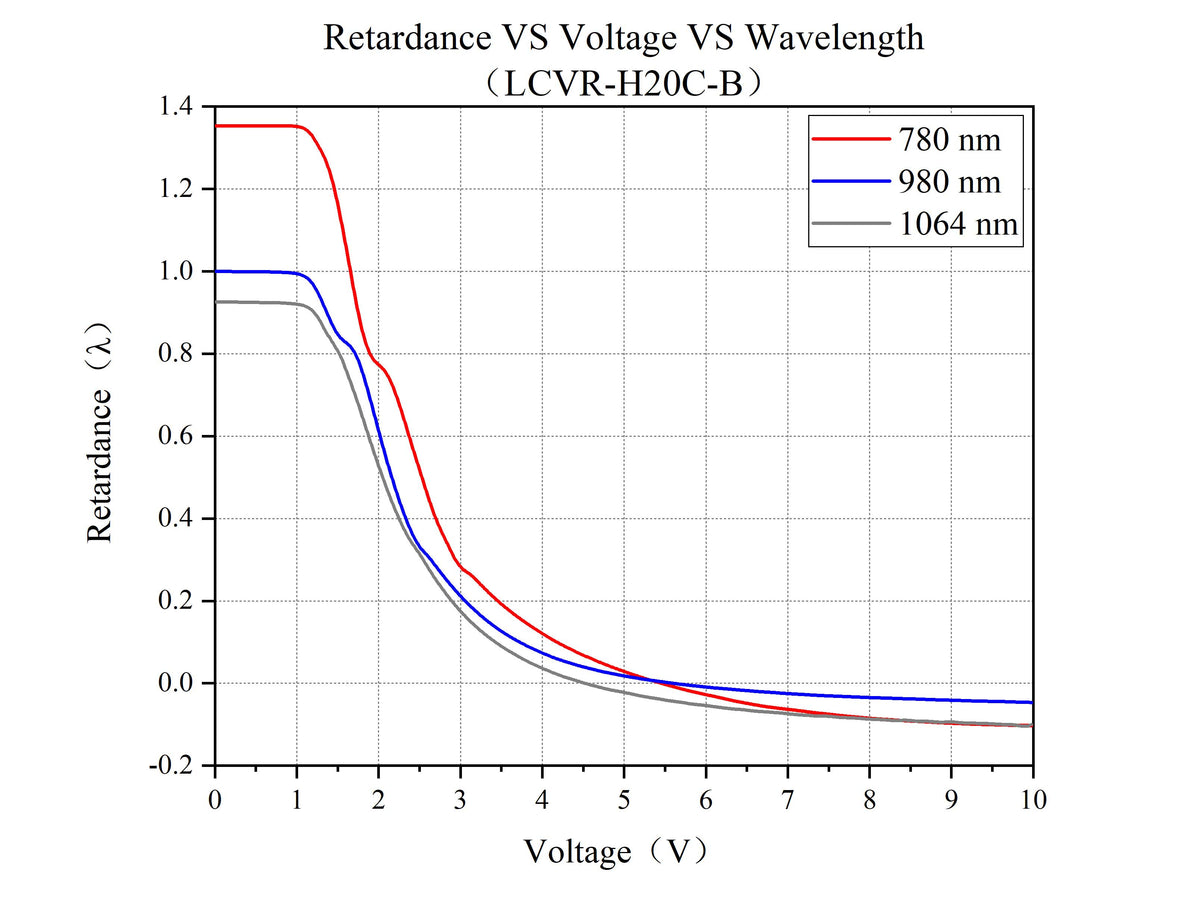

Curve - Retardance VS Voltage VS Wavelength (LCVR-H20C-B)

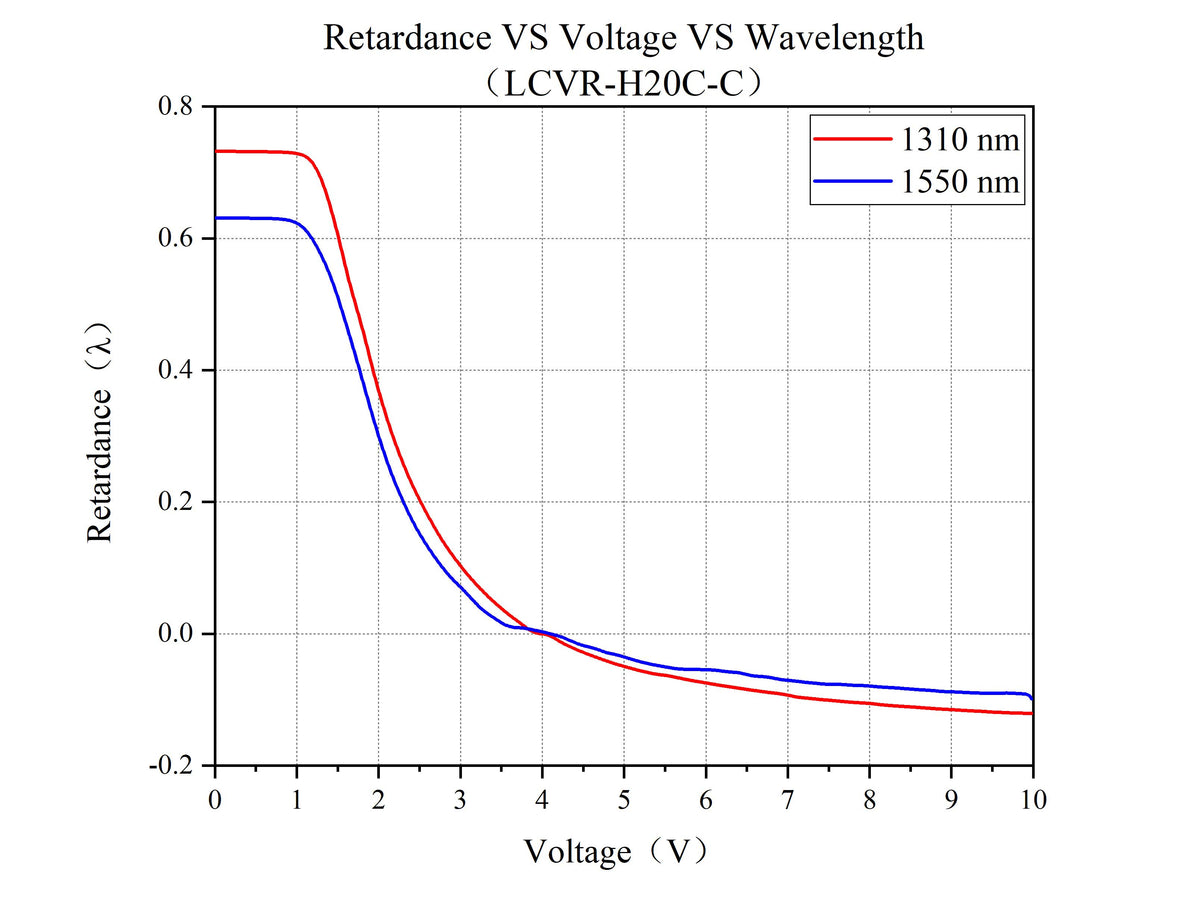

Curve - Retardance VS Voltage VS Wavelength (LCVR-H20C-C)
Curve - Retardance VS Voltage Over 12 Weeks (@635 nm, LCVR-H10-A for Example)
Curve - Retardance VS Voltage VS Temperature (@635 nm, LCVR-H10-A for Example)
Curve - Retardance at 3V Drive Voltage Over 12 Weeks (@635 nm, LCVR-H10-A for Example)

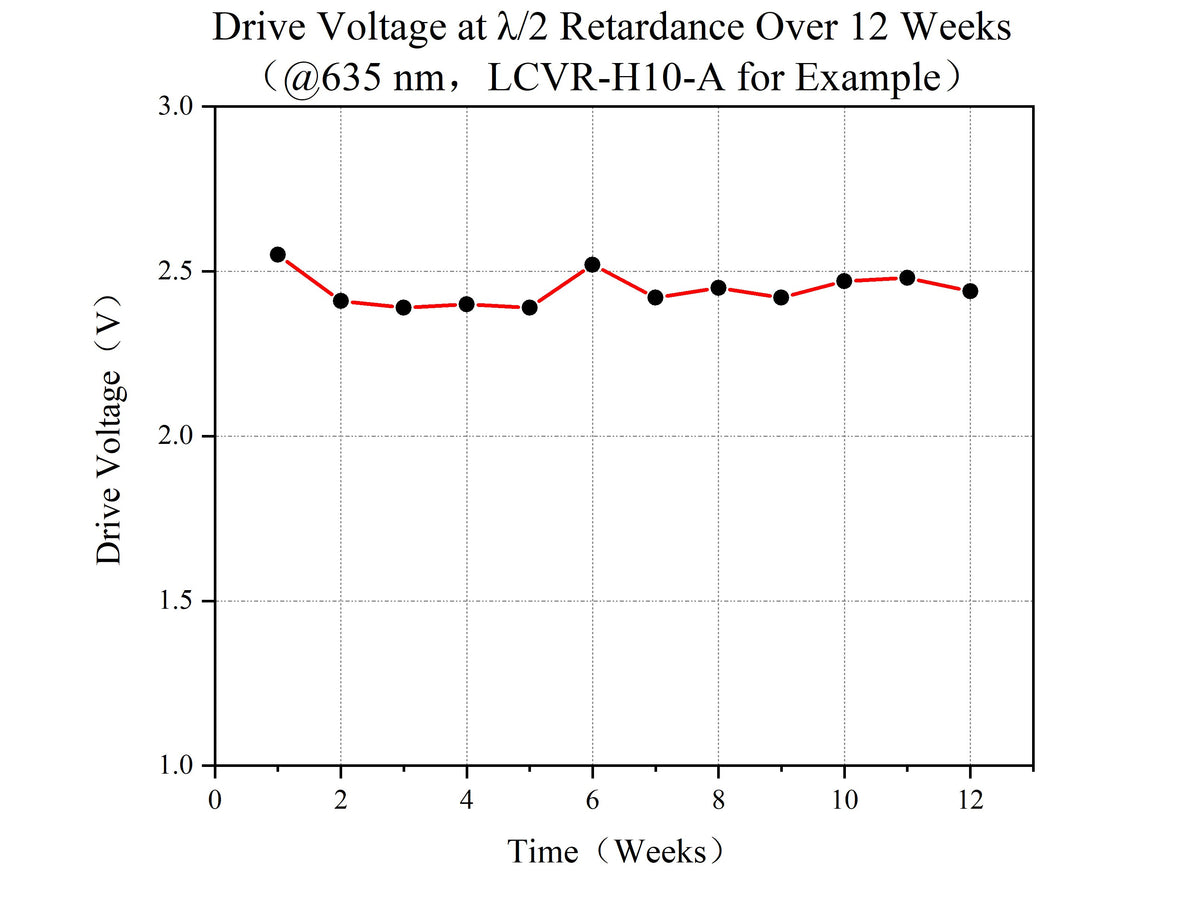

Curve - Drive Voltage at λ/2 Retardance Over 12 Weeks (@635 nm, LCVR-H10-A for Example)
Product Family: Liquid Crystal Variable Retarders (12 variants)
