Liquid Crystal Variable Retarders LCVR-H10C-A
LCVR-H10C-A$1,384.14
In Stock
Key Specifications
Wavelength
400.0nm
Reflectance
0.5%
Transmittance
400.0%
Design Tools
Time-Bandwidth Product
Check if your pulse is transform-limited
Pulse Stretching & Compression
Calculate GVD, TOD, and pulse broadening
SHG Phase Matching
Calculate phase matching angles and efficiency
Wavelength \u2194 Wavenumber
Convert between wavelength, frequency, and energy
View all 49 calculators →
Complete Your Setup
RoHS
REACH
1-inch Liquid Crystal Variable Retarders, Half-Wave, with Compensation
The LBTEK 1-inch Half-Wave Compensated Liquid Crystal Variable Retarders is coated with corresponding anti-reflection coatings for the opertaing wavelength range of 400-700 nm, 700-1100 nm, or 1100-1650 nm. Through the effect of the compensation plate, it can achieve flexible adjustment of the retardation from 0 to λ/2 under the control of an external AC voltage (DC voltage not allowed).

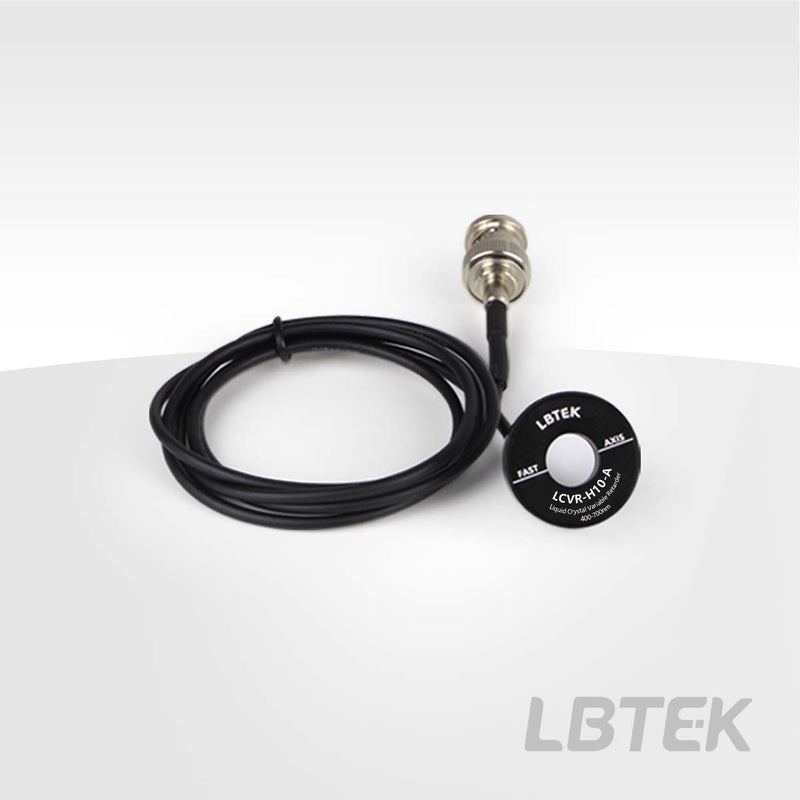

It features a clear aperture of Ø10 mm, mounted in a mechanical housing with attached wiring. The mechanical housing is compatible with Ø1-inch optical component mounts and is marked with the fast axis direction of the liquid crystal variable retarder for convenient optical path alignment by users.
Key Features
- Coated with anti-reflection film of 400-700 nm, 700-1100 nm, or 1100-1650 nm
- Retardation adjustable from 0 to λ/2
- Clear aperture Ø10 mm
- Mechanical housings compatible with Ø1 inch optical component mounts
Typical Applications
- Dynamic polarization state control and phase retardation tuning
- Polarimetry, ellipsometry, and Stokes-vector measurement
- Pump-probe and time-resolved spectroscopy
- Quantitative polarized-light microscopy
- Interferometry and optical metrology
- Liquid-crystal display and electro-optic device characterization
Product Family
LCVR-H10C-A is part of the WaveQuanta liquid-crystal variable retarder family, sourced from LBTEK and distributed by WaveQuanta with full datasheet, mechanical drawing, and 3D model support.
SKU: LCVR-H10C-A · Sourced from LBTEK · Distributed by WaveQuanta
| Operating Wavelength | 400-700 nm |
| Retardance | 0 nm-λ/2 |
| Retardance Uniformity (RMS) | <λ/100 |
| Response Time (Rise/Fall) | 15.5 ms/1.5 ms @25 ℃ |
| Transmittance | >70 %@400-425 nm; >85 %@425-500 nm; >90 %@500-700 nm |
| Clear Aperture | Ø10 mm |
| Housing Specification | Ø25.7×9 mm, compatible with Ø1-inch optical component mounts |
| Component Material | Nematic liquid crystal/ITO glass |
| Surface Quality (Scratch/Dig) | 60/40 |
| Transmitted Wavefront Error | <λ/4@633 nm |
| Reflectance | Ravg < 0.5% (0° angle of incidence) |
| Anti-Reflection Coating | 400-700 nm |
| Transmitted Beam Deviation (Without Housing) | <1 arcmin |
| Transmitted Beam Deviation (With Housing) | <10 arcmin |
| Operating Temperature | -20~45 ℃ |
CAD Drawing
Download
Click and drag to rotate. Scroll to zoom.
Curve 1
Curve 2

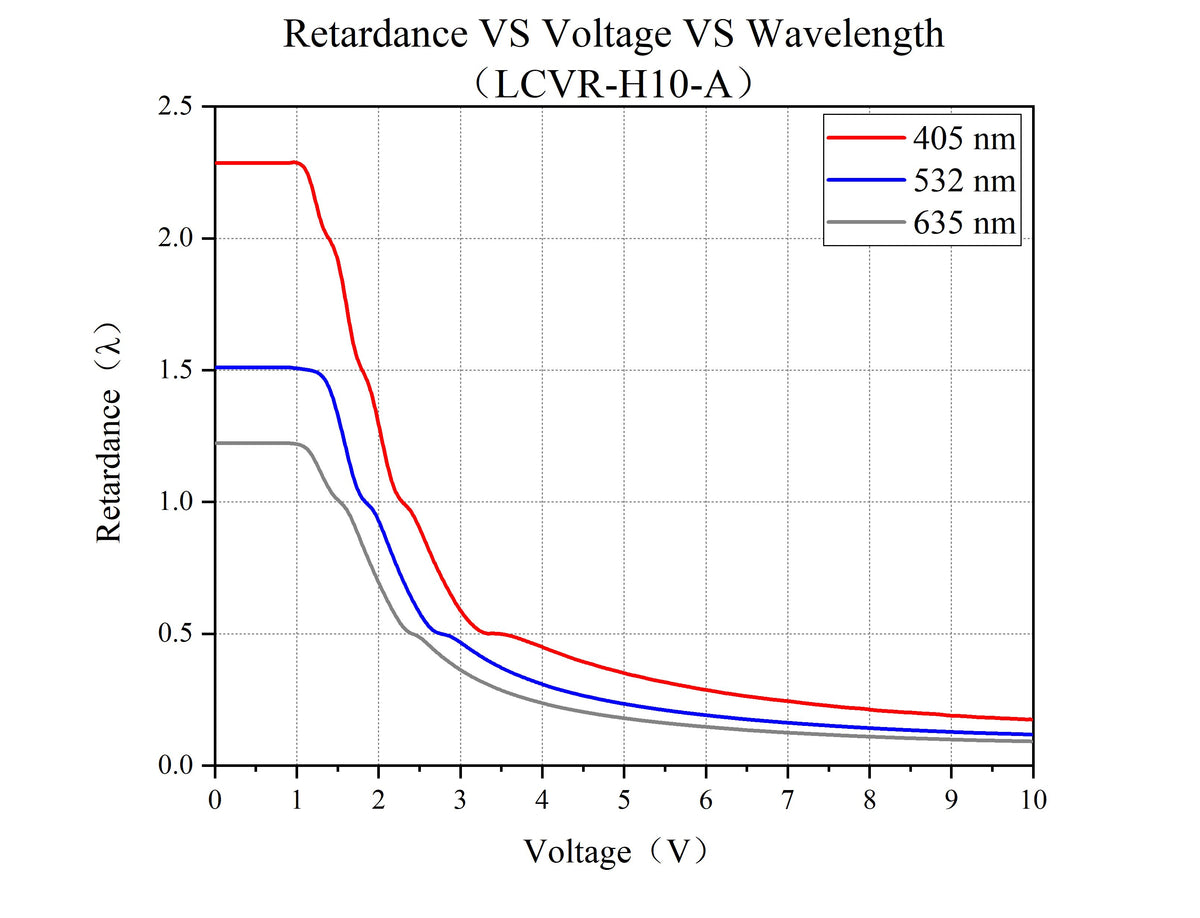

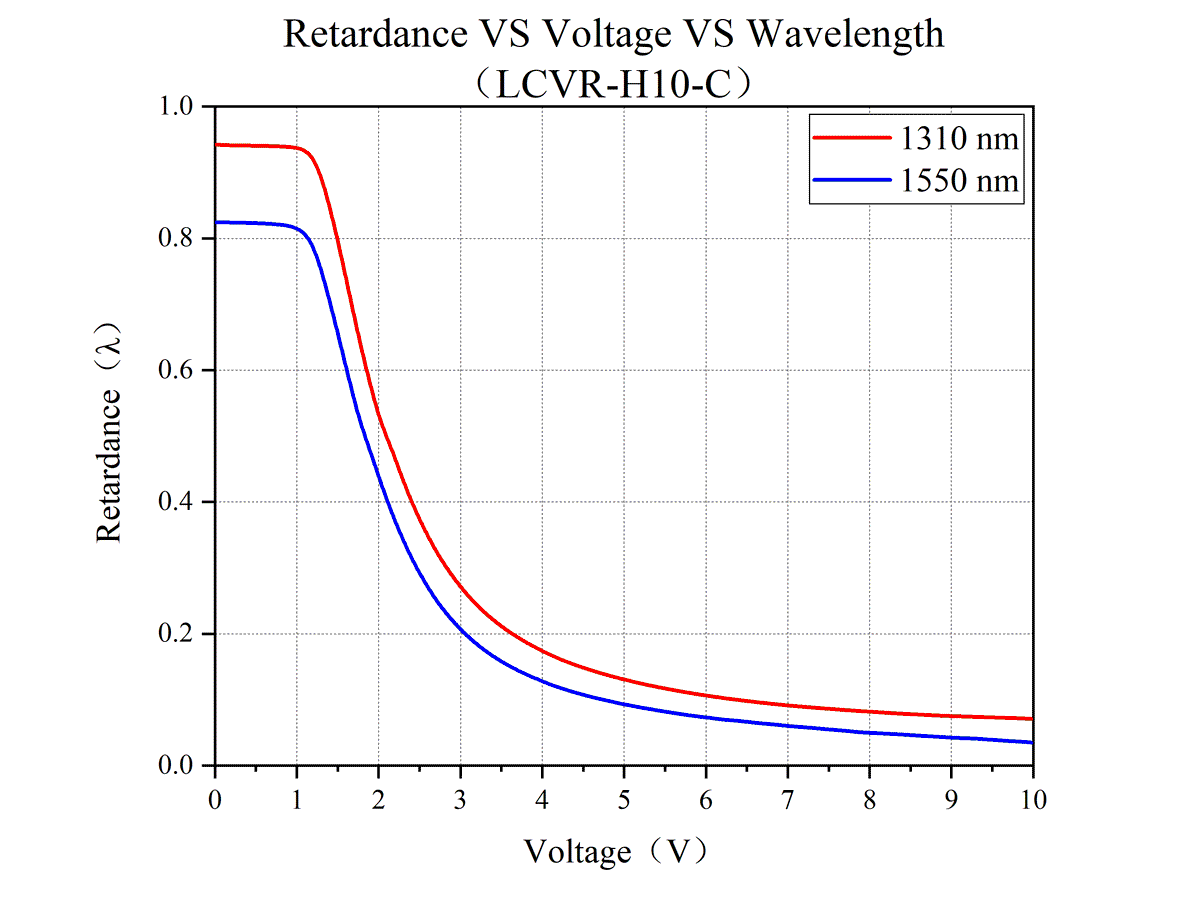

Curve - Retardance-VS-Voltage-VS-Wavelength（LCVR-H10-C）.gif

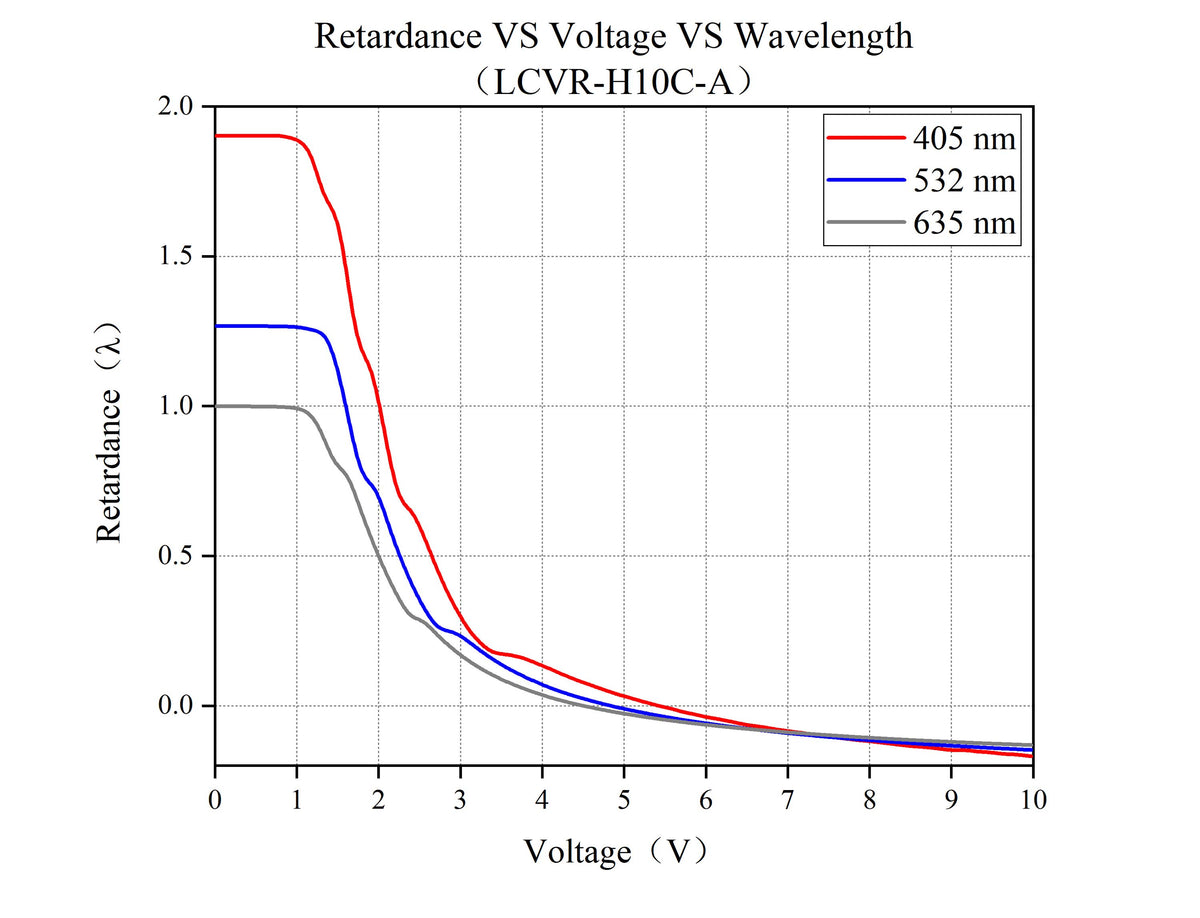

Curve - Retardance VS Voltage VS Wavelength（LCVR-H10C-A）

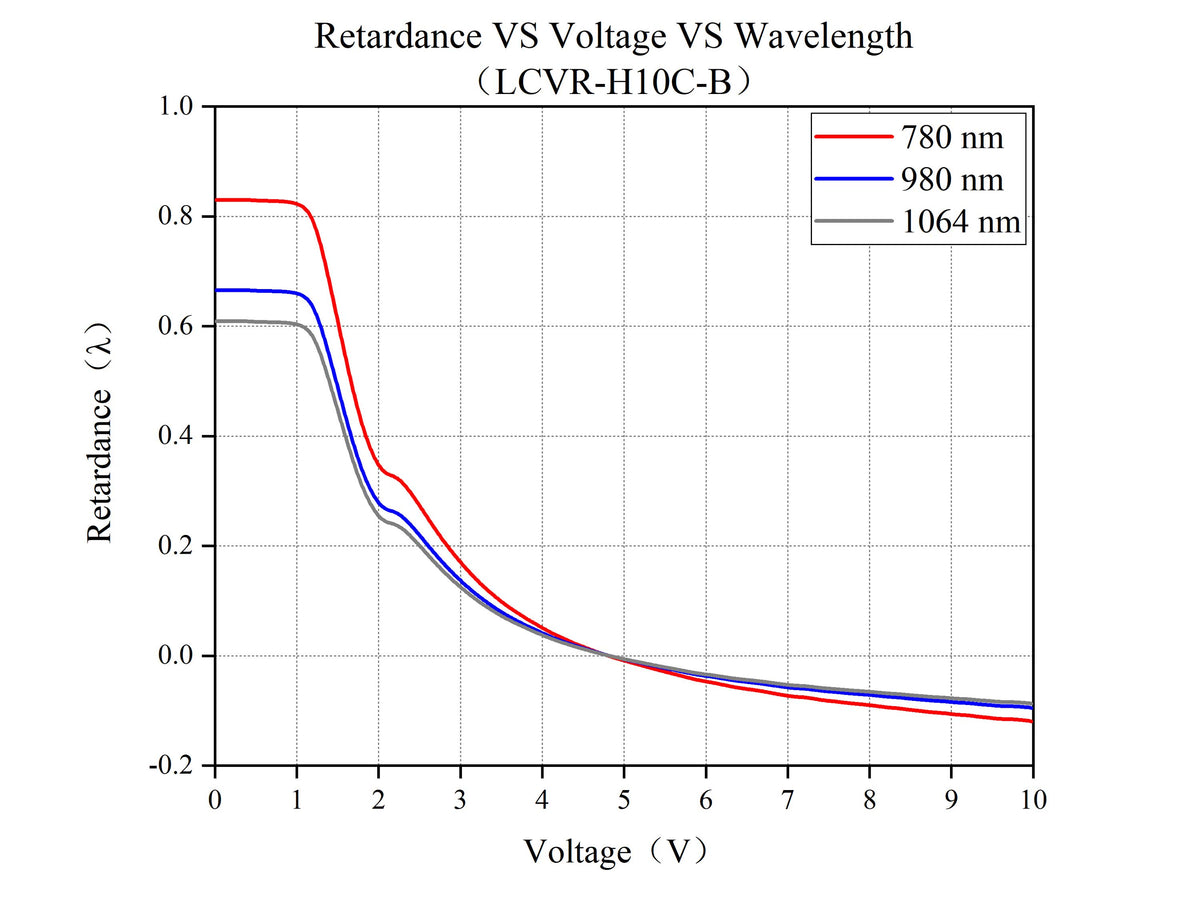

Curve - Retardance VS Voltage VS Wavelength（LCVR-H10C-B）

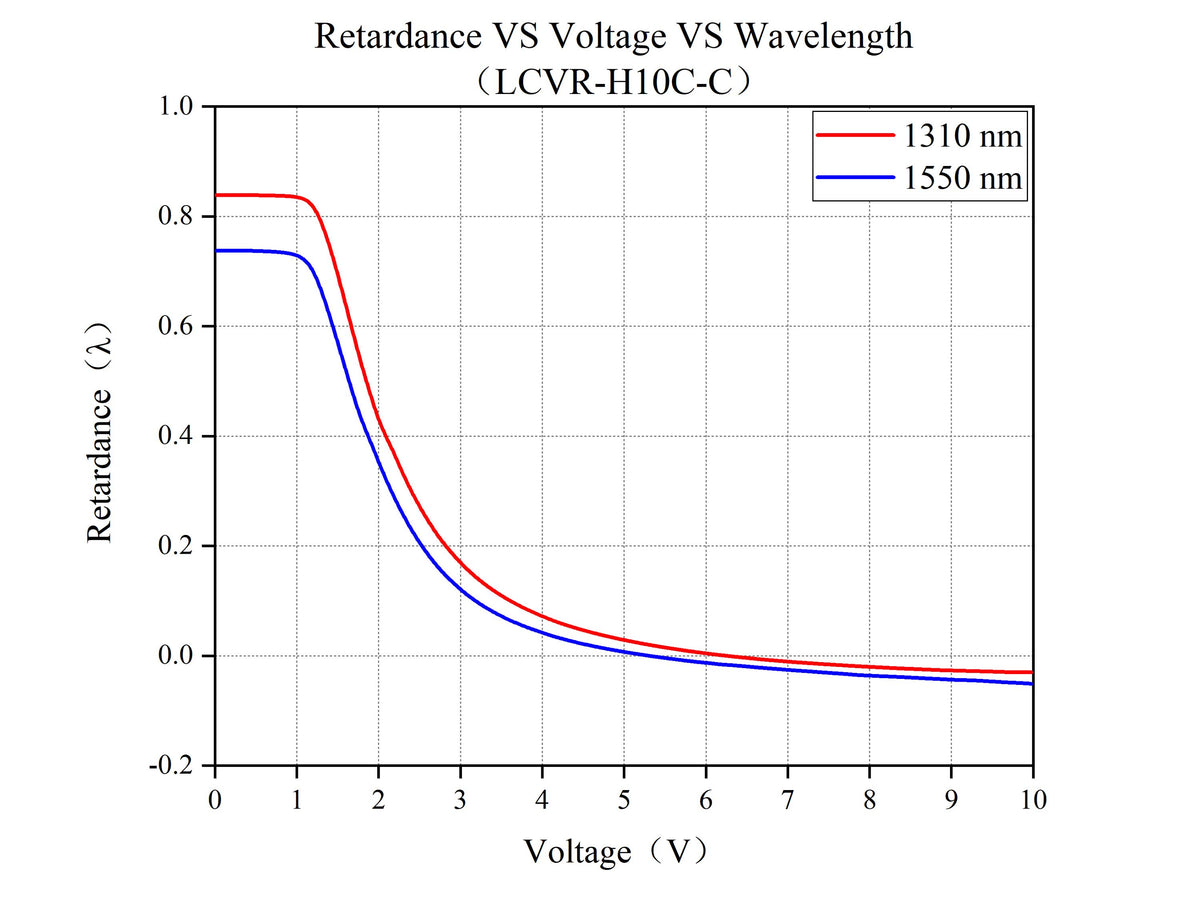

Curve 6

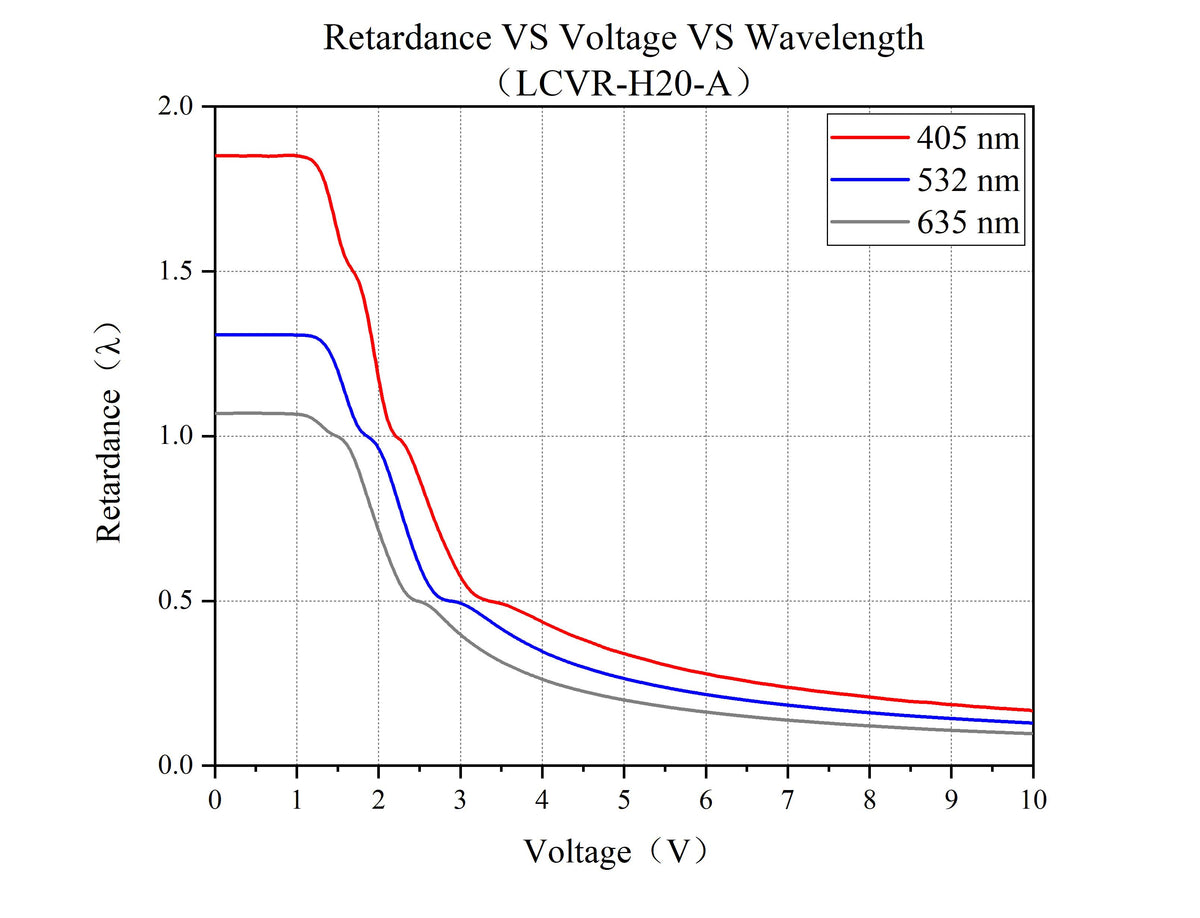

Curve - LCVR-H20--A

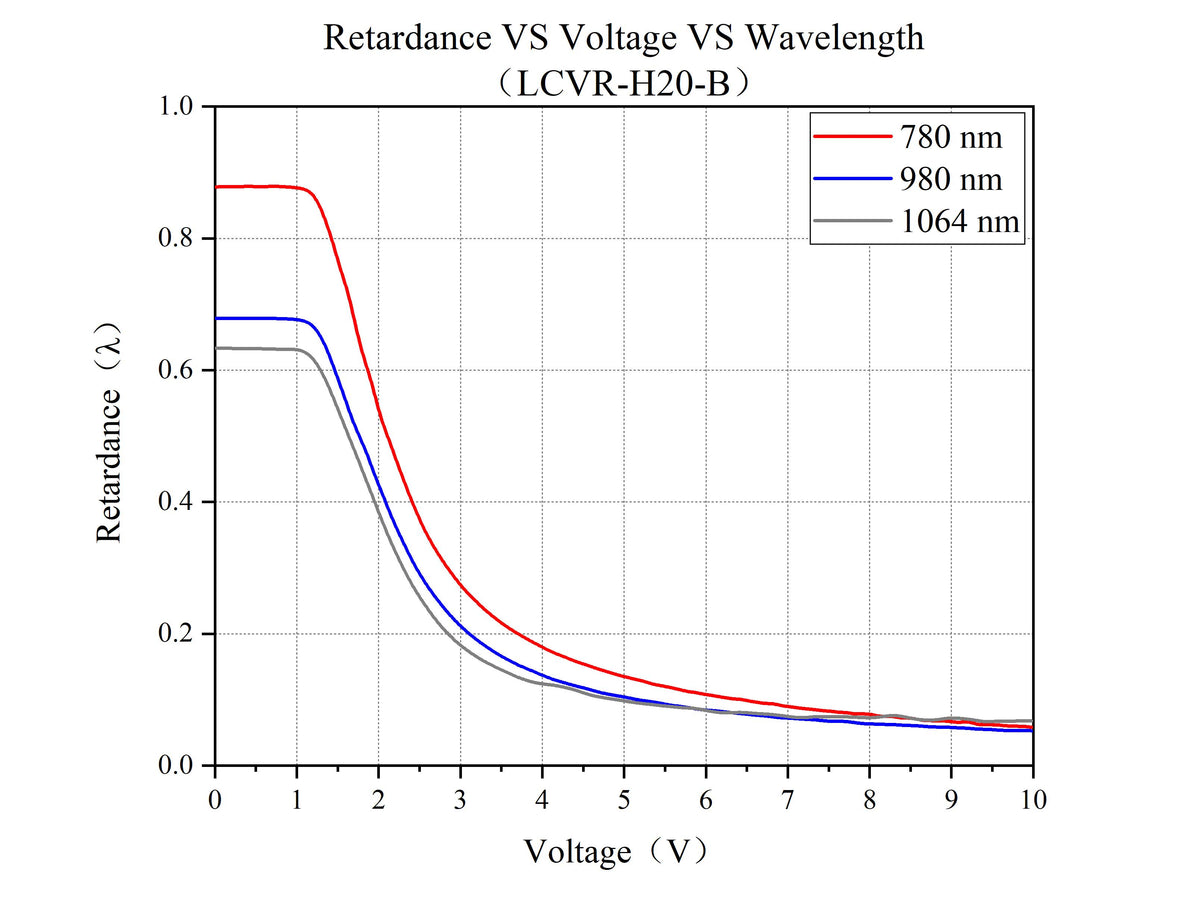

Curve - LCVR-H20--B

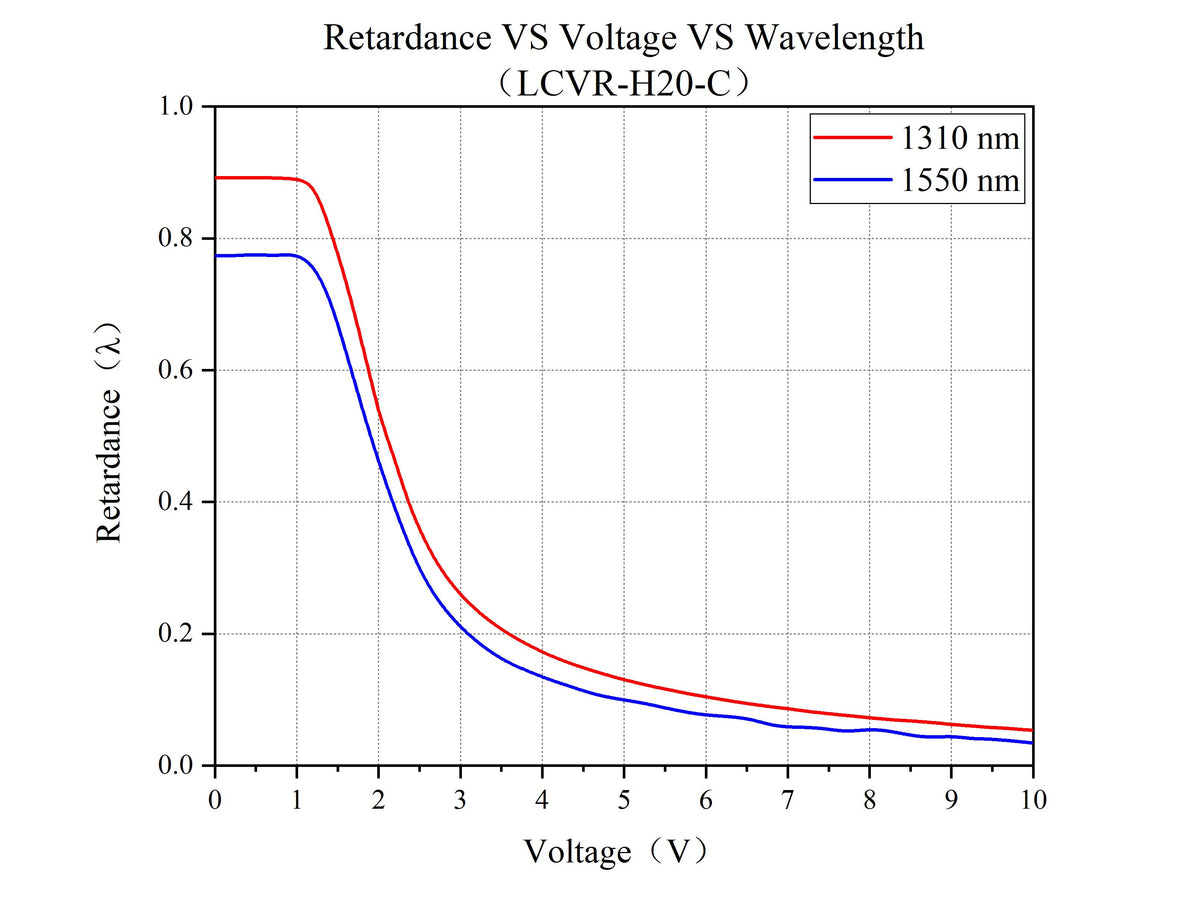

Curve - LCVR-H20--C

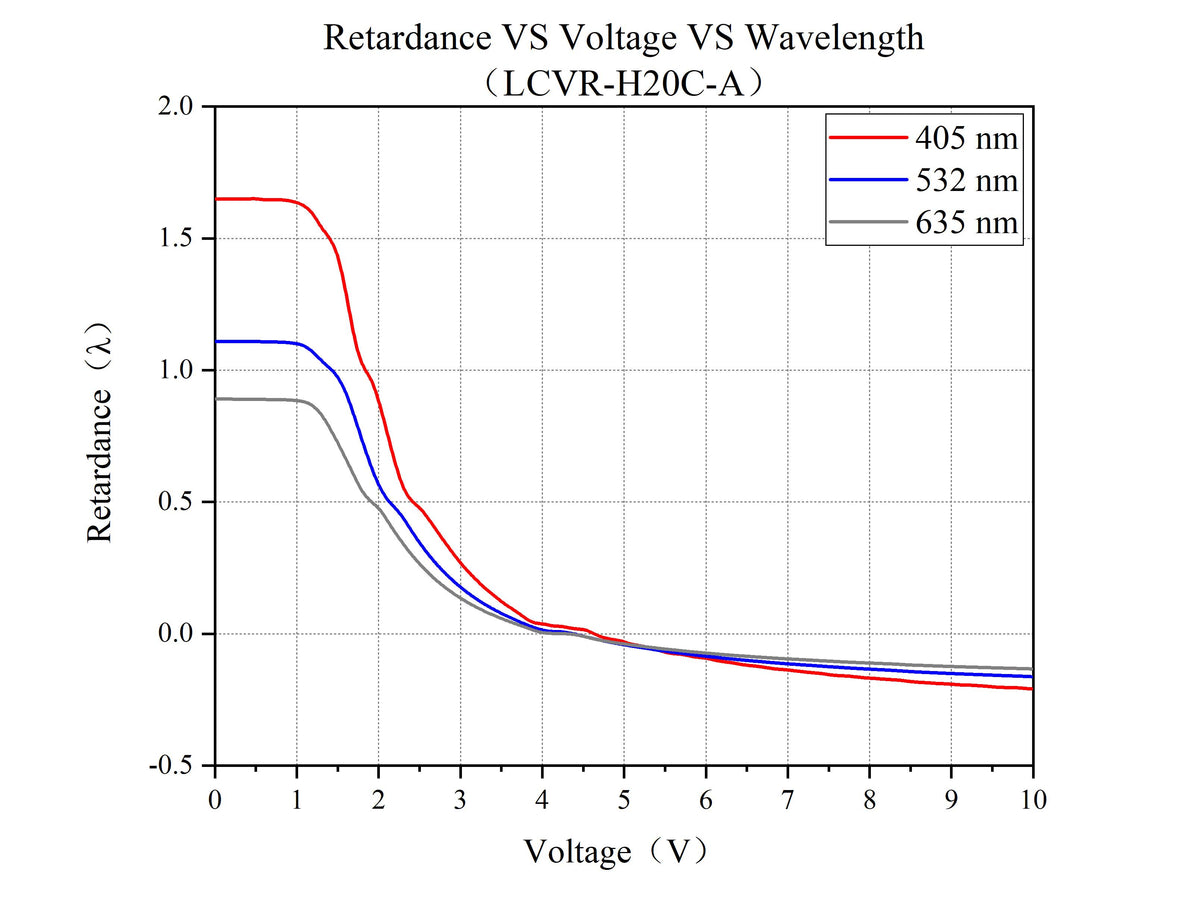

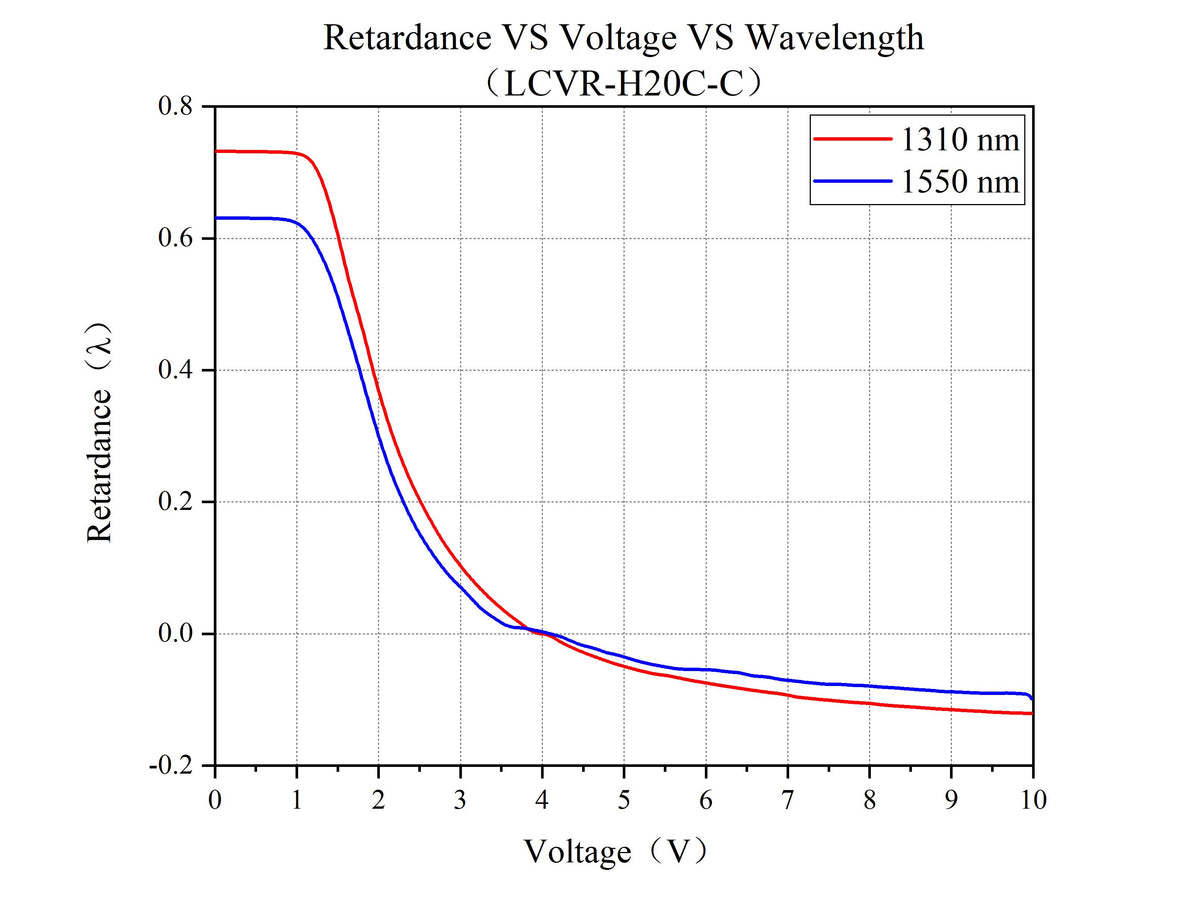

Curve - LCVR-H20C--A

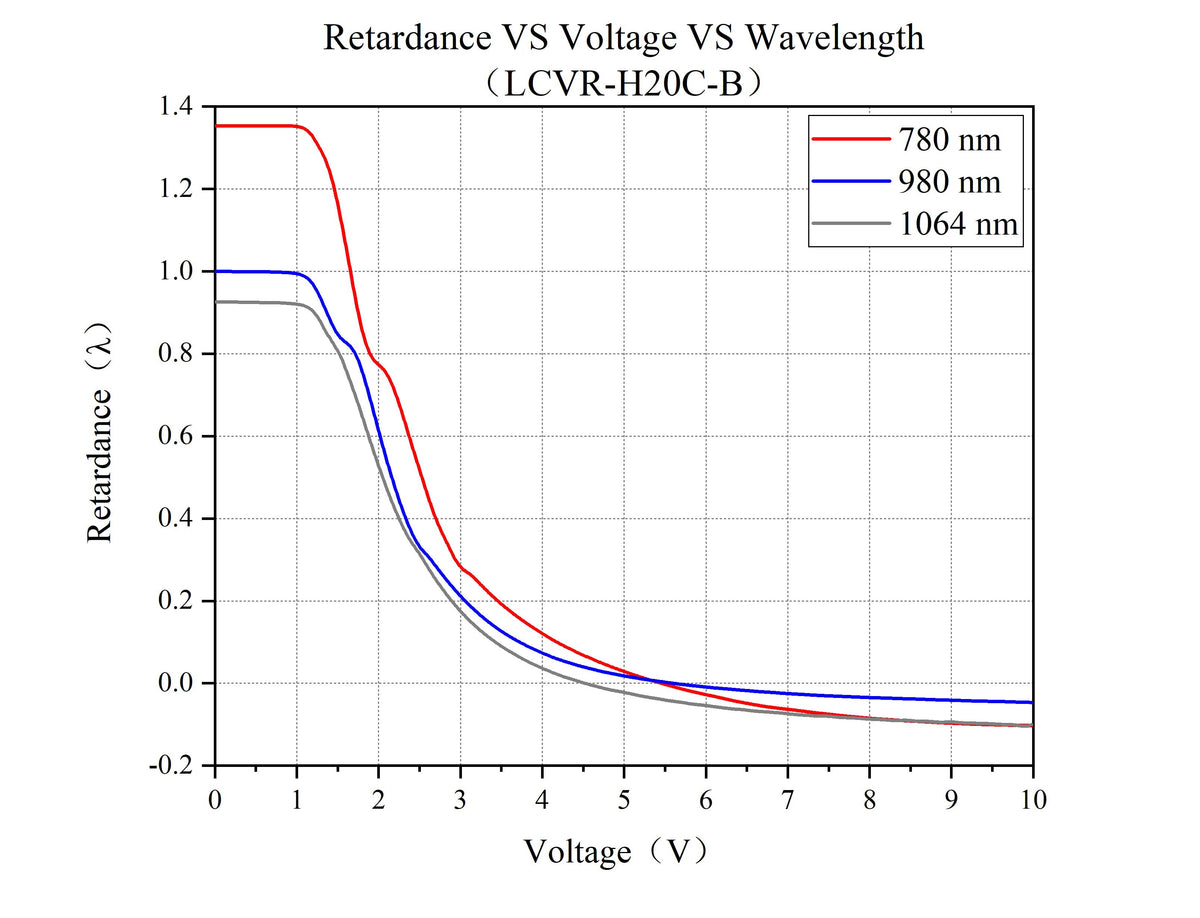

Curve - LCVR-H20C--B
Curve - LCVR-H20C--C
Curve 13
Curve - Retardance-VS-Voltage-VS-Temperature
Curve 15

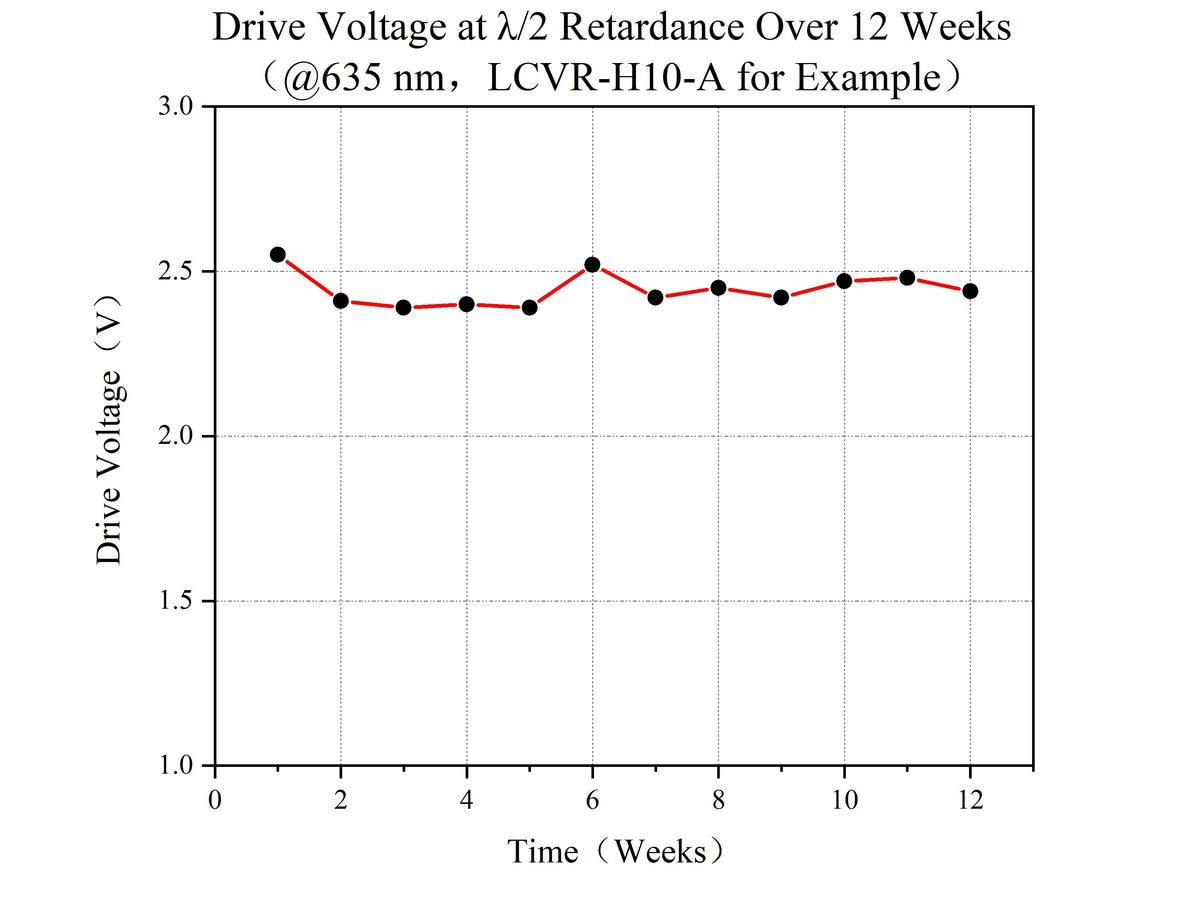

Curve 16
