Manual adjustable delay line LBODL-100
LBODL-100Contact for pricing
In Stock
Key Specifications
Contact Sales
Wavelength
1550.0nm
Design Tools
View all 49 calculators →Complete Your Setup
RoHS
REACH

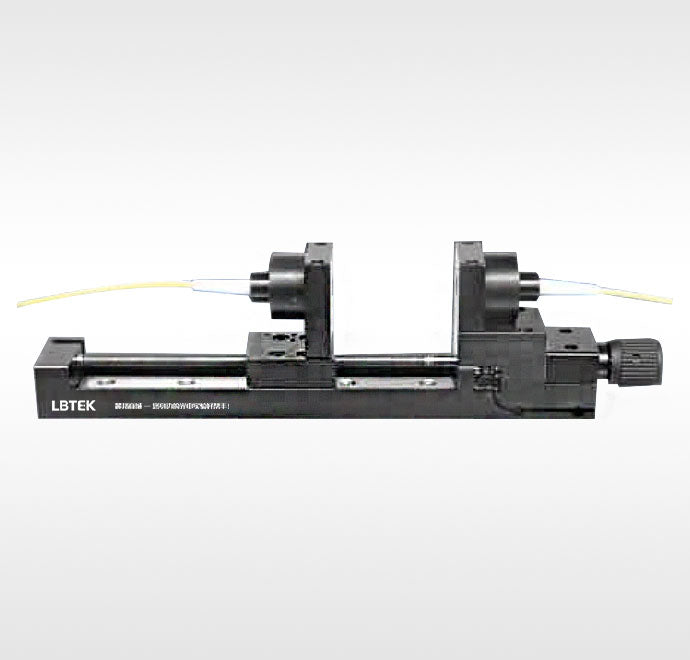

The LBTEK Manual Adjustable Optical Delay Line (Single Pass) is a device that precisely controls the delay time by altering the length of the delay path between the input and output optical ports. It uses air as the optical transmission delay medium, and the delay distance between the input and output optical ports is manually adjusted via a motion mechanism (i.e., a lead screw guide rail). The device features input and output ports each equipped with a 1 m single-mode fiber pigtail and FC/APC connectors. The manual adjustment range of the lead screw guide rail is 100 mm.
- Operating Wavelength: 1550 nm
- Manually Adjustable Delay Range: 100 mm
- Low Insertion Loss, High Return Loss
| Center Wavelength | 1550.0 nm |
| Insertion Loss | 60.0 dB |
| Length | 1.0 mm |
| Connector Type | FC/APC |
No documents available for this product.
No CAD drawings available for this product.
Product Family: Fiber Optical Delay Lines (2 variants)
| Product | SKU | Size | Clear Aperture | Operating Wavelength | |
|---|---|---|---|---|---|
| Manual adjustable delay line LBODL-600 |
LBODL-600
| — | — | — | Contact |
| Manual adjustable delay line LBODL-100 Current |
LBODL-100
| — | — | — |
