Manual adjustable delay line LBODL-600
LBODL-600Contact for pricing
In Stock
Key Specifications
Contact Sales
Wavelength
1550.0nm
Design Tools
View all 49 calculators →Complete Your Setup
RoHS
REACH

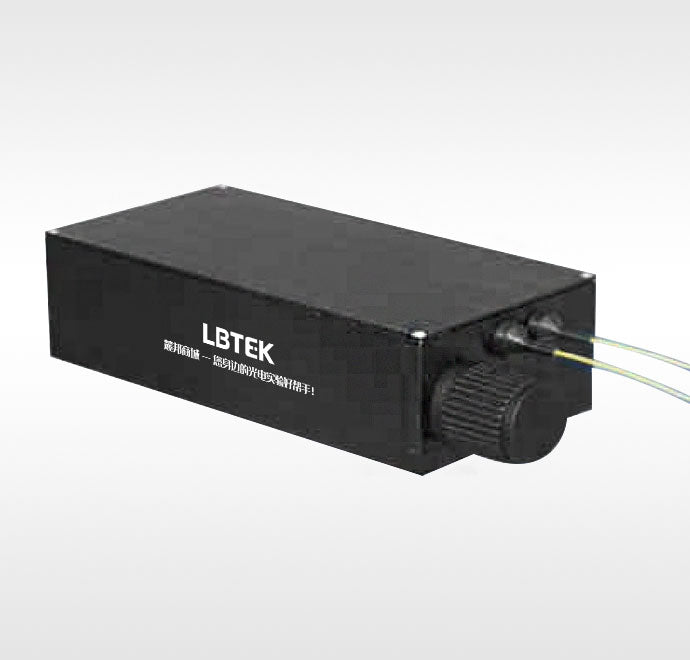

The LBTEK manual adjustable optical delay line (double-pass) is a device that precisely controls the delay time by altering the length of the delay path of the movable mirror. It uses air as the optical transmission delay medium, and the delay displacement of the movable mirror is manually adjusted via a motion mechanism (i.e., a lead screw guide rail). The device features input and output ports each equipped with a 1 m single-mode fiber pigtail and FC/APC connectors. The manual adjustment range of the lead screw guide rail is 25 mm, providing a delay range of 50 mm.
- Operating Wavelength: 1550 nm
- Manually Adjustable Delay Range: 50 mm
- Low Insertion Loss, High Return Loss
| Center Wavelength | 1550.0 nm |
| Insertion Loss | 60.0 dB |
| Length | 1.0 mm |
| Connector Type | FC/APC |
No documents available for this product.
No CAD drawings available for this product.
Product Family: Fiber Optical Delay Lines (2 variants)
| Product | SKU | Size | Clear Aperture | Operating Wavelength | |
|---|---|---|---|---|---|
| Manual adjustable delay line LBODL-600 Current |
LBODL-600
| — | — | — | |
| Manual adjustable delay line LBODL-100 |
LBODL-100
| — | — | — | Contact |
