Manual Rotary Translation Stage RAM30
RAM30$166.62
In Stock
Design Tools
Photonics Calculators
Explore 49 free online calculators for photonics design
Unit Converters
Convert between wavelength, frequency, power, and more
View all 49 calculators →
RoHS
REACH
The Manual Rotary Translation Stage RAM30 from WaveQuanta is a high-performance Stages Actuators designed for micrometer-precision optical alignment and positioning. Available from stock for immediate shipment. Sourced directly from WaveQuanta, this product meets the high standards required for scientific research and precision photonics applications.
✔ In Stock — Ships Today

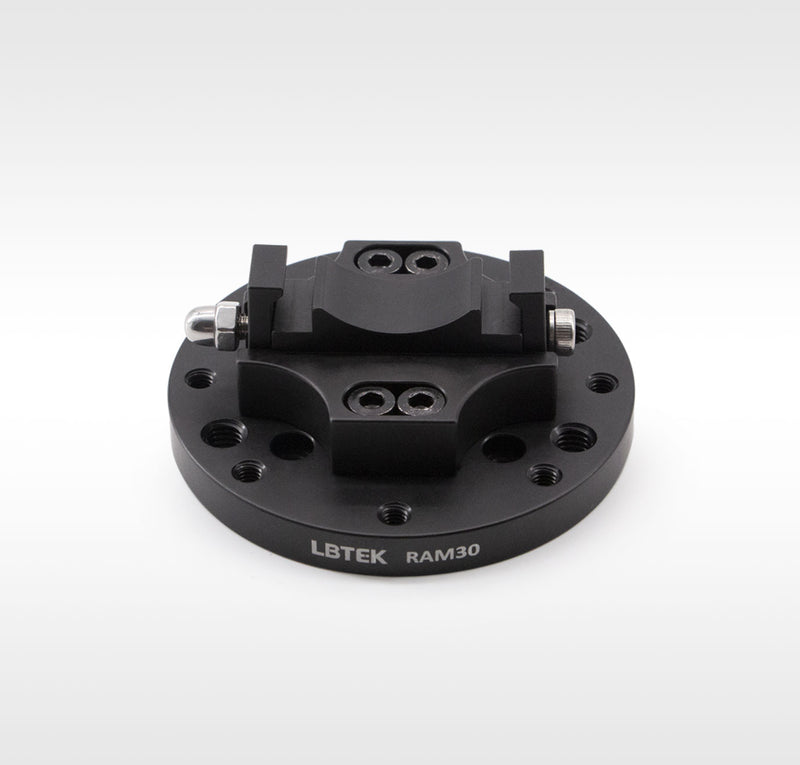

The 30mm coaxial system rotary adapter from LBTEK connects 30mm coaxial structures to the RP-1A rotary translation stage, enabling precise cage system alignment via the micrometer head of stage. This adapter secures to the RP-1A with four M3 socket head cap screws while its single-screw clamping mechanism simultaneously grips dual 30mm coaxial cage rods. Pre-assembled coaxial systems mount directly onto the adapter's clamp-type components without disassembly. The purchase comes with M3 socket head cap screws.
Key Features
- For 360° continuous rotation with 30 mm coaxial systems;
- Adapter-enabled transfer of preassembled 30 mm coaxial system components to rotary translation stage RP-1A;
- Single-screw clamping mechanism;
- M3 socket head cap screw ×4;
Application
The coaxial system mounts to rotary translation stage RP-1A using RAM30.
| Lead Time | In Stock |
No CAD drawings available for this product.
Product Family: Manual Rotary Translation Stage (8 variants)
| Product | SKU | Size | Clear Aperture | Operating Wavelength | |
|---|---|---|---|---|---|
| Micro Dovetail Translation Stage RP-3B |
RP-3B
| — | — | — | View |
| Manual Rotary Translation Stage RP-1B |
RP-1B
| — | — | — | View |
| Manual Rotary Translation Stage RAM30 Current |
RAM30
| — | — | — | |
| Manual Rotary Translation Stage RP-1A-AP |
RP-1A-AP
| — | — | — | View |
| Manual Rotary Translation Stage RP-1A |
RP-1A
| — | — | — | View |
| Manual Rotary Translation Stage RP-1A-KIT |
RP-1A-KIT
| — | — | — | View |
| Manual Rotary Translation Stage RP-3B |
RP-3B
| — | — | — | View |
| Manual Rotary Translation Stage RP-2B |
RP-2B
| — | — | — | View |
