Manual Rotary Translation Stage RP-3B
RP-3B$153.38
In Stock
Design Tools
Photonics Calculators
Explore 49 free online calculators for photonics design
Unit Converters
Convert between wavelength, frequency, power, and more
View all 49 calculators →
RoHS
REACH
The Manual Rotary Translation Stage RP-3B from WaveQuanta is a high-performance Stages Actuators designed for micrometer-precision optical alignment and positioning. Available from stock for immediate shipment. Sourced directly from WaveQuanta, this product meets the high standards required for scientific research and precision photonics applications.
✔ In Stock — Ships Today

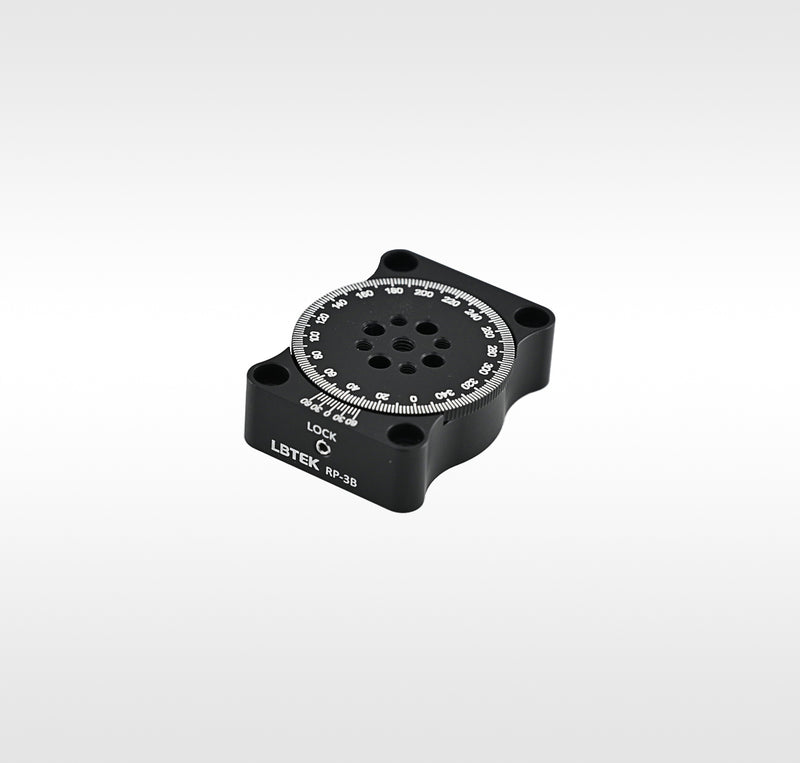

The RP-3B manual mini series rotary translation stage from LBTEK features a Ø1.4 inch rotary stage. The displacement stage achieves 360°continuous rotation, with the outer circumference of stage graduated at 2° intervals with difference graduation lines to achieve an accuracy of 10′. Locking is controlled by a lateral rubber-tipped screw. The rotating platform surface includes four M3 tapped holes, one M4 tapped hole, and four M3 countersunk holes. The base contains four M3 countersunk holes for mounting micro dovetail translation stages. The side contains one M3 mounting hole enabling vertical installation of the translation stage.
Key Features
- 360° continuous rotation;
- The scale lines on the side of the rotating disk have an accuracy of 2°, with difference scale lines accurate to 10′;
- Platform tapped holes: M4 (1 piece), M3 (4 pieces), M3 countersunk mounting holes (4 pieces);
- Four M3 through-holes for mounting to optical tables or breadboards;
Application
The micro dovetail translation stage is mounted on a manual rotary translation stage.
| Travel Range | 13 mm |
| Lead Time | In Stock |
No CAD drawings available for this product.
Product Family: Manual Rotary Translation Stage (8 variants)
| Product | SKU | Size | Clear Aperture | Operating Wavelength | |
|---|---|---|---|---|---|
| Micro Dovetail Translation Stage RP-3B |
RP-3B
| — | — | — | View |
