Manual Rotary Translation Stage RP-1B
RP-1B$195.44
In Stock
Design Tools
Photonics Calculators
Explore 49 free online calculators for photonics design
Unit Converters
Convert between wavelength, frequency, power, and more
View all 49 calculators →
RoHS
REACH
The Manual Rotary Translation Stage RP-1B from WaveQuanta is a high-performance Stages Actuators designed for micrometer-precision optical alignment and positioning. Available from stock for immediate shipment. Sourced directly from WaveQuanta, this product meets the high standards required for scientific research and precision photonics applications.
✔ In Stock — Ships Today

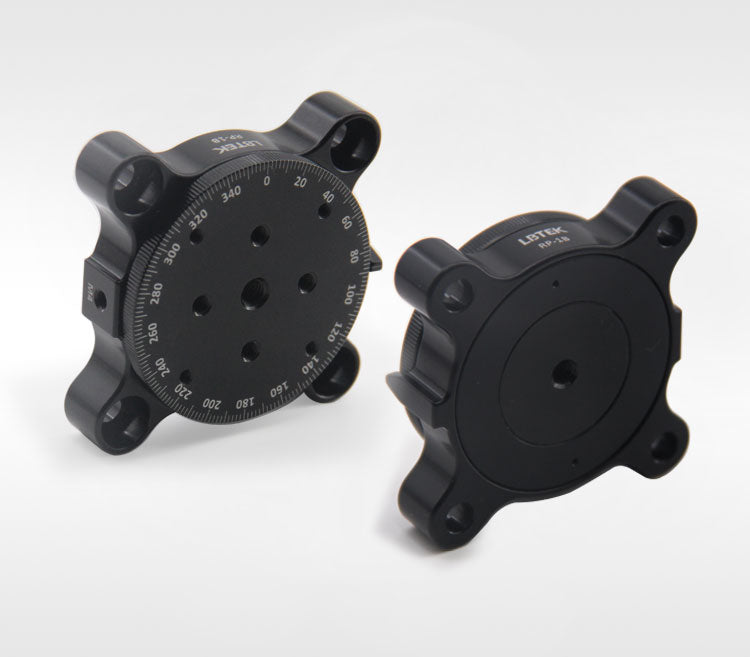

The LBTEK manual rotary translation stage for high-load vertical mounting, RP-1B, from LBTEK features a Ø56mm stage. Its rotary disk features M6, M4, and M3 tapped hole arrays for mounting same-thread components, prism mount clamping arms, and 30 mm coaxial system posts. The base contains countersunk tapped holes for horizontal installation of rotary stage on optical stage/breadboards using the included M6x16 socket head cap screw. An additional lateral M4 tapped hole enables vertical mounting on Ø12.7mm posts. The rotary stage is locked via a side M4 setscrew (2mm hex key operated).
Key Features
- 360° continuous rotation with 2° graduation resolution；
- Rotation can be locked via fixing screw；
- Platform tapped holes: M6 (1 piece), M4 (4 pieces), M3 (4 pieces);
- Compatible with 30 mm coaxial systems;
- One side M4 tapped hole for connecting Ø12.7 mm optical posts;
Application
RP-1B is horizontally installed on the optical platform
| Lead Time | In Stock |
No CAD drawings available for this product.
