Manual Rotary Translation Stage RP-1A-AP
RP-1A-AP$53.16
In Stock
Design Tools
Photonics Calculators
Explore 49 free online calculators for photonics design
Unit Converters
Convert between wavelength, frequency, power, and more
View all 49 calculators →
RoHS
REACH
The Manual Rotary Translation Stage RP-1A-AP from WaveQuanta is a high-performance Stages Actuators designed for micrometer-precision optical alignment and positioning. Available from stock for immediate shipment. Sourced directly from WaveQuanta, this product meets the high standards required for scientific research and precision photonics applications.
✔ In Stock — Ships Today

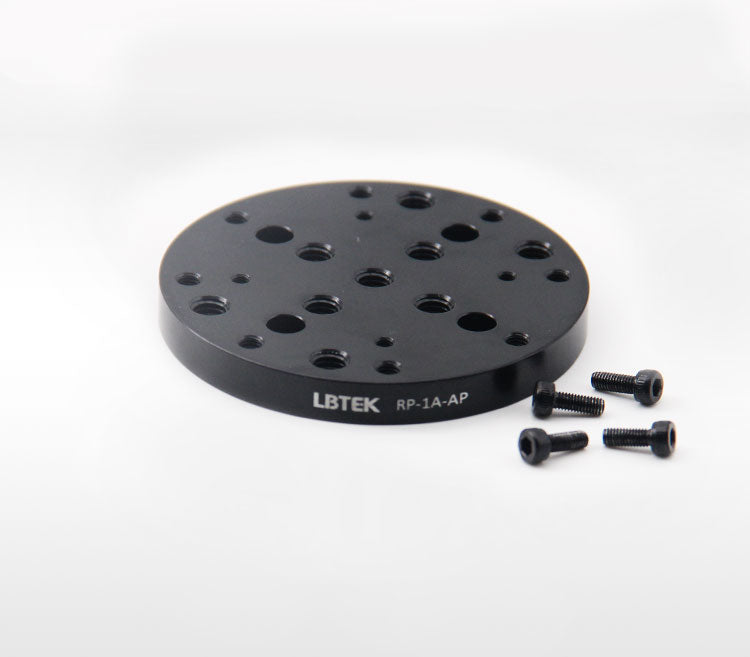

The solid adapter plate RP-1A-AP from LBTEK is primarily used for adaption, assembling with the RP-1A into the RP-1A-KIT. The plate's surface rotating disk features arrays of M6, M4, and M3 tapped holes, enabling flexible installation of post holders, clamping arms, and 30 mm coaxial systems.
Key Features
- 6061-T6 Aluminum Alloy
- Black Anodized
- Dimensions: Ø68.5 mm
- Thickness: 7.6 mm
- M3 Socket Head Cap Screw ×4
Application
The RP-1A-AP is installed on the RP-1A to form the RP-1A-KIT.
| Material | 6061-T6 aluminum alloy |
| Surface Treatment | Black anodized |
| Tabletop size | Ø68.5 mm |
| Thickness | 7.6 mm |
| Length | M6 tapped holes (9), M4 tapped holes (8), M3 tapped holes (4), M3 countersunk screw holes (4) |
No CAD drawings available for this product.
