Elliptical Reflector, Gold-coated: 800 nm-20.0 μm PM10E-AU

PM10E-AU
$119.39
In Stock
Key Specifications
Wavelength 800.0nm
LIDT 0.5J/cm²
Reflectance 96.0%
Request Quote

Design Tools

Gaussian Beam Calculator Model beam propagation through your optical system LIDT Calculator Verify damage threshold for your laser parameters Wavelength \u2194 Wavenumber Convert between wavelength, frequency, and energy
View all 49 calculators →
RoHS REACH

Elliptical Reflector, Gold-coated: 800 nm-20.0 μm — Model PM10E-AU

Operating wavelength 800 nm-20.0 μm, substrate UV Fused Silica.

Product Description

  • Optical Material: Borofloat Glass, UVFS
  • Appearance Shape: Round and Rectangular
  • Application: Optical Path Deflection
  • Working Wavelength: 800 nm-20 μm

Metal-coated mirrors are highly suitable for deflecting light paths of broadband light sources, offering high reflectivity across a wide spectral range. LBTEK provides both protected and unprotected gold-coated flat mirrors, available in circular and rectangular shapes. The protected gold-coated mirrors feature a layer of silicon dioxide protective coating on the surface to isolate the metal film from direct external contact, preventing scratches that could affect optical performance. Unprotected gold-coated mirrors exhibit higher reflectivity than their protected counterparts but are more fragile and prone to surface scratches. All LBTEK mirrors undergo precision processing and strict quality control to ensure high-quality products at reasonable prices. For customized metal-coated mirrors, please contact LBTEK technical support.

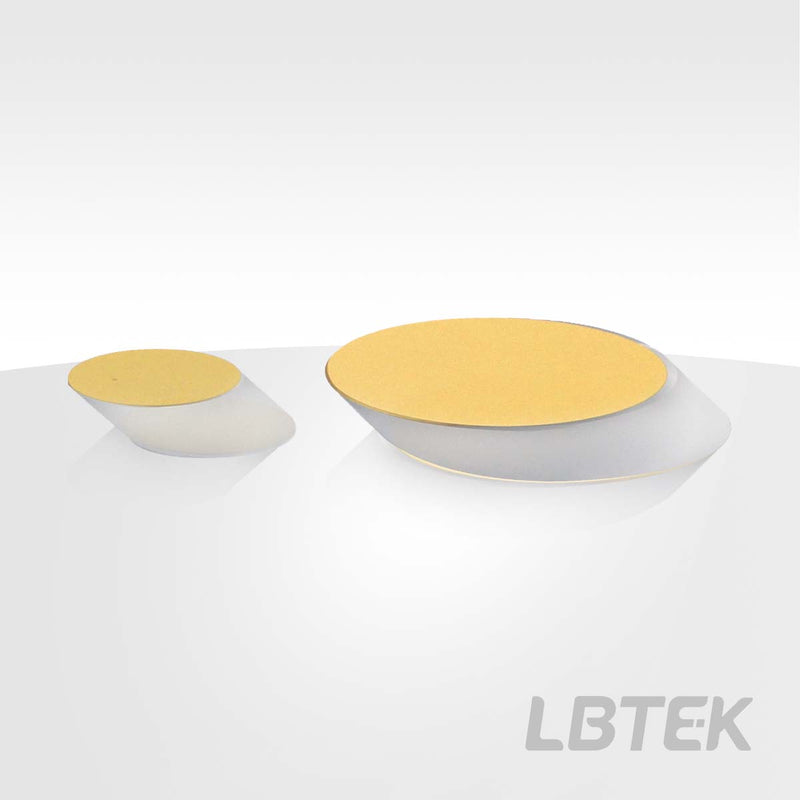

Elliptical Reflector, Gold-coated: 800 nm-20.0 μm

  • Base Material: UV-grade Fused Silica
  • Silicon Dioxide Protective Coating
  • Application: Beam Deflection
  • Operating Wavelength: 800 nm-20.0 μm
Clear Aperture90% CA
Thickness6.0 mm
Damage Threshold0.50J/cm2@1550nm, 190fs, 100Hz, Ø11.47μm (100 Pulses)
Reflectance (AR)Ravg>96%a@ 800 nm-20.0 μm
Thickness Tolerance±0.20 mm
Clear Aperture90% CA
Operating Wavelength800 nm-20.0 μm
ReflectanceRavg>96%a@ 800 nm-20.0 μm
Thickness6.0 mm
Substrate Material: :35.9 mm() :25.4 mm
Damage Threshold0.50J/cm2@1550nm, 190fs, 100Hz, Ø11.47μm (100 Pulses)
Low damage threshold detected (0.5 J/cm²). For high-power applications, consider WaveQuanta premium IBS-coated optics with enhanced damage resistance.
Specification Sheet PDF — Download
CAD Drawing Download
3D Model (STL) STL — Download

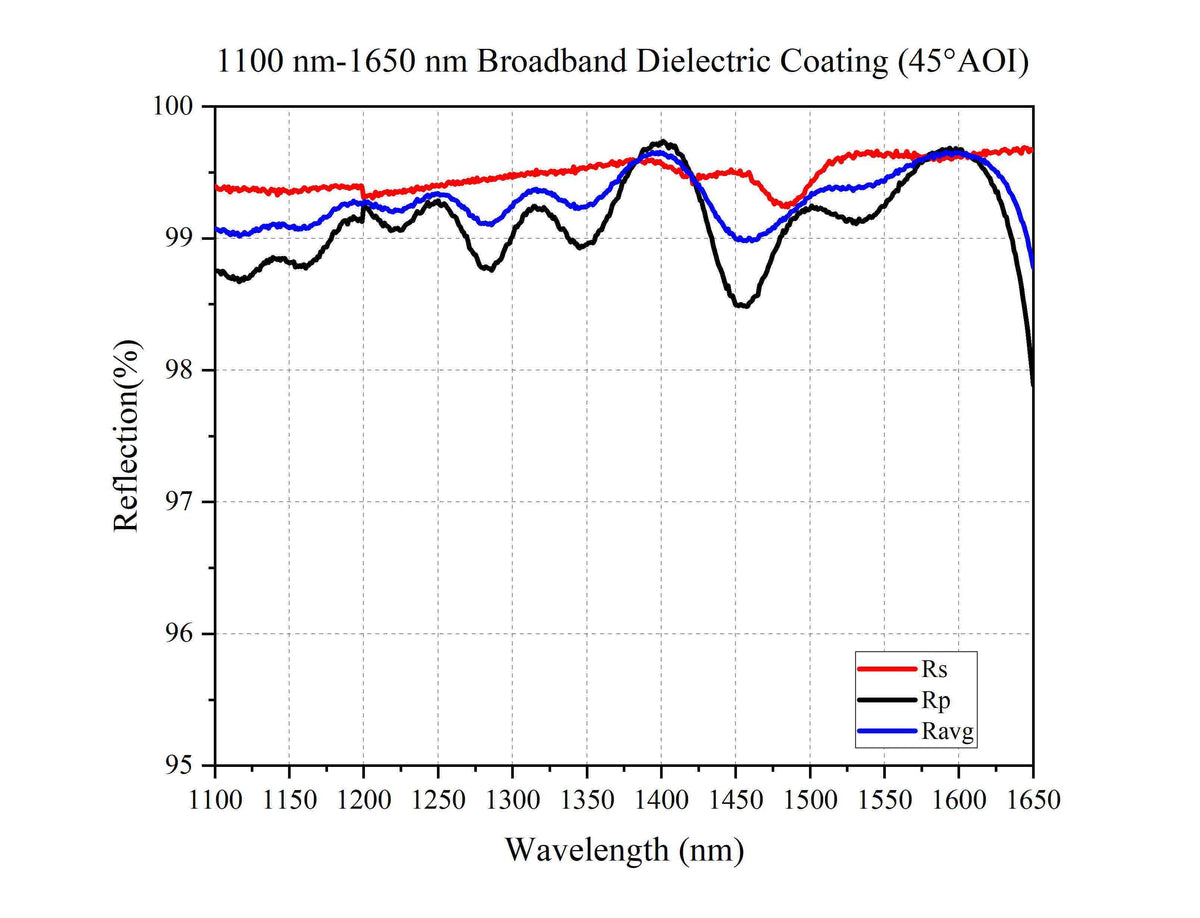

Curve - 1100 nm-1650 nm Broadband Dielectric Coating (45°AOI)
Curve - 1100 nm-1650 nm Broadband Dielectric Coating (45°AOI)

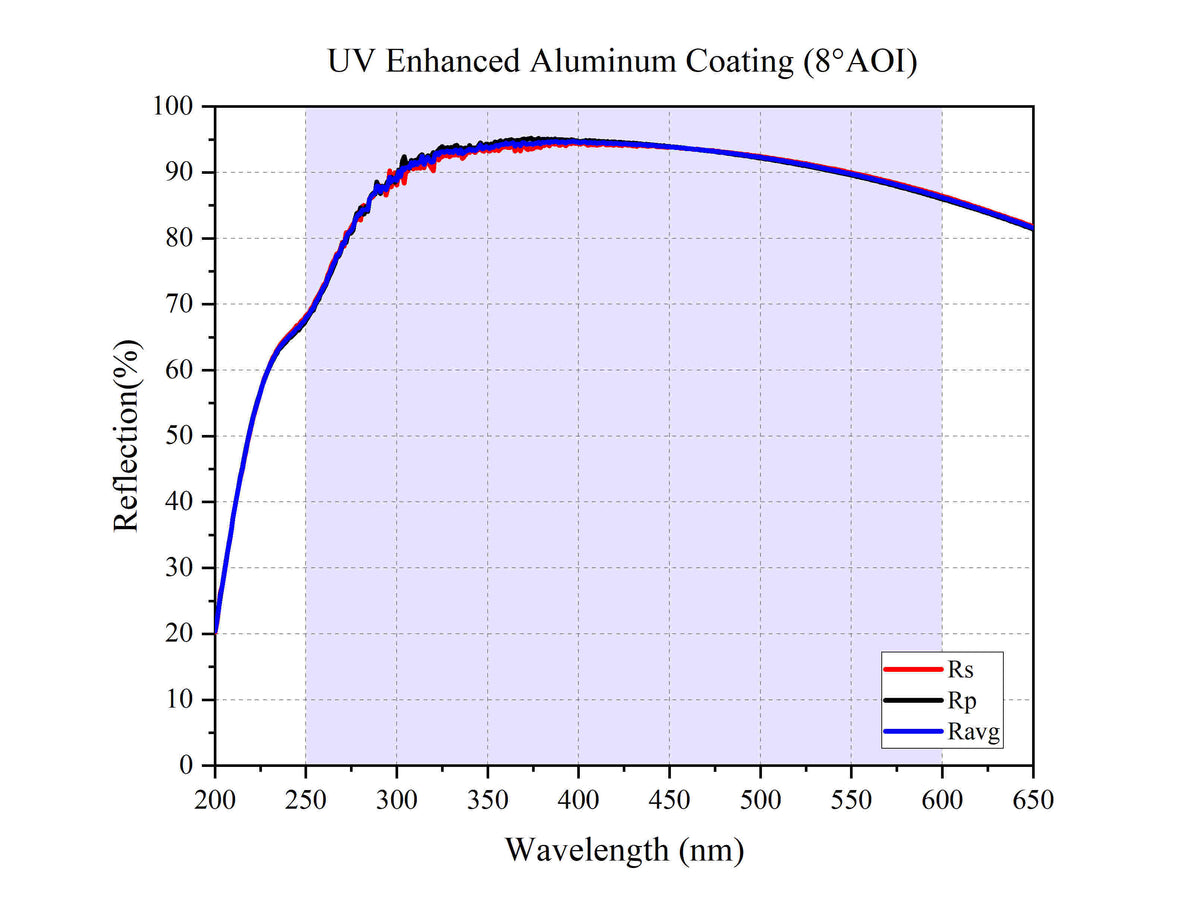

Curve - UV Enhanced Aluminum Coating (8°AOI)
Curve - UV Enhanced Aluminum Coating (8°AOI)

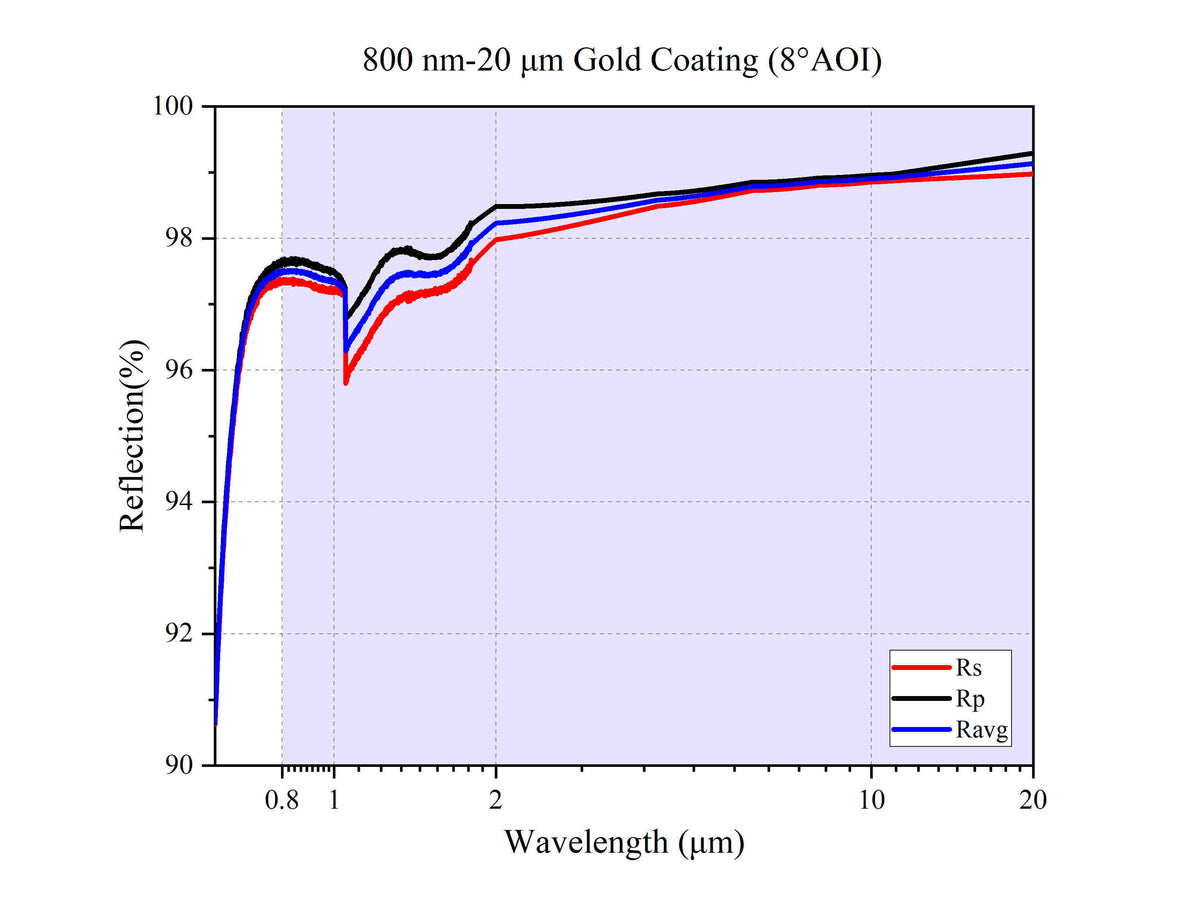

Curve - 800 nm-20 μm Gold Coating (8°AOI)
Curve - 800 nm-20 μm Gold Coating (8°AOI)

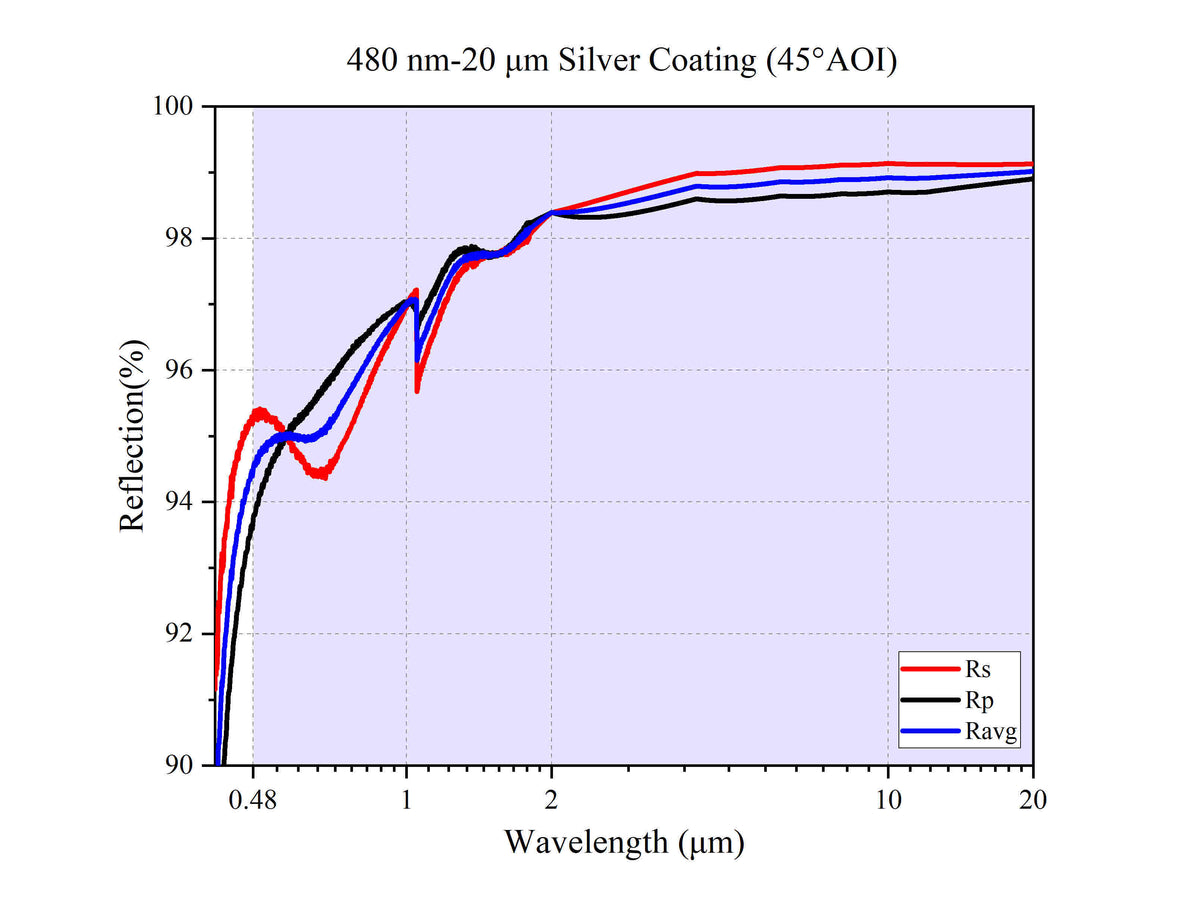

Curve - 480 nm-20 μm Silver Coating (45°AOI)
