Mitutoyo Plan Apochromat Dry Objectives MPLNUV20X
MPLNUV20XContact for pricing
In Stock
Contact Sales
Design Tools
View all 49 calculators →Complete Your Setup
RoHS
REACH

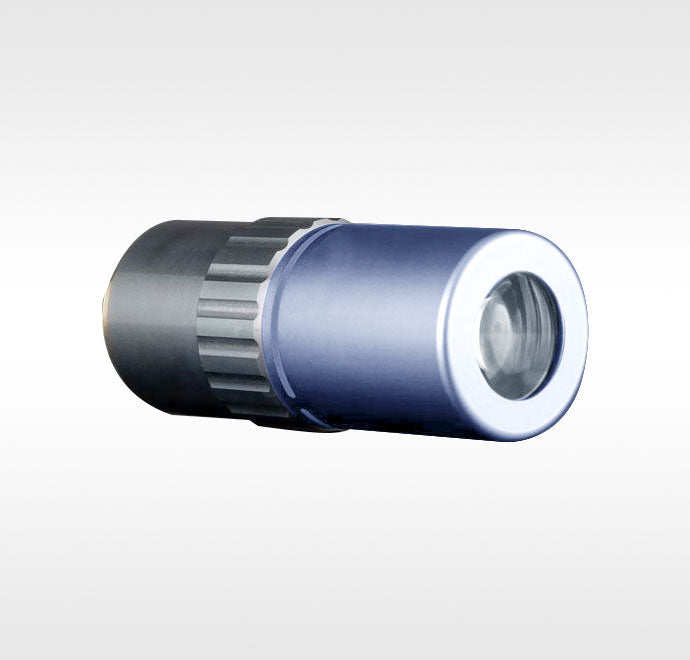

LBTEK offers Mitutoyo plan achromat dry objectives with an operating wavelength range of 266 nm to 532 nm and a magnification of 20x. Each objective features a 26 mm × 0.706 mm external thread. Using the LBTEK SM1-M26A thread adapter, these lenses can be mounted on internally SM1-threaded mounts. These plan achromat dry objectives are suitable for brightfield microscopy. Specific specifications are listed in the product specification sheet.
Key Features
- Long working distance
- Infinity-corrected plan achromatic design
- Designed for use with tube lenses of 200 mm focal length
- Thread specification: W26 mm×0.706 mm
- Working wavelength: 266 nm-532 nm
Application
Objective mounted on optics mounts using the SM1-M26A threaded adapter
| Magnification | 20X |
| Numerical Aperture | 0.36 |
| Tube Length | N/A |
| Working distance | 15.0 mm |
| Objective Field Number | 1.2 mm |
| Parfocal distance | 95 mm |
| Wavelength | 266 nm-532 nm |
| Immersion liquid | Air/Dry |
| Focal length | 10 mm |
| Field of View | W26 mm×0.706 mm |
| Attribute 2228 | 378-837-8 |
| Operating Temperature | -5～+45 ℃ |
| Attribute 1837 | Mitutoyo |
| Incident aperture | 7.2 mm |
