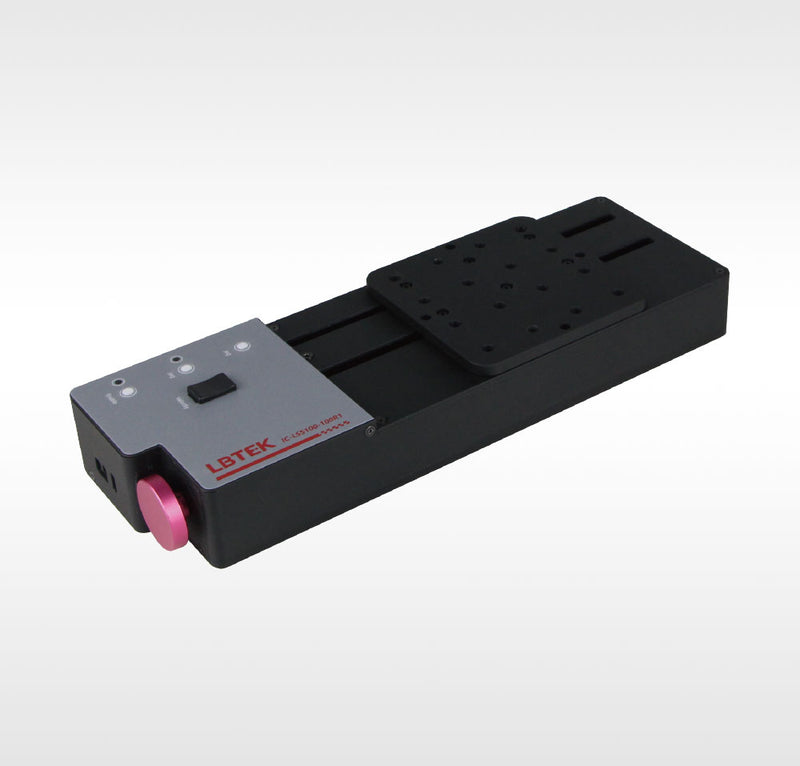

Motorized Linear Translation Stage with Integrated Controller IC-LSS100-100R1

The LBTEK Motorized Linear Translation Stage with Integrated Controller features a table size of 100 mm × 100 mm with a linear travel of 100 mm. It can bear a load of up to 12 kgf when installed horizontally and up to 4 kgf when installed vertically. Even under full horizontal load, it maintains a maximum speed of 50 mm/s and achieves unidirectional positioning accuracy of <±5.0 µm after calibration. It is suitable for applications requiring high load capacity and precision, such as measurement and inspection. The LBTEK integrated controller electric linear stage can be remotely controlled via PC or manually operated using the buttons and slider switches on the control panel. Parameters can be adjusted on the PC and stored in the device's built-in non-volatile memory. These settings are automatically applied when the device is powered on. It also supports manual operation without a PC or USB connection.
