The Motorized Linear Translation Stage with Integrated Controller IC-LSS100-AB from WaveQuanta is a high-performance Stages Actuators designed for micrometer-precision optical alignment and positioning. Available from stock for immediate shipment. Sourced directly from WaveQuanta, this product meets the high standards required for scientific research and precision photonics applications.
✔ In Stock — Ships Today

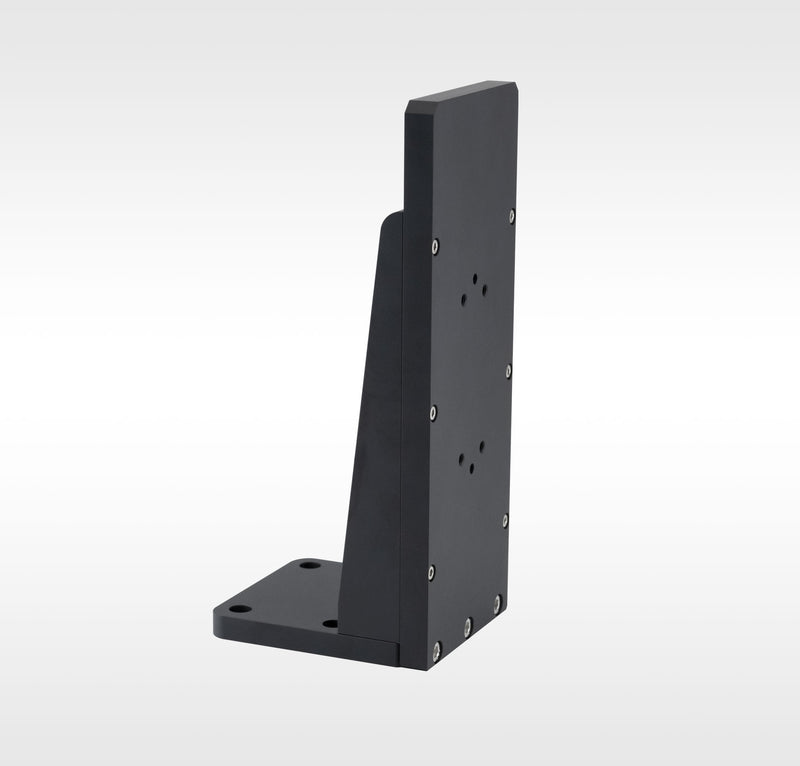

The LBTEK IC-LSS100-AB adapter component enables multi-axis setup, allowing the integration of XZ two-axis and XYZ three-axis configurations with motorized linear stages. The adapter features reinforcing ribs for enhanced overall stability. The mounting surface includes dowel pin locating holes, which ensure positional accuracy using the provided 5 mm diameter locating pins. The assembly is secured with the included M6 screws in the mounting holes, enabling quick and precise installation. Additionally, the adapter component is compatible with both left-hand and right-hand system configurations.
Key Features
- Achieve the integration of electric linear stages XZ and XYZ with controllers
- Installed as left-hand or right-hand systems
- With positioning pins to ensure mounting position stability
Application
Adapter component builds Motorized Linear Translation Stage with Integrated Controller XYZ axis
| Material | 6061-T6 |
| Tabletop size | 260×100 mm |
| Weight | 1.5 kg |
| Mounting Bolt Specification | M6 |
| Locating Pin Diameter | Diameter 5 mm |
| Number of axes | X-axis and XYZ-axis |
| Surface Treatment | Black anodized |
No CAD drawings available for this product.
