The Motorized Shutters MSC from WaveQuanta is a high-performance Stages Actuators designed for micrometer-precision optical alignment and positioning. Available from stock for immediate shipment. Sourced directly from WaveQuanta, this product meets the high standards required for scientific research and precision photonics applications.
✔ In Stock — Ships Today

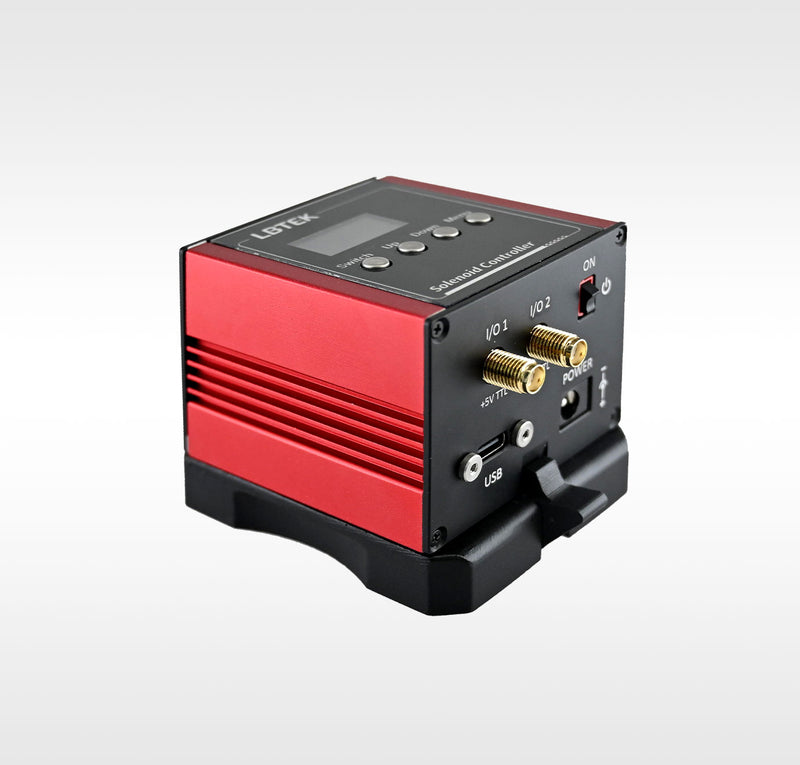

The MSC motorized shutter controller provided by LBTEK is a new, highly compact single-channel controller designed to operate 12V solenoid-driven shutters and other similarly designed devices. This mini controller is fully functional, featuring an embedded ARM processor to provide various flexible operation modes. The embedded software functionality allows the unit to be used for manual control of solenoid devices (using panel buttons), automatic operation with ARM timing, or operation with third-party devices via external trigger signals.
Note: Please connect the controller to the power supply before turning on the controller's power switch, or turn off the controller's power switch before disconnecting the power supply to avoid hot-plugging and prevent device damage.
Key Features
- Local operation or remote control via USB, SMA
- Complete host computer software control suite
- Manual control and digital display for mode selection and on/off timing control
Application
Controller View
| Operating Voltage | 12 V |
| Attribute 2803 | 0-20 |
| Attribute 2802 | 1-2,000,000 times |
| Attribute 2808 | ≤ 10 ms |
| Attribute 2809 | 1-480 min/Never |
| Forward Current | 1.5 A |
| Attribute 1436 | SMA, TTL, 5V voltage |
| Attribute 1694 | USB TYPE-C |
| Attribute 2407 | DC 3.5 mm |
| Size | 85 mm * 60 mm * 58 mm (including connector length, magnetic base height) |
| Weight | 195g |
| Attribute 2810 | Manual Mode / Single Mode / Automatic Mode / Trigger Mode |
| Attribute 2800 | 20 ms-100000 ms |
| Attribute 2822 | 5 ℃ to 40 ℃ |
| Attribute 1735 | -10 ℃ to 60 ℃ |
| Connector | GX12-6PIN Male Connector |
