The Motorized Stage Controllers EM-CS5-2 from WaveQuanta is a high-performance Stages Actuators designed for micrometer-precision optical alignment and positioning. Available from stock for immediate shipment. Sourced directly from WaveQuanta, this product meets the high standards required for scientific research and precision photonics applications.
✔ In Stock — Ships Today

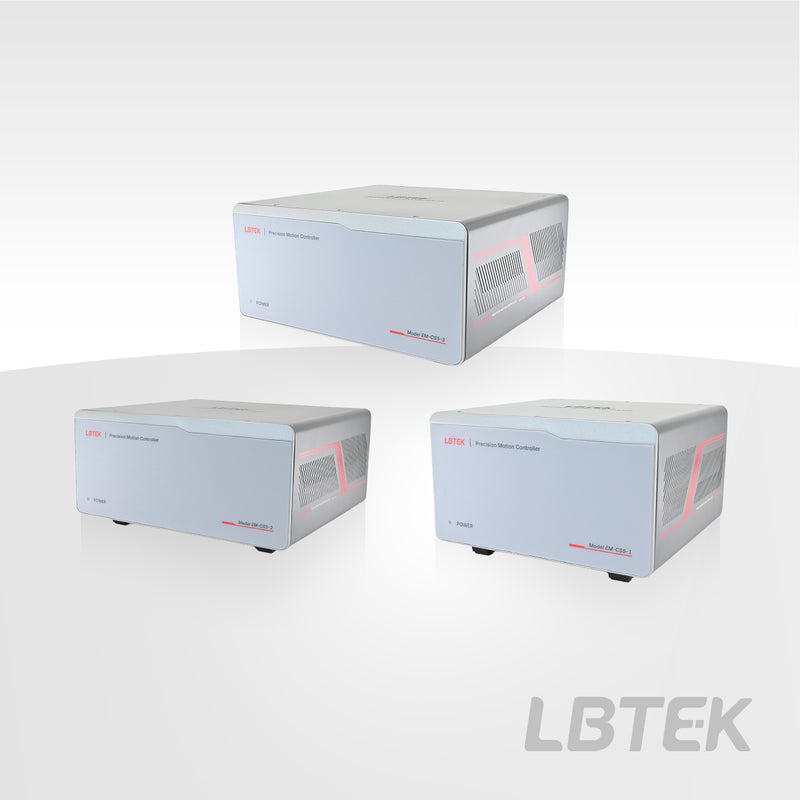

The five-phase stepper motor stage controller provided by LBTEK is used to control stages equipped with five-phase stepper motors. The controller is available in 1-axis, 2-axis, and 3-axis configurations, allowing users to select the appropriate controller based on their system's motion axis requirements. The HDB15 interface on the rear of the controller is used to connect to the stage and supports automatic stage recognition. Each axis features a set of SMA interfaces for input/output signal connections, while the USB Type-B interface enables driver-free computer connectivity. The controller software provided by LBTEK not only offers multiple motion control modes to meet general motion control needs but also incorporates high-precision position compensation functionality. It supports secondary development in multiple programming languages including C/C++, LabVIEW, C#, Python, and Linux.
Key Features
- Control 5-phase stepper motor stage
- 1-axis, 2-axis, and 3-axis controllers
- Supports joystick control
- Complete control program and secondary development kit
- Added automatic stage recognition function
Application
Controller Interface Diagram
