Motorized Stage Controllers EMJC3

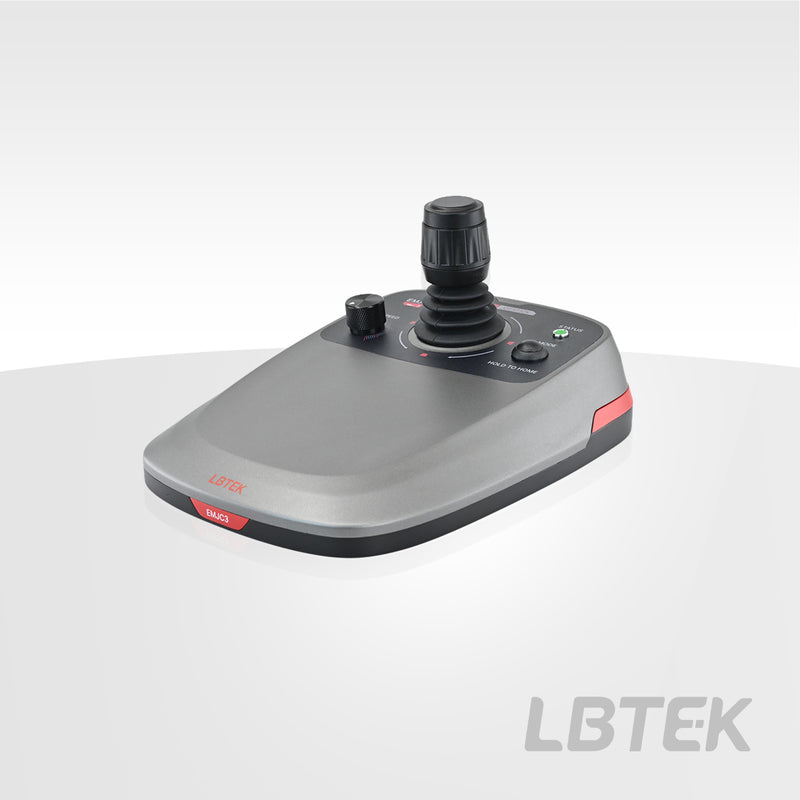

The EMJC3 joystick controller provided by LBTEK needs to be used in conjunction with our EM-CS series stepper motor stage controllers. It is primarily designed to control the XYZ three axes, with the X-axis defaulting to left-right control, the Y-axis to up-down control, and the Z-axis to clockwise or counterclockwise rotation control. It integrates speed adjustment, stop, and homing functions, supporting emergency stop to return to the zero position. After the EM-CS series stage controller automatically recognizes the default parameters of the stage, the joystick can be plugged in and used immediately without any PC connection or setup, making it convenient and efficient. A 1.5-meter-long USB 3.1 standard Type-A to Type-C data cable is included with the shipment for connecting the joystick controller to the stage controller. When the stage controller is connected to a PC for operation, the controller software has the function to disable simultaneous joystick operation to prevent confusion caused by multi-point control, ensuring safety and reliability.
