Princeton Instruments

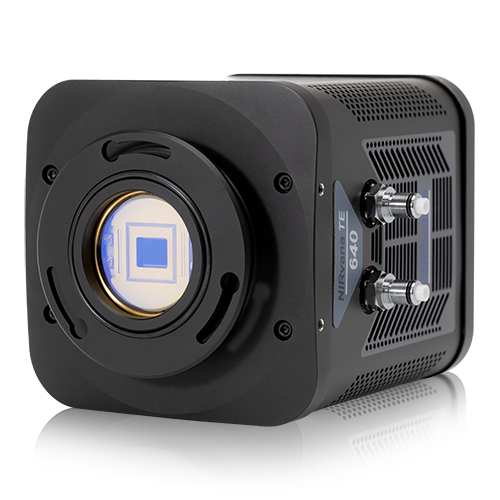

NIRvana InGaAs Camera
PI-NIRVANA-640Contact for pricing
In Stock
Contact Sales
Design Tools
View all 49 calculators →Complete Your Setup
RoHS
REACH
The NIRvana is a thermoelectrically cooled InGaAs camera for near-infrared imaging and spectroscopy from 0.9 to 1.7 µm (standard) or 0.9 to 2.2 µm (extended). Deep TE cooling to -85°C reduces dark current without liquid nitrogen. Available in 640×512 format with high-speed readout up to 110 fps. Ideal for SWIR imaging, NIR photoluminescence, and telecom applications.
Key Features
- Thermoelectric cooling to -85°C (no cryogens)
- InGaAs sensor: 0.9-1.7 µm (standard) or 0.9-2.2 µm (extended)
- 640×512 pixel format
- High speed: up to 110 fps
- Low noise for InGaAs technology
- GigE Vision interface
- External trigger and sync options
Applications
- SWIR imaging
- NIR photoluminescence
- Semiconductor inspection
- Telecom component testing
- NIR fluorescence microscopy
Specifications
| Parameter | Value |
|---|---|
| Wavelength Range Min | 900 nm |
| Wavelength Range Max | 1700 nm |
| Sensor Type | InGaAs (TE-Cooled) |
| Pixel Size | 20.0 µm |
| Resolution | 640x512 px |
| Frame Rate | 110.0 fps |
| Cooling Method | Thermoelectric (TE) |
| Cooling Temperature | -85.0 °C |
| Spectral Range | 900-1700 nm |
| Quantum Efficiency | 85.0 % |
| Weight | 3.0 kg |
| Wavelength Range | 900.0 – 1700.0 nm |
| Quantum Efficiency | 85.0% |
| Weight | 3.0 kg |
| Sensor Type | InGaAs (TE-Cooled) |
| Pixel Size | 20.0 μm |
| Resolution | 640x512 |
| Frame Rate | 110.0 fps |
| Cooling Method | Thermoelectric (TE) |
| Cooling Temperature | -85.0 °C |
| Spectral Range | 900-1700 |
No documents available for this product.
No CAD drawings available for this product.
Product Family: InGaAs Cameras (2 variants)
| Product | SKU | Size | Clear Aperture | Operating Wavelength | |
|---|---|---|---|---|---|
| NIRvana InGaAs Camera Current |
PI-NIRVANA-640
| — | — | — | |
| PyLoN-IR InGaAs Spectroscopy Camera |
PI-PYLON-IR-1024
| — | — | — | Contact |
