Princeton Instruments
SpectraPro HRS Imaging Spectrograph
PI-SPECTRAPRO-HRS-300Contact for pricing
In Stock
Contact Sales
Design Tools
Gaussian Beam Calculator
Model beam propagation through your optical system
Wavelength \u2194 Wavenumber
Convert between wavelength, frequency, and energy
View all 49 calculators →
Complete Your Setup
RoHS
REACH
The SpectraPro HRS is a next-generation high-resolution imaging spectrograph and scanning monochromator, building on 25+ years of SpectraPro reliability. Featuring dual exit ports (each with a full 30 mm focal plane), AccuDrive grating scan, and up to 9 gratings across 3 triple turrets, it provides exceptional versatility. Available in HRS-300 (300mm), HRS-500 (500mm), and HRS-750 (750mm) focal lengths. The HRS-500 and HRS-750 feature astigmatism-corrected optical systems. Functions simultaneously as monochromator and spectrograph.
Key Features
- Dual exit ports with 30 mm focal plane each
- AccuDrive grating scan (sub-pixel repeatability)
- Up to 9 gratings across 3 triple turrets
- 60% resolution improvement with ResXtreme
- IntelliCal dual-source calibration (10× accuracy)
- Astigmatism-corrected optics (HRS-500/750)
- Simultaneous monochromator + spectrograph operation
- Acton #1900 enhanced aluminium coatings
Applications
- Raman spectroscopy
- Photoluminescence
- LIBS
- Fluorescence
- Plasma diagnostics
- Process monitoring
Specifications
| Parameter | Value |
|---|---|
| Wavelength Range Min | 0 nm |
| Wavelength Range Max | 1500 nm |
| Focal Length | 300.0 mm |
| Weight | 20.0 kg |
| Wavelength Range | 0.0 – 1500.0 nm |
| Focal Length | 300.0 mm |
| Weight | 20.0 kg |
No documents available for this product.
No CAD drawings available for this product.

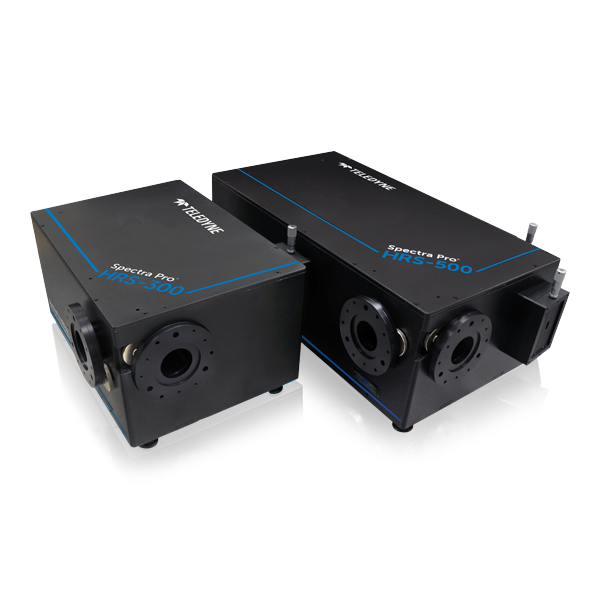

SpectraPro HRS Imaging Spectrograph, 0-1500nm Bandwidth
Product Family: Imaging Spectrographs (2 variants)
| Product | SKU | Size | Clear Aperture | Operating Wavelength | |
|---|---|---|---|---|---|
| SpectraPro HRS Imaging Spectrograph Current |
PI-SPECTRAPRO-HRS-300
| — | — | — | |
| IsoPlane Imaging Spectrograph |
PI-ISOPLANE-320
| — | — | — | Contact |
