Princeton Instruments
IsoPlane Imaging Spectrograph
PI-ISOPLANE-320Contact for pricing
In Stock
Contact Sales
Design Tools
Gaussian Beam Calculator
Model beam propagation through your optical system
Wavelength \u2194 Wavenumber
Convert between wavelength, frequency, and energy
View all 49 calculators →
Complete Your Setup
RoHS
REACH
The IsoPlane is a multi-award-winning imaging spectrograph featuring a patented astigmatism-free Schmidt-Czerny-Turner (SCT) optical design. Unlike conventional spectrographs, it completely eliminates field astigmatism at all wavelengths and focal plane positions, providing superior spectral resolution and signal-to-noise ratio. The AccuDrive grating scan system ensures sub-pixel wavelength repeatability. Available in 160mm (IsoPlane 160), 320mm (IsoPlane 320), and advanced 320mm (IsoPlane 320A) focal lengths. Compatible with all Princeton Instruments CCD, EMCCD, ICCD, and InGaAs cameras.
Key Features
- Patented astigmatism-free Schmidt-Czerny-Turner design
- AccuDrive grating scan system
- Interchangeable triple-grating turrets (auto self-alignment)
- ResXtreme spectral deconvolution (60% resolution improvement)
- IntelliCal wavelength calibration system
- Operates in any orientation
- UV to IR wavelength coverage (105-6000 nm)
- LightField 64-bit software with MATLAB/LabVIEW integration
Applications
- Raman spectroscopy
- Photoluminescence
- Fluorescence spectroscopy
- Microspectroscopy
- Absorption/transmission spectroscopy
Specifications
| Parameter | Value |
|---|---|
| Wavelength Range Min | 105 nm |
| Wavelength Range Max | 6000 nm |
| Diffraction Efficiency | 70.0 % |
| Focal Length | 320.0 mm |
| Weight | 25.0 kg |
| Length | 518.0 mm |
| Width | 450.0 mm |
| Height | 216.0 mm |
| Wavelength Range | 105.0 – 6000.0 nm |
| Diffraction Efficiency | 70.0% |
| Length | 518.0 mm |
| Width | 450.0 mm |
| Height | 216.0 mm |
| Focal Length | 320.0 mm |
| Weight | 25.0 kg |
No documents available for this product.
No CAD drawings available for this product.

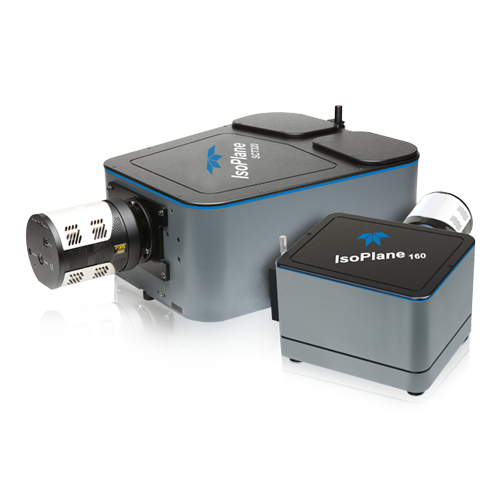

IsoPlane Imaging Spectrograph, 105-6000nm Bandwidth
Product Family: Imaging Spectrographs (2 variants)
| Product | SKU | Size | Clear Aperture | Operating Wavelength | |
|---|---|---|---|---|---|
| SpectraPro HRS Imaging Spectrograph |
PI-SPECTRAPRO-HRS-300
| — | — | — | Contact |
| IsoPlane Imaging Spectrograph Current |
PI-ISOPLANE-320
| — | — | — |
