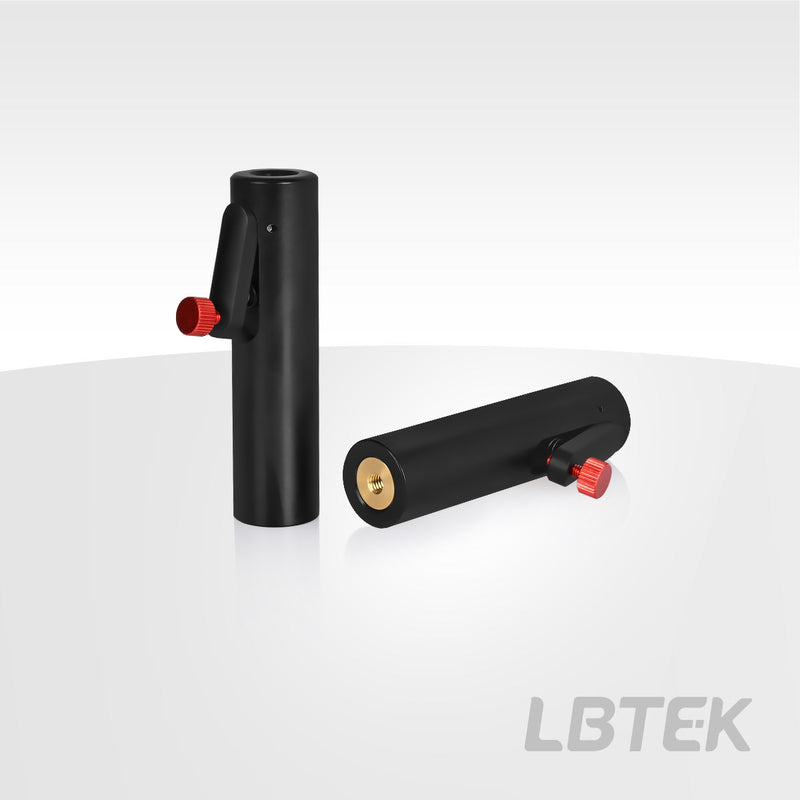

Ø12.7 mm Post Holder — Model PPH-50A

✔ In Stock — Ships Today

The LBTEK Lever Lock Ø12.7 mm Post Holder features a patented lever lock mechanism, providing a stronger clamping force than traditional post holders. When an optical post is placed in the lever lock post holder, the lever lock can be easily operated with one hand: press to release, release to secure the post. Rotating the hand-tightened screw firmly presses the post against the two support lines within the groove on the inner wall of the holder. Once locked, the post and the post holder become a solid, integrated unit. The bottom is equipped with an M6 threaded hole for mounting.

Key Features

  • Quick installation and release
  • Evenly distributes larger forces
  • Locking and releasing does not cause the extension rod to rotate
  • Lever lock mechanism provides a more secure clamping force than traditional extension rod holders

Application

Press the red hand-tightening screw to install or release

Material 6061-T6 Aluminum Alloy + H65 Brass
Surface Treatment Black anodized
Clamping diameter Ø12.7 mm
Main Housing Dimensions 50 mm
Size M6
Quantity 1 piece
Locking Mechanism Leverage Lock
Weight 0.06 kg
Specification Sheet PDF — Download
CAD Drawing Download
3D Model (STL) STL — Download
