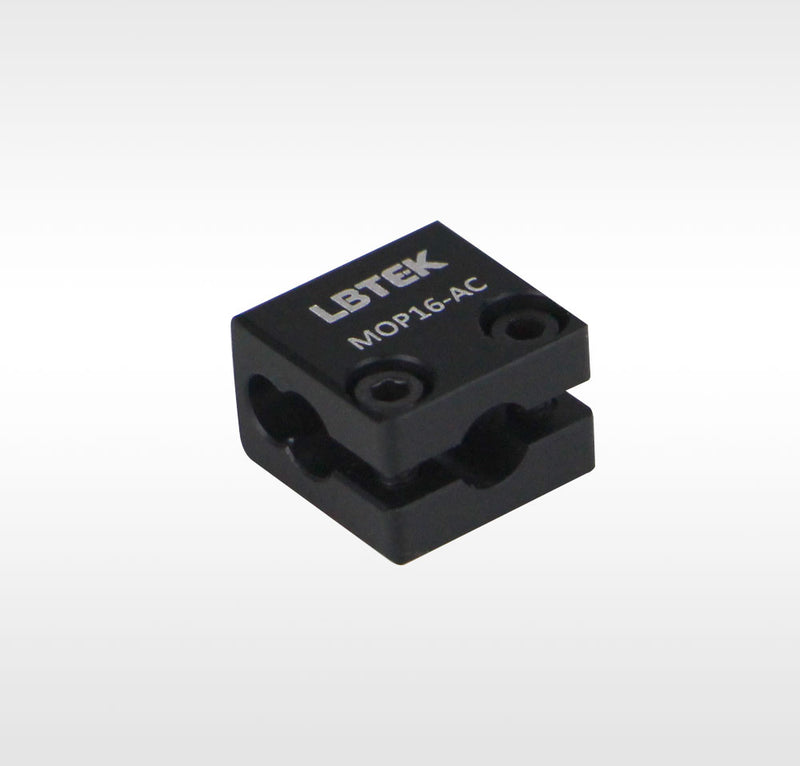

Ø4 mm Rod Adapter — Model MOP16-AC
✔ In Stock — Ships Today
The LBTEK 90° orthogonal coupling adapter is designed for 16 mm coaxial systems, facilitating orthogonal optical path redirection within coaxial setups. This adapter allows two Ø4 mm rods to be connected at a 90° right angle, with one rod passing through the adapter and the other inserted into its end. Flexible locking of the rods is achieved by tightening two M2.5 hex socket head cap screws using a 2 mm hex wrench. The 90° right-angle coupling adapter is particularly suitable for constructing three-dimensional structures in 16 mm coaxial systems.
Key Features
- Comes with 90° connector Ø4 mm coaxial rod
- Locked with 2 mm hex wrench
- Flexible clamping design
Application
Adapter applications in 16 mm coaxial systems
| Material | 6061-T6 Aluminum Alloy |
| Surface Treatment | Black anodized |
| Clamping rod diameter | Ø4 mm |
| Attribute 2295 | 2 mm hex key |
| Dimensions | 11.2 mm×11.2 mm×7.6 mm |
| Compatible with coaxial systems | 16 mm coaxial system |
CAD Drawing
Download
Click and drag to rotate. Scroll to zoom.
Product Family: Ø4 mm Rod Adapter (3 variants)
| Product | SKU | Size | Clear Aperture | Operating Wavelength | |
|---|---|---|---|---|---|
| Ø4 mm Rod Adapter MOP16-AC Current |
MOP16-AC
| — | — | — | |
| Ø4 mm Rod Adapter MOP16-C-P4 |
MOP16-C-P4
| — | — | — | View |
| Ø4 mm Rod Adapter MOP16-C |
MOP16-C
| — | — | — | View |
