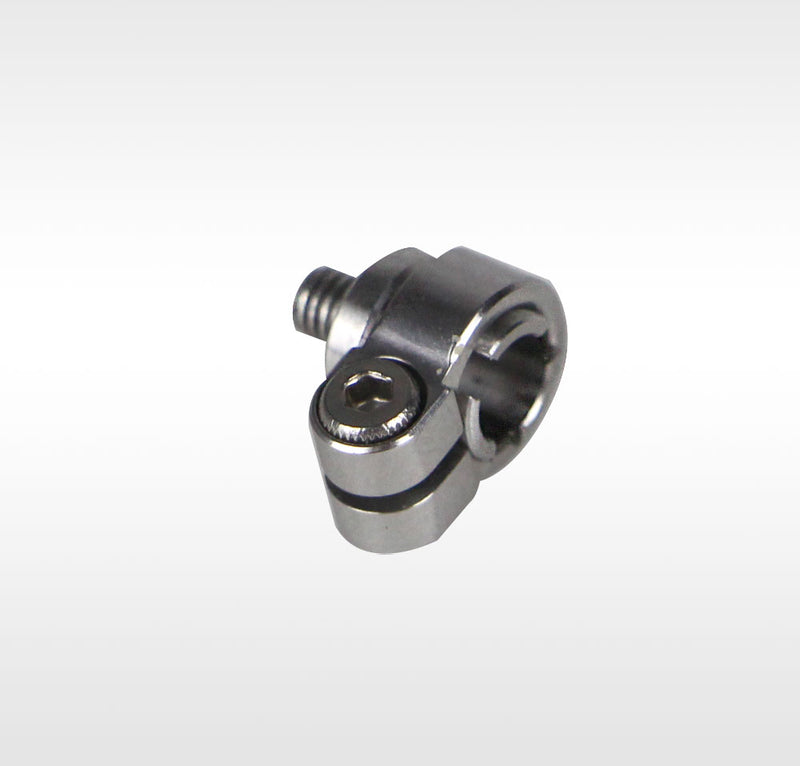

Ø4 mm Rod Adapter MOP16-C-P4

The LBTEK quick-release adapter is designed for 16 mm coaxial systems, allowing for the addition or separation of coaxial system components. One end of the adapter features a Ø4 mm smooth bore hole, into which a Ø4 mm coaxial post (with the screw removed) can be inserted. The post can be flexibly locked in place by tightening the M2.5 socket head cap screw on the bolt collar using a 2 mm hex wrench. The other end is equipped with an M3 screw, enabling the extension of a Ø4 mm coaxial post or the connection of coaxial components with M3 internal threads, such as 16 mm coaxial cubes, 16 mm coaxial right-angle optical mounts, and more.
