Ø6 mm coaxial rod adapter — Model MOPCA-M3
✔ In Stock — Ships Today

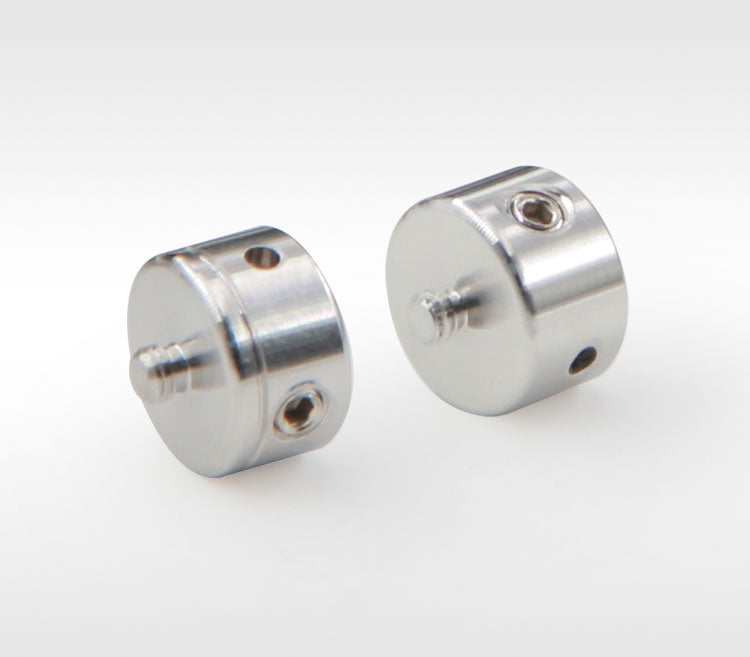

The LBTEK coaxial rod adapter features a stud at one end (available in both 4-40 stud and M3 stud types), which can be screwed into components with 4-40 or M3 internal threads. The other end of the adapter has a small hole with an inner diameter of Ø6 mm for connecting Ø6 mm coaxial rods, and includes an M3 set screw on the side for securing the Ø6 mm coaxial rod. A side Ø1.8 mm through-hole is compatible with a 1.5 mm wrench for reinforcing the connection. Consistent with the MOP series coaxial rod identification, the metric M3 specification has a metric thread marking ring at the front end.
Key Features
- Optional stud specifications of 4-40 and M3
- Side-mounted set screw for securing Ø6 mm coaxial rods
- Available in packs of four peices
Application
Coaxial rod adapters are commonly used to connect beam splitter cube mounts.
| Material | 304 stainless steel |
| Bore depth | 5.6 mm |
| Compatibility | M3 |
| Quantity | 1 |
| Inner diameter | Ø6 mm |
| Attribute 247 | M3 (2 locations) |
| Optional countersunk waist groove length | Ø1.8 mm |
No documents available for this product.
CAD Drawing
Download
Click and drag to rotate. Scroll to zoom.
Product Family: Ø6 mm coaxial rod adapter (4 variants)
| Product | SKU | Size | Clear Aperture | Operating Wavelength | |
|---|---|---|---|---|---|
| Ø6 mm coaxial rod adapter MOPCA-4-40 |
MOPCA-4-40
| — | — | — | View |
| Ø6 mm coaxial rod adapter MOPCA-4-40-P4 |
MOPCA-4-40-P4
| — | — | — | View |
| Ø6 mm coaxial rod adapter MOPCA-M3-P4 |
MOPCA-M3-P4
| — | — | — | View |
| Ø6 mm coaxial rod adapter MOPCA-M3 Current |
MOPCA-M3
| — | — | — |
