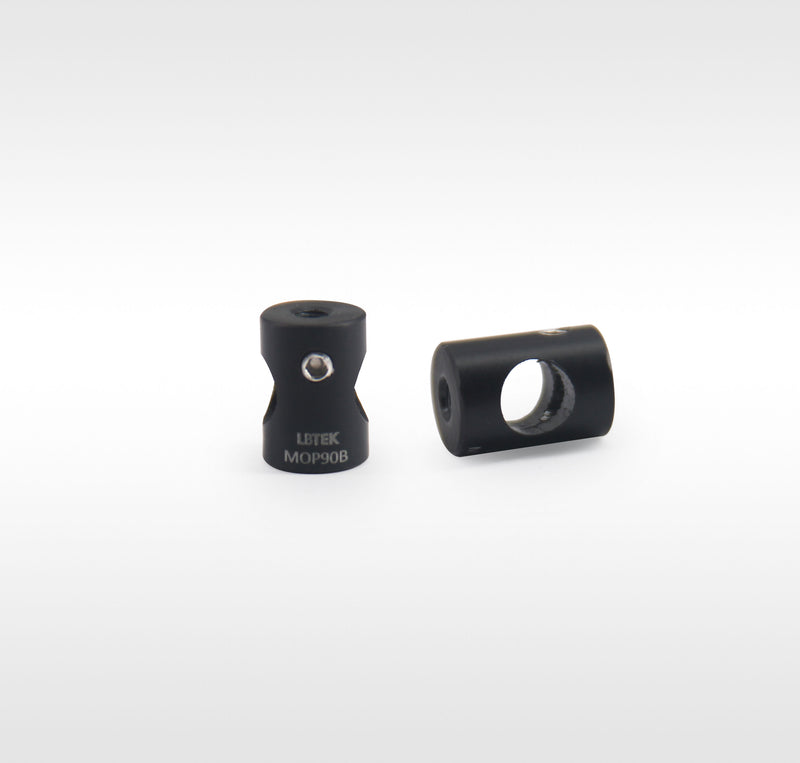

Ø6 mm Rod 90-Degree Clamp — Model MOP90B
✔ In Stock — Ships Today
The Ø6 mm post 90-degree clamp provided by LBTEK features a robust construction with an M3 threaded hole and a Ø6 mm through hole, allowing Ø6 mm posts to be securely fixed at 90 degrees to each other. This enables stable and compact assembly of complex accessories, thereby improving space utilization. The clamp includes an M3 set screw on the side, which can be tightened using a 1.5 mm wrench.
Key Features
- Material: 6061-T6 aluminum alloy
- Fixed angle: 90°
- Compatible with Ø6 mm rods
Application
The Ø6 mm rod angle clamp is commonly used for 90° coaxial system redirection.
| Material | 6061-T6 aluminum alloy |
| Surface Treatment | Black anodized |
| Applicable connecting rod diameter | Ø6 mm |
| Fixed angle | 90°± 0.05° |
