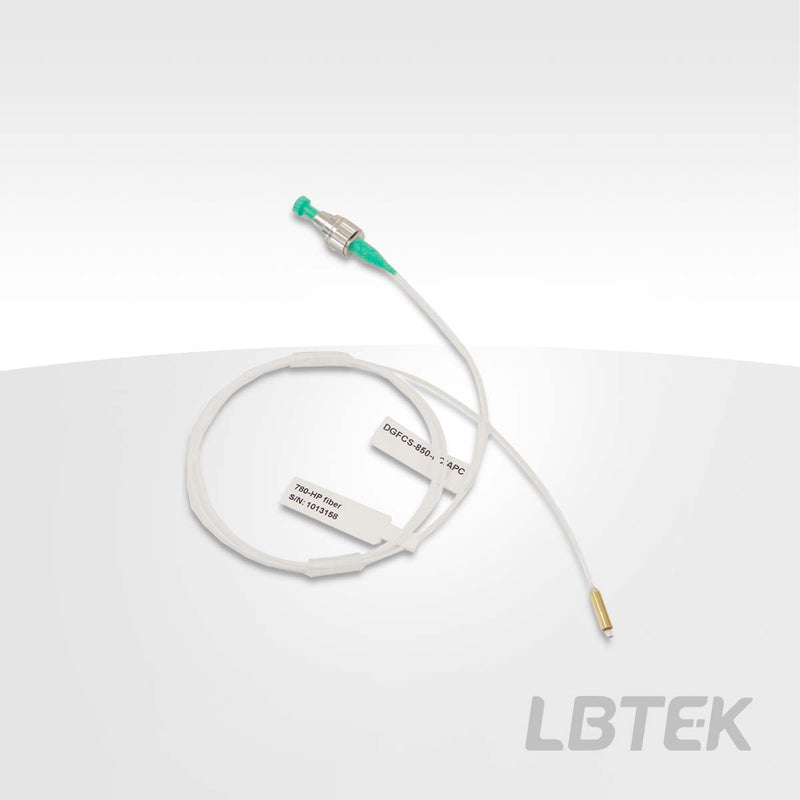

Pigtailed GRIN Collimator DGFCS-980-FC/APC

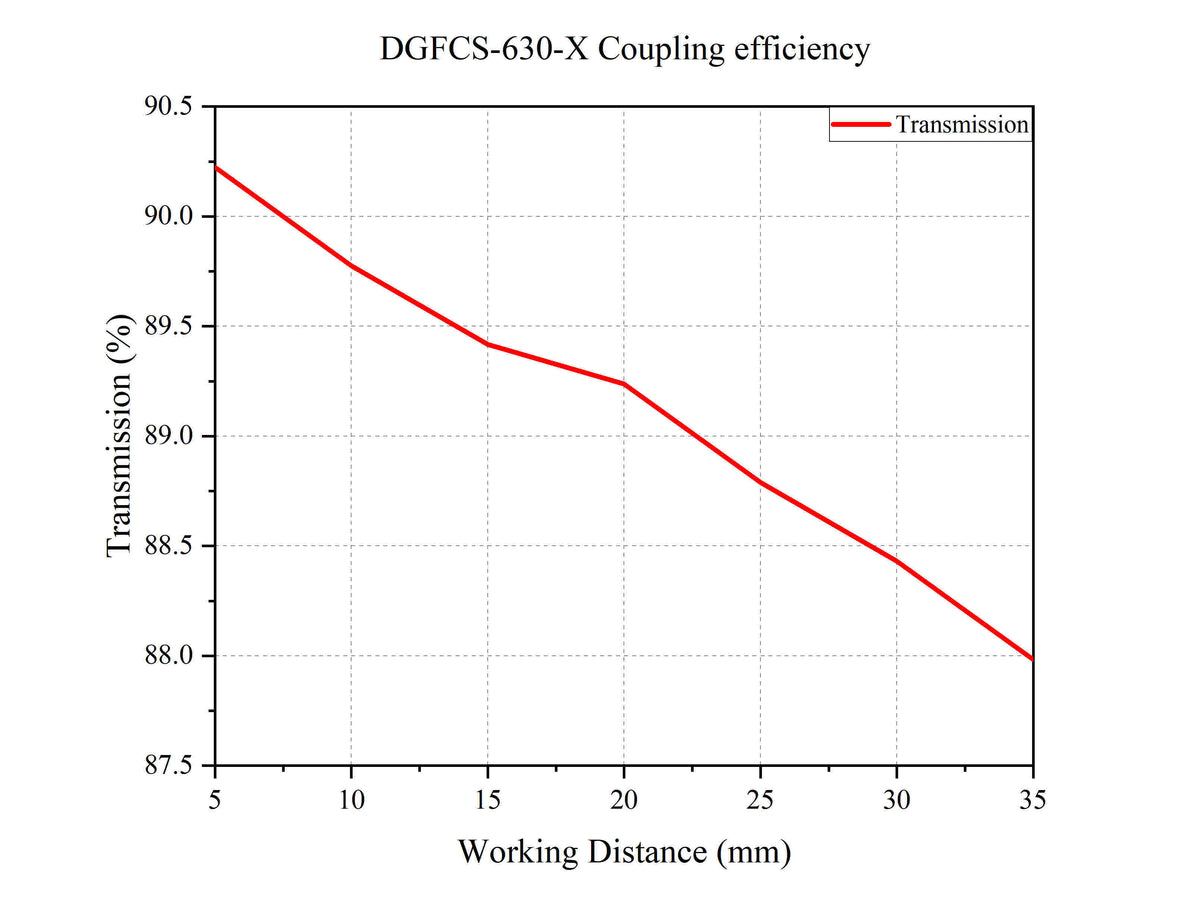

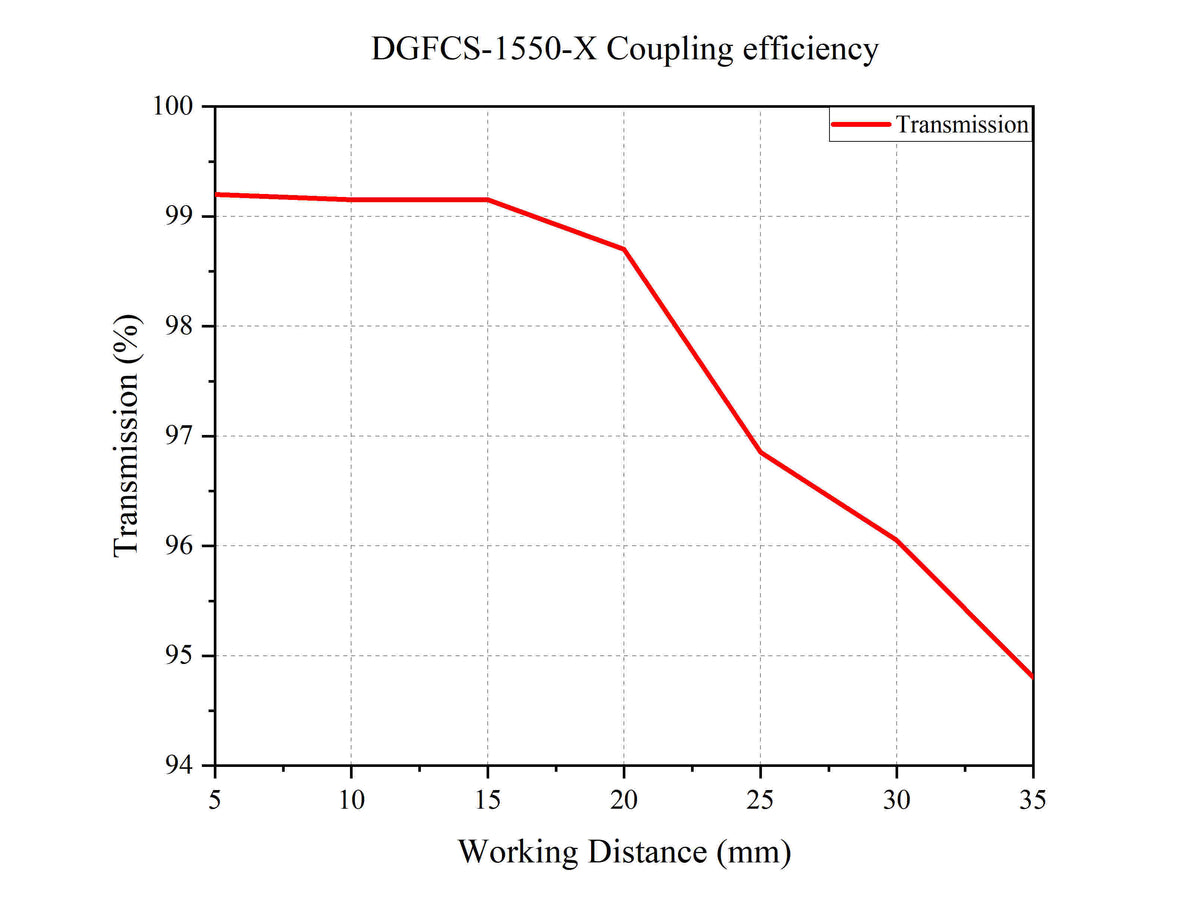

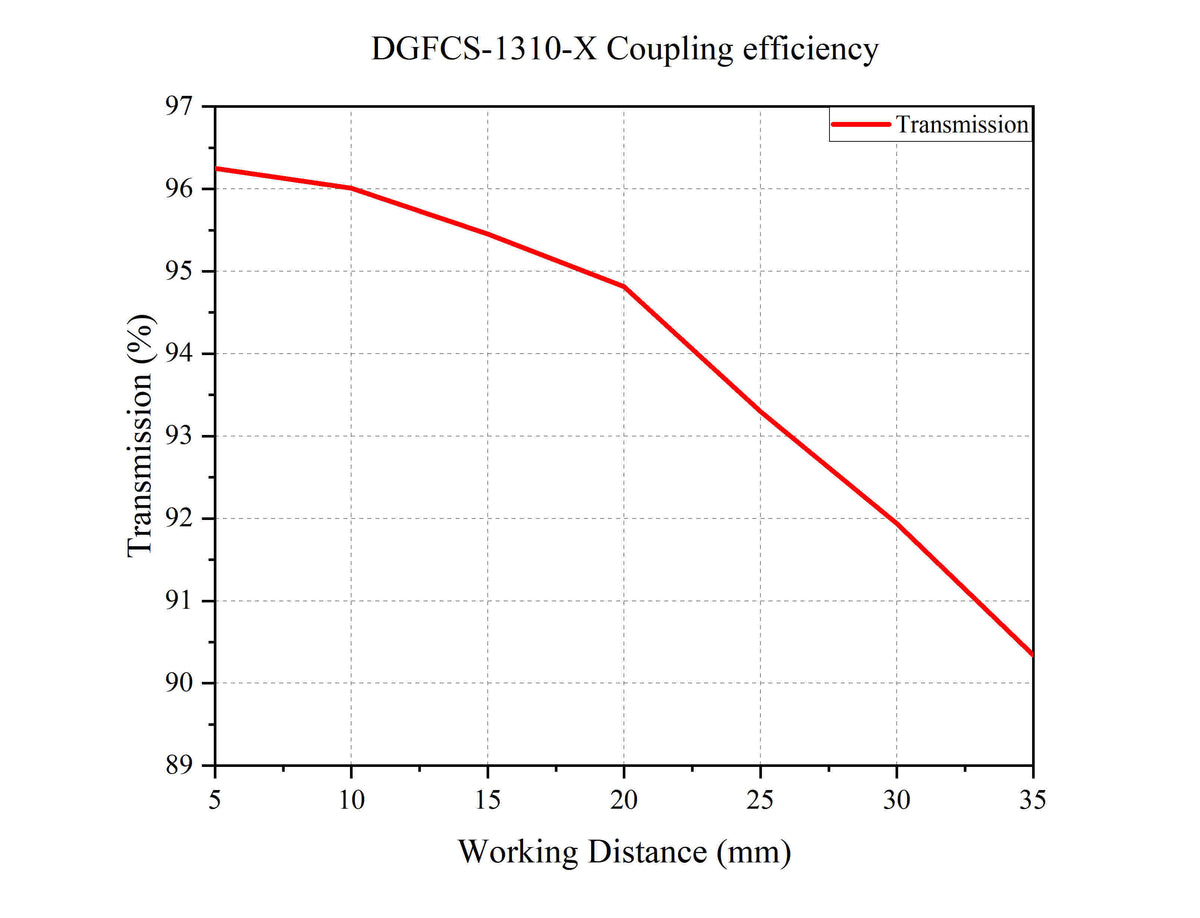

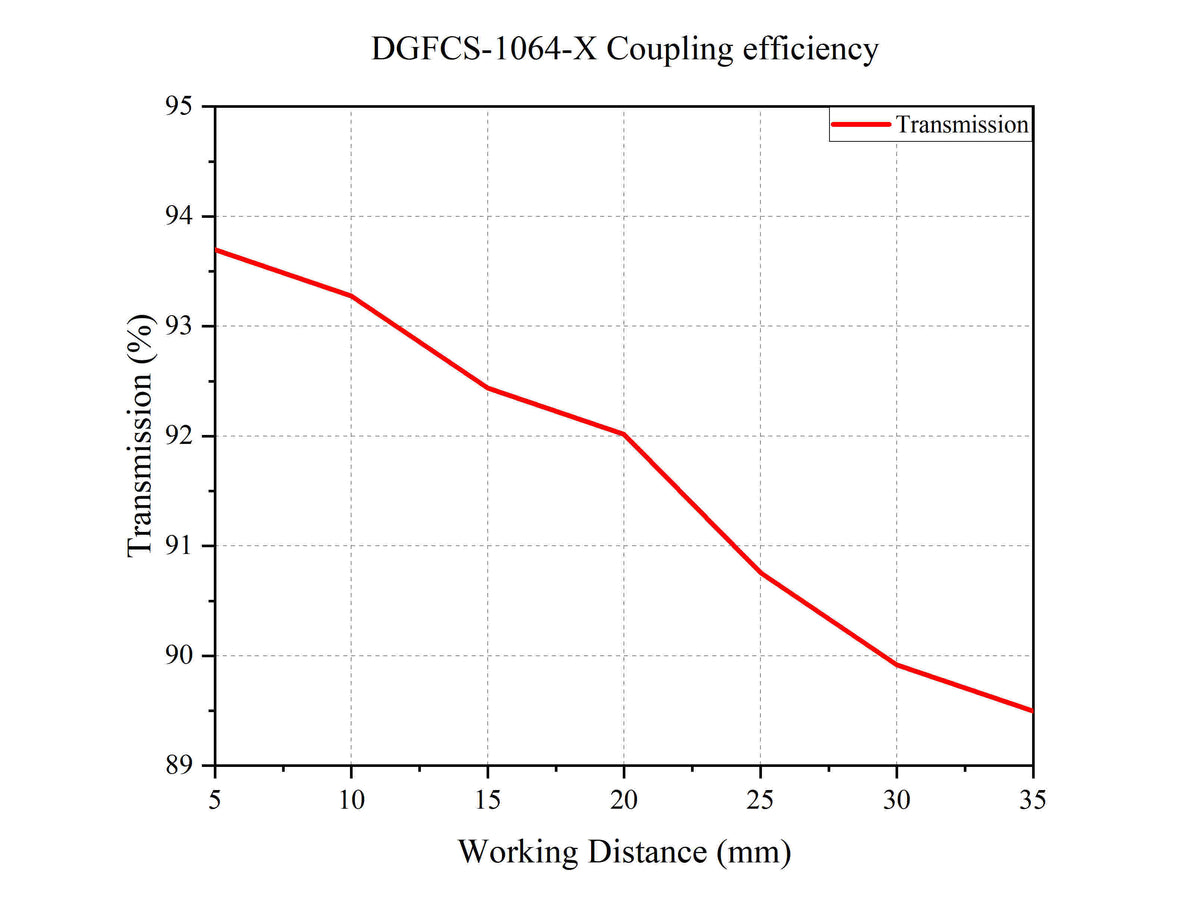

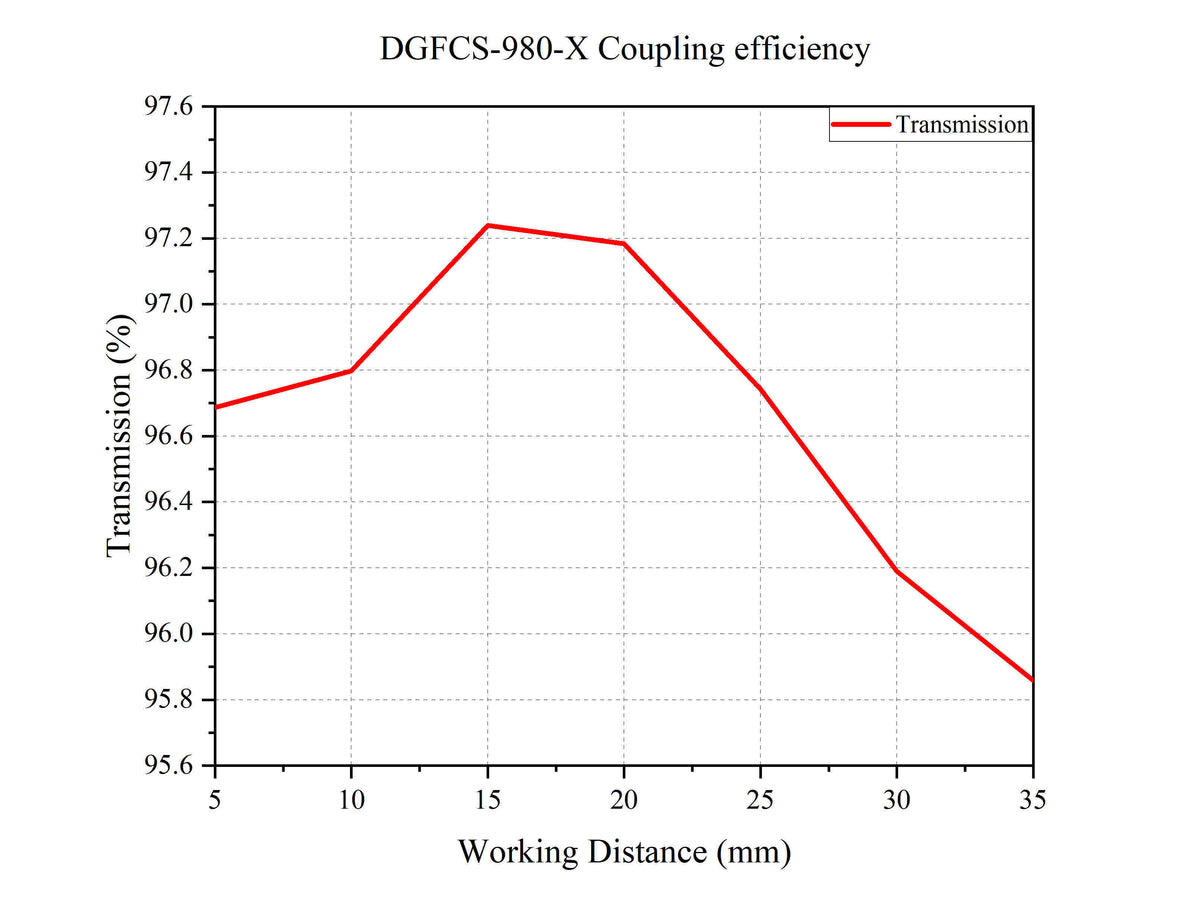

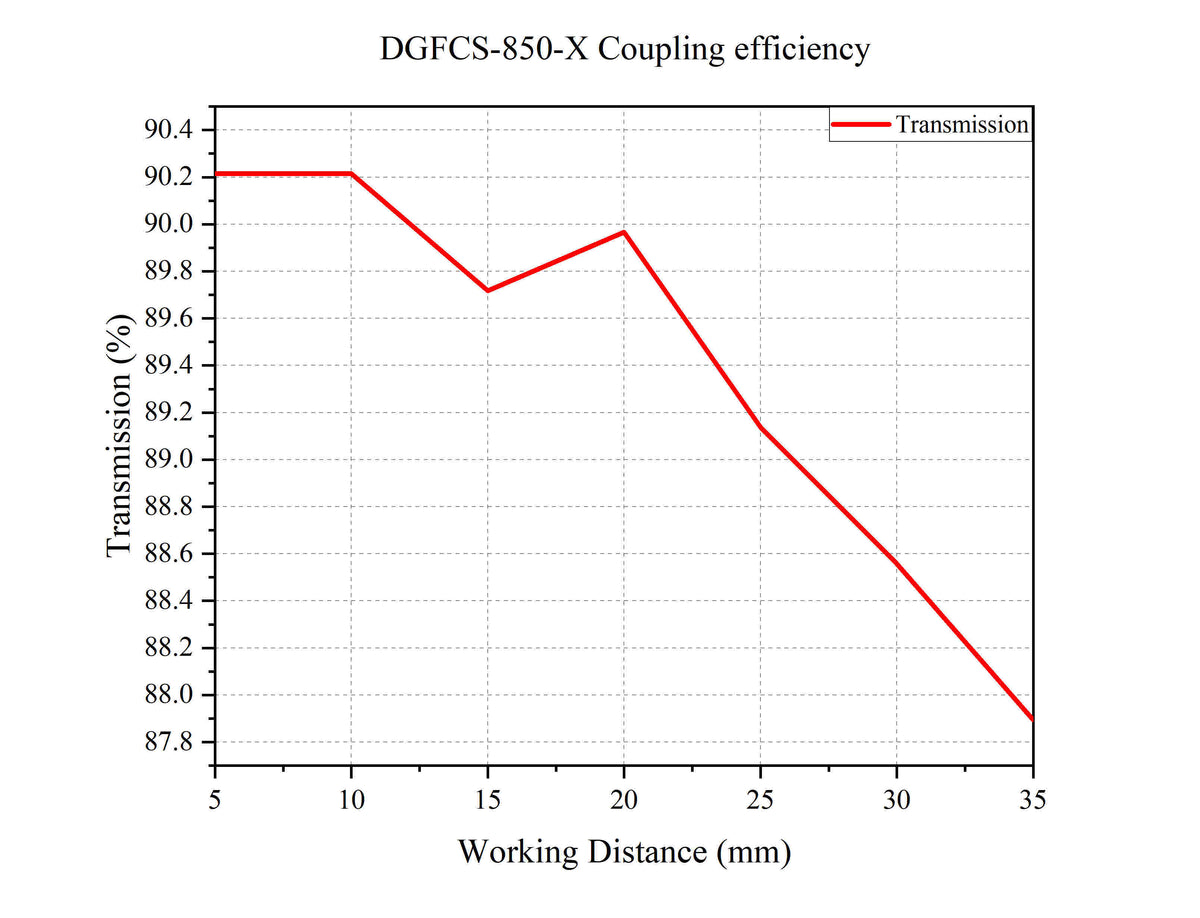

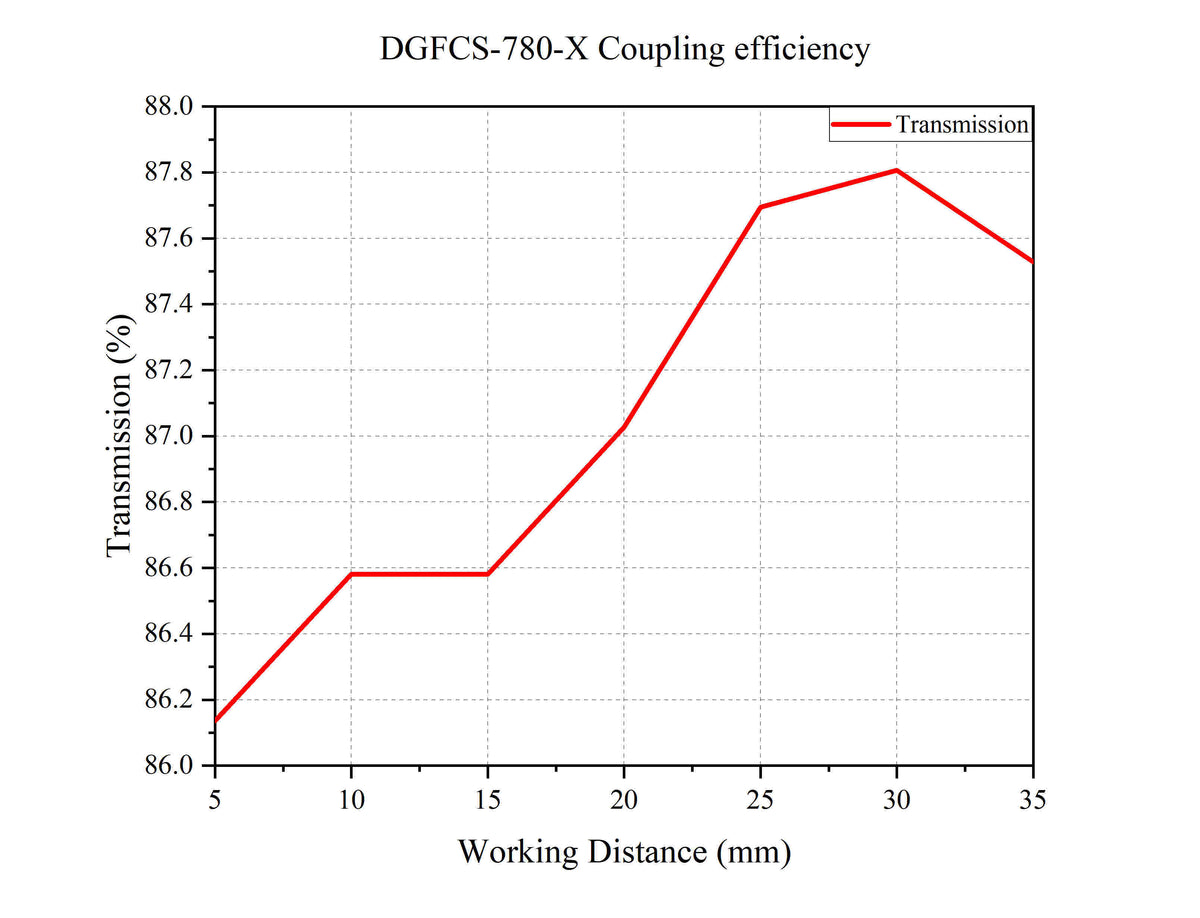

LBTEK's GRIN collimators consist of a connector, optical fiber, and collimating head, which can effectively collimate the light transmitted through the fiber and output it into free space. They can also function as receivers to couple parallel beams from free space back into the fiber for transmission. These small-spot pigtailed collimators are commonly used in miniaturized communication devices to output light from the fiber into free space via the collimator. After undergoing filtering, polarization, or other processing, the light is then coupled back into the fiber by another collimator at the opposite end. As a result, they have a short working distance. Since gradient index products are manufactured in pairs for coupling purposes, each box contains two collimators to facilitate paired usage. They feature extremely low pairing loss and can provide exceptionally high coupling efficiency.

• Design wavelength: 630 nm, 780 nm, 850 nm, 980 nm, 1064 nm, 1310 nm, 1550 nm
• Gradient-index lens used
• Coupling use
