Plano-Convex Lens, UVFS, AR Coating: 400 nm-1100 nm, Unmounted CX20312-AB

Name: Plano-Convex Lens, UVFS, AR Coating: 400 nm-1100 nm, Unmounted CX20312-AB
Brand: WaveQuanta
SKU: CX20312-AB
Price: 142.25 SGD
Availability: InStock

CX20312-AB

$142.25

In Stock

Key Specifications

Wavelength 400.0nm

Diameter 12.7mm

Reflectance 1.0%

Request Quote

Design Tools

Gaussian Beam Calculator Model beam propagation through your optical system LIDT Calculator Verify damage threshold for your laser parameters Wavelength \u2194 Wavenumber Convert between wavelength, frequency, and energy

View all 49 calculators →

RoHS REACH

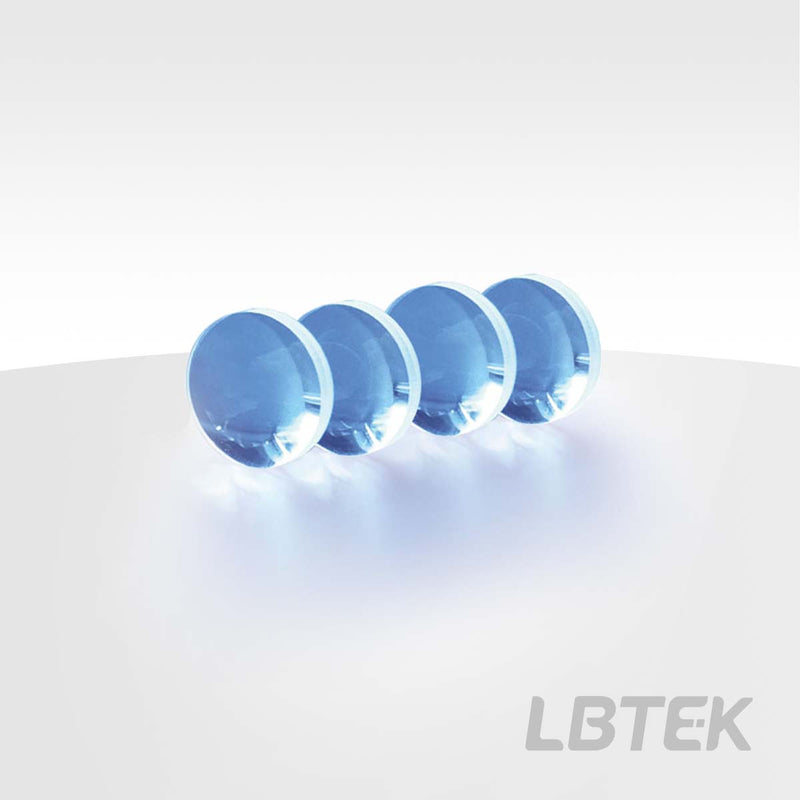

Plano-Convex Lens, UVFS, AR Coating: 400 nm-1100 nm, Unmounted — Model CX20312-AB

Operating wavelength 400 nm-1100 nm, focal length 75.3 mm, Ø12.7 mm, substrate UV Fused Silica.

Product Description

Optical Material: UV fused silica;
Operating wavelength: 400 nm-1100 nm;
Application: Imaging, beam expander or reducer, convergence;

The plano-convex lenses from LBTEK feature positive focal lengths and are commonly used for imaging or beam collimation applications. Manufactured using RoHS-compliant UVFS glass, a material particularly suitable for ultraviolet and near-infrared band. All circular lenses from LBTEK can be mounted in LBTEK standard lens tubes, fixed lens mount, and various coaxial mounting plates, allowing customers to select the optimal mounting solution for different application scenarios.

Plano-Convex Lens, UVFS, AR Coating: 400 nm-1100 nm, Unmounted

Substrate Material: UVFS;
Operating Wavelength: 400 nm-1100 nm;
Application: Imaging, Collimation, Beam Expander;

LBTEK lenses are often mounted on fixed lens mounts.

Clear Aperture	90% CA
Operating Wavelength	400 nm-1100 nm
Diameter	12.7 mm
Eccentricity	≤3 arcmin
Design Wavelength	587.6 nm

Specification Sheet PDF — Download

3D Model (STL) STL — Download

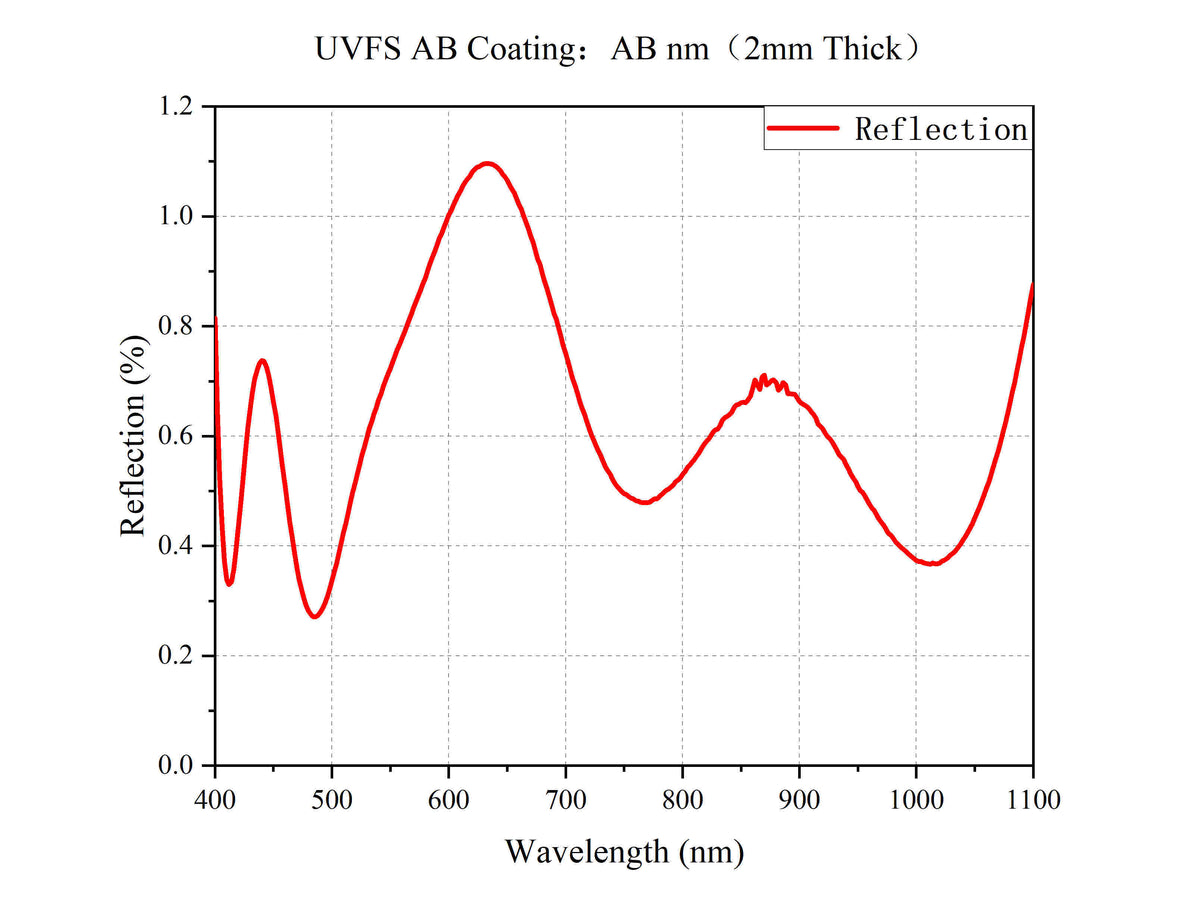

Curve - UVFS AB

Product Family: Plano-Convex Lens, UV Fused Silica, Anti-Reflective Coating: 400 nm-1100 nm (44 variants)

Product ▴▾	SKU	Size ▴▾	Clear Aperture ▴▾	Operating Wavelength ▴▾
Plano-Convex Lens, UVFS, AR Coating: 400 nm-1100 nm, Unmounted CX20608-AB	`CX20608-AB`	25.4 mm	90% CA	400 nm-1100 nm	View
Plano-Convex Lens, UVFS, AR Coating: 400 nm-1100 nm, Unmounted CX20610-AB	`CX20610-AB`	25.4 mm	90% CA	400 nm-1100 nm	View
Plano-Convex Lens, UVFS, AR Coating: 400 nm-1100 nm, Unmounted CX20612-AB	`CX20612-AB`	25.4 mm	90% CA	400 nm-1100 nm	View
Plano-Convex Lens, UVFS, AR Coating: 400 nm-1100 nm, Unmounted CX20613-AB	`CX20613-AB`	25.4 mm	90% CA	400 nm-1100 nm	View
Plano-Convex Lens, UVFS, AR Coating: 400 nm-1100 nm, Unmounted CX20614-AB	`CX20614-AB`	25.4 mm	90% CA	400 nm-1100 nm	View
Plano-Convex Lens, UVFS, AR Coating: 400 nm-1100 nm, Unmounted CX20615-AB	`CX20615-AB`	25.4 mm	90% CA	400 nm-1100 nm	View
Plano-Convex Lens, UVFS, AR Coating: 400 nm-1100 nm, Unmounted CX20617-AB	`CX20617-AB`	25.4 mm	90% CA	400 nm-1100 nm	View
Plano-Convex Lens, UVFS, AR Coating: 400 nm-1100 nm, Unmounted CX20618-AB	`CX20618-AB`	25.4 mm	90% CA	400 nm-1100 nm	View
Plano-Convex Lens, UVFS, AR Coating: 400 nm-1100 nm, Unmounted CX20619-AB	`CX20619-AB`	25.4 mm	90% CA	400 nm-1100 nm	View
Plano-Convex Lens, UVFS, AR Coating: 400 nm-1100 nm, Unmounted CX20621-AB	`CX20621-AB`	25.4 mm	90% CA	400 nm-1100 nm	View
Plano-Convex Lens, UVFS, AR Coating: 400 nm-1100 nm, Unmounted CX20304-AB	`CX20304-AB`	12.7 mm	90% CA	400 nm-1100 nm	View
Plano-Convex Lens, UVFS, AR Coating: 400 nm-1100 nm, Unmounted CX20307-AB	`CX20307-AB`	12.7 mm	90% CA	400 nm-1100 nm	View
Plano-Convex Lens, UVFS, AR Coating: 400 nm-1100 nm, Unmounted CX20309-AB	`CX20309-AB`	12.7 mm	90% CA	400 nm-1100 nm	View
Plano-Convex Lens, UVFS, AR Coating: 400 nm-1100 nm, Unmounted CX20310-AB	`CX20310-AB`	12.7 mm	90% CA	400 nm-1100 nm	View
Plano-Convex Lens, UVFS, AR Coating: 400 nm-1100 nm, Unmounted CX20312-AB Current	`CX20312-AB`	12.7 mm	90% CA	400 nm-1100 nm
