What are the physical dimensions of Plano-convex lens, UVFS, AR coating: 400 nm-1100 nm, with mounting MCX20612-AB?

Plano-convex lens, UVFS, AR coating: 400 nm-1100 nm, with mounting MCX20612-AB dimensions: Diameter: 25.4 mm.

What documentation is available for Plano-convex lens, UVFS, AR coating: 400 nm-1100 nm, with mounting MCX20612-AB?

The following documents are available for download on the Plano-convex lens, UVFS, AR coating: 400 nm-1100 nm, with mounting MCX20612-AB product page: Spec sheet. CAD drawing.Visit the Documents tab for direct download links.

WaveQuanta

Plano-convex lens, UVFS, AR coating: 400 nm-1100 nm, with mounting MCX20612-AB

Name: Plano-convex lens, UVFS, AR coating: 400 nm-1100 nm, with mounting MCX20612-AB
Brand: WaveQuanta
SKU: MCX20612-AB
Price: 179.06 SGD
Availability: InStock

MCX20612-AB

$179.06

In Stock

Key Specifications

Wavelength 400.0nm

Diameter 25.4mm

Reflectance 1.0%

Request Quote

Design Tools

Gaussian Beam Calculator Model beam propagation through your optical system LIDT Calculator Verify damage threshold for your laser parameters Wavelength \u2194 Wavenumber Convert between wavelength, frequency, and energy

View all 49 calculators →

RoHS REACH

Plano-convex lens, UVFS, AR coating: 400 nm-1100 nm, with mounting — Model MCX20612-AB

Operating wavelength 400 nm-1100 nm, focal length 75.3 mm, Ø25.4 mm, substrate UV Fused Silica.

Product Description

Optical Material: UV fused silica;
Operating wavelength: 400 nm-1100 nm;
Application: Imaging, beam expander or reducer, convergence;

The plano-convex lenses from LBTEK feature positive focal lengths and are commonly used for imaging or beam collimation applications. Manufactured using RoHS-compliant UVFS glass, a material particularly suitable for ultraviolet and near-infrared band. All circular lenses from LBTEK can be mounted in LBTEK standard lens tubes, fixed lens mount, and various coaxial mounting plates, allowing customers to select the optimal mounting solution for different application scenarios.

Plano-convex lens, UVFS, AR coating: 400 nm-1100 nm, with mounting

Substrate Material: UVFS
Operating Wavelength: 400 nm-1100 nm
Application: Imaging, Collimation, Beam Expansion

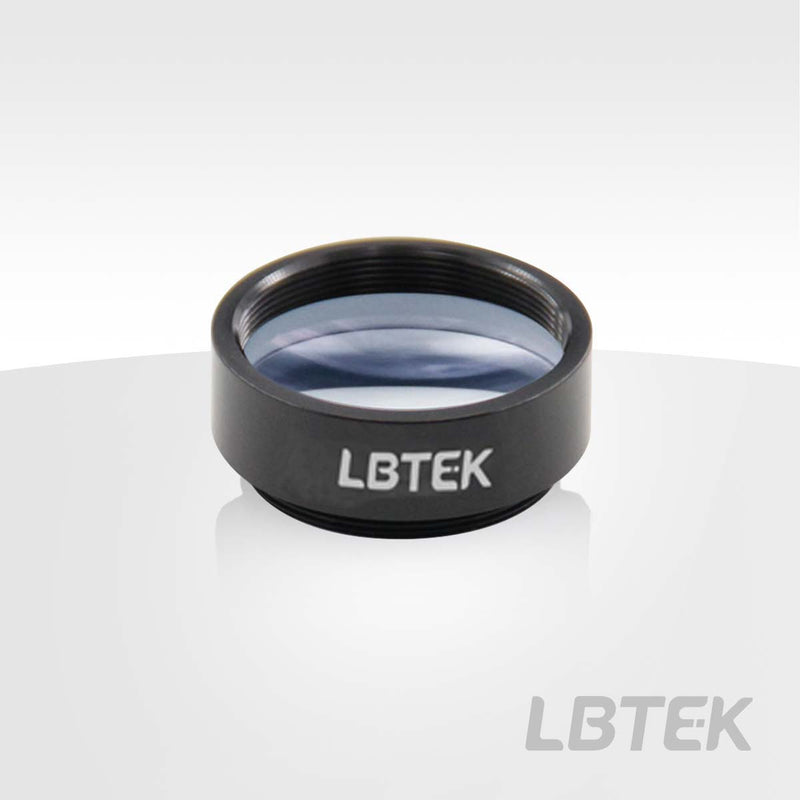

LBTEK plano-convex lenses are made of UV fused silica glass, which offers better homogeneity and a lower coefficient of thermal expansion compared to N-BK7 glass, making them suitable for ultraviolet and near-infrared wavelength ranges. LBTEK plano-convex lenses have a positive focal length and are commonly used in applications such as imaging or beam collimation. LBTEK mounted lenses are pre-installed in standard lens tubes, with the product model, type, diameter, and focal length engraved on the tube surface for easy identification of lens parameters.

Clear Aperture	90% CA
Operating Wavelength	400 nm-1100 nm
Diameter	25.4 mm
Eccentricity	≤3 arcmin
Design Wavelength	587.6 nm

Specification Sheet PDF — Download

CAD Drawing Download

Product Family: Plano-Convex Lens, UV Fused Silica, Anti-Reflective Coating: 400 nm-1100 nm (44 variants)

Product ▴▾	SKU	Size ▴▾	Clear Aperture ▴▾	Operating Wavelength ▴▾
Plano-Convex Lens, UVFS, AR Coating: 400 nm-1100 nm, Unmounted CX20608-AB	`CX20608-AB`	25.4 mm	90% CA	400 nm-1100 nm	View
Plano-Convex Lens, UVFS, AR Coating: 400 nm-1100 nm, Unmounted CX20610-AB	`CX20610-AB`	25.4 mm	90% CA	400 nm-1100 nm	View
Plano-Convex Lens, UVFS, AR Coating: 400 nm-1100 nm, Unmounted CX20612-AB	`CX20612-AB`	25.4 mm	90% CA	400 nm-1100 nm	View
Plano-Convex Lens, UVFS, AR Coating: 400 nm-1100 nm, Unmounted CX20613-AB	`CX20613-AB`	25.4 mm	90% CA	400 nm-1100 nm	View
Plano-Convex Lens, UVFS, AR Coating: 400 nm-1100 nm, Unmounted CX20614-AB	`CX20614-AB`	25.4 mm	90% CA	400 nm-1100 nm	View
Plano-Convex Lens, UVFS, AR Coating: 400 nm-1100 nm, Unmounted CX20615-AB	`CX20615-AB`	25.4 mm	90% CA	400 nm-1100 nm	View
Plano-Convex Lens, UVFS, AR Coating: 400 nm-1100 nm, Unmounted CX20617-AB	`CX20617-AB`	25.4 mm	90% CA	400 nm-1100 nm	View
Plano-Convex Lens, UVFS, AR Coating: 400 nm-1100 nm, Unmounted CX20618-AB	`CX20618-AB`	25.4 mm	90% CA	400 nm-1100 nm	View
Plano-Convex Lens, UVFS, AR Coating: 400 nm-1100 nm, Unmounted CX20619-AB	`CX20619-AB`	25.4 mm	90% CA	400 nm-1100 nm	View
Plano-Convex Lens, UVFS, AR Coating: 400 nm-1100 nm, Unmounted CX20621-AB	`CX20621-AB`	25.4 mm	90% CA	400 nm-1100 nm	View
Plano-Convex Lens, UVFS, AR Coating: 400 nm-1100 nm, Unmounted CX20304-AB	`CX20304-AB`	12.7 mm	90% CA	400 nm-1100 nm	View
Plano-Convex Lens, UVFS, AR Coating: 400 nm-1100 nm, Unmounted CX20307-AB	`CX20307-AB`	12.7 mm	90% CA	400 nm-1100 nm	View
Plano-Convex Lens, UVFS, AR Coating: 400 nm-1100 nm, Unmounted CX20309-AB	`CX20309-AB`	12.7 mm	90% CA	400 nm-1100 nm	View
Plano-Convex Lens, UVFS, AR Coating: 400 nm-1100 nm, Unmounted CX20310-AB	`CX20310-AB`	12.7 mm	90% CA	400 nm-1100 nm	View
Plano-Convex Lens, UVFS, AR Coating: 400 nm-1100 nm, Unmounted CX20312-AB	`CX20312-AB`	12.7 mm	90% CA	400 nm-1100 nm	View
Plano-Convex Lens, UVFS, AR Coating: 400 nm-1100 nm, Unmounted CX20313-AB	`CX20313-AB`	12.7 mm	90% CA	400 nm-1100 nm	View
Plano-Convex Lens, UVFS, AR Coating: 400 nm-1100 nm, Unmounted CX20811-AB	`CX20811-AB`	50.8 mm	90% CA	400 nm-1100 nm	View
Plano-Convex Lens, UVFS, AR Coating: 400 nm-1100 nm, Unmounted CX20813-AB	`CX20813-AB`	50.8 mm	90% CA	400 nm-1100 nm	View
Plano-Convex Lens, UVFS, AR Coating: 400 nm-1100 nm, Unmounted CX20815-AB	`CX20815-AB`	50.8 mm	90% CA	400 nm-1100 nm	View
Plano-Convex Lens, UVFS, AR Coating: 400 nm-1100 nm, Unmounted CX20817-AB	`CX20817-AB`	50.8 mm	90% CA	400 nm-1100 nm	View
Plano-Convex Lens, UVFS, AR Coating: 400 nm-1100 nm, Unmounted CX20819-AB	`CX20819-AB`	50.8 mm	90% CA	400 nm-1100 nm	View
Plano-Convex Lens, UVFS, AR Coating: 400 nm-1100 nm, Unmounted CX20821-AB	`CX20821-AB`	50.8 mm	90% CA	400 nm-1100 nm	View
Plano-convex lens, UVFS, AR coating: 400 nm-1100 nm, with mounting MCX20304-AB	`MCX20304-AB`	12.7 mm	90% CA	400 nm-1100 nm	View
Plano-convex lens, UVFS, AR coating: 400 nm-1100 nm, with mounting MCX20307-AB	`MCX20307-AB`	12.7 mm	90% CA	400 nm-1100 nm	View
Plano-convex lens, UVFS, AR coating: 400 nm-1100 nm, with mounting MCX20309-AB	`MCX20309-AB`	12.7 mm	90% CA	400 nm-1100 nm	View
Plano-convex lens, UVFS, AR coating: 400 nm-1100 nm, with mounting MCX20310-AB	`MCX20310-AB`	12.7 mm	90% CA	400 nm-1100 nm	View
Plano-convex lens, UVFS, AR coating: 400 nm-1100 nm, with mounting MCX20312-AB	`MCX20312-AB`	12.7 mm	90% CA	400 nm-1100 nm	View
Plano-convex lens, UVFS, AR coating: 400 nm-1100 nm, with mounting MCX20313-AB	`MCX20313-AB`	12.7 mm	90% CA	400 nm-1100 nm	View
Plano-convex lens, UVFS, AR coating: 400 nm-1100 nm, with mounting MCX20811-AB	`MCX20811-AB`	50.8 mm	90% CA	400 nm-1100 nm	View
Plano-convex lens, UVFS, AR coating: 400 nm-1100 nm, with mounting MCX20813-AB	`MCX20813-AB`	50.8 mm	90% CA	400 nm-1100 nm	View
Plano-convex lens, UVFS, AR coating: 400 nm-1100 nm, with mounting MCX20815-AB	`MCX20815-AB`	50.8 mm	90% CA	400 nm-1100 nm	View
Plano-convex lens, UVFS, AR coating: 400 nm-1100 nm, with mounting MCX20817-AB	`MCX20817-AB`	50.8 mm	90% CA	400 nm-1100 nm	View
Plano-convex lens, UVFS, AR coating: 400 nm-1100 nm, with mounting MCX20819-AB	`MCX20819-AB`	50.8 mm	90% CA	400 nm-1100 nm	View
Plano-convex lens, UVFS, AR coating: 400 nm-1100 nm, with mounting MCX20821-AB	`MCX20821-AB`	50.8 mm	90% CA	400 nm-1100 nm	View
Plano-convex lens, UVFS, AR coating: 400 nm-1100 nm, with mounting MCX20608-AB	`MCX20608-AB`	25.4 mm	90% CA	400 nm-1100 nm	View
Plano-convex lens, UVFS, AR coating: 400 nm-1100 nm, with mounting MCX20610-AB	`MCX20610-AB`	25.4 mm	90% CA	400 nm-1100 nm	View
Plano-convex lens, UVFS, AR coating: 400 nm-1100 nm, with mounting MCX20612-AB Current	`MCX20612-AB`	25.4 mm	90% CA	400 nm-1100 nm
Plano-convex lens, UVFS, AR coating: 400 nm-1100 nm, with mounting MCX20613-AB	`MCX20613-AB`	25.4 mm	90% CA	400 nm-1100 nm	View
Plano-convex lens, UVFS, AR coating: 400 nm-1100 nm, with mounting MCX20614-AB	`MCX20614-AB`	25.4 mm	90% CA	400 nm-1100 nm	View
Plano-convex lens, UVFS, AR coating: 400 nm-1100 nm, with mounting MCX20615-AB	`MCX20615-AB`	25.4 mm	90% CA	400 nm-1100 nm	View
Plano-convex lens, UVFS, AR coating: 400 nm-1100 nm, with mounting MCX20617-AB	`MCX20617-AB`	25.4 mm	90% CA	400 nm-1100 nm	View
Plano-convex lens, UVFS, AR coating: 400 nm-1100 nm, with mounting MCX20618-AB	`MCX20618-AB`	25.4 mm	90% CA	400 nm-1100 nm	View
Plano-convex lens, UVFS, AR coating: 400 nm-1100 nm, with mounting MCX20619-AB	`MCX20619-AB`	25.4 mm	90% CA	400 nm-1100 nm	View
Plano-convex lens, UVFS, AR coating: 400 nm-1100 nm, with mounting MCX20621-AB	`MCX20621-AB`	25.4 mm	90% CA	400 nm-1100 nm	View
