Plano-Convex Lens, UVFS, AR Coating: 400 nm-1100 nm, Unmounted — Model CX20612-AB

Operating wavelength 400 nm-1100 nm, focal length 75.3 mm, Ø25.4 mm, substrate UV Fused Silica.

Product Description

Optical Material: UV fused silica;
Operating wavelength: 400 nm-1100 nm;
Application: Imaging, beam expander or reducer, convergence;

The plano-convex lenses from LBTEK feature positive focal lengths and are commonly used for imaging or beam collimation applications. Manufactured using RoHS-compliant UVFS glass, a material particularly suitable for ultraviolet and near-infrared band. All circular lenses from LBTEK can be mounted in LBTEK standard lens tubes, fixed lens mount, and various coaxial mounting plates, allowing customers to select the optimal mounting solution for different application scenarios.

Plano-Convex Lens, UVFS, AR Coating: 400 nm-1100 nm, Unmounted

Substrate Material: UVFS;
Operating Wavelength: 400 nm-1100 nm;
Application: Imaging, Collimation, Beam Expander;

LBTEK lenses are often mounted on fixed lens mounts.

Clear Aperture	90% CA
Operating Wavelength	400 nm-1100 nm
Diameter	25.4 mm
Eccentricity	≤3 arcmin
Design Wavelength	587.6 nm

Specification Sheet PDF — Download

3D Model (STL) STL — Download

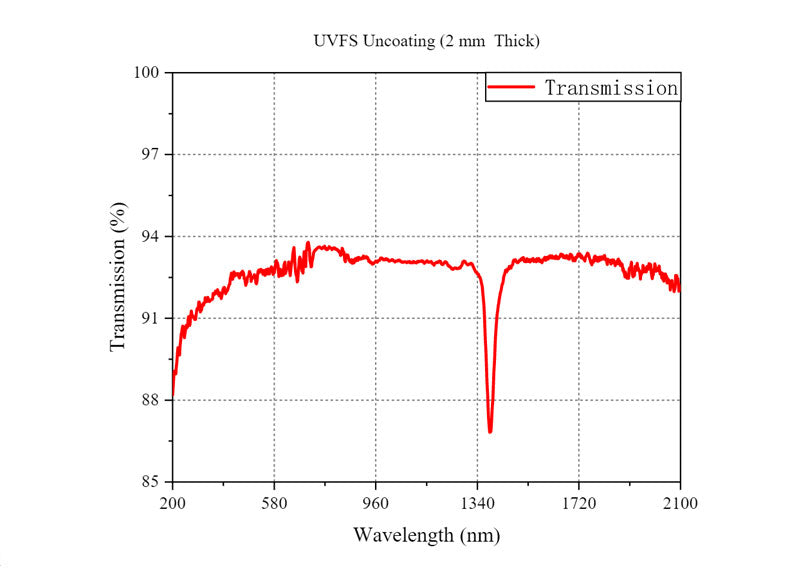

Curve - UVFS UN

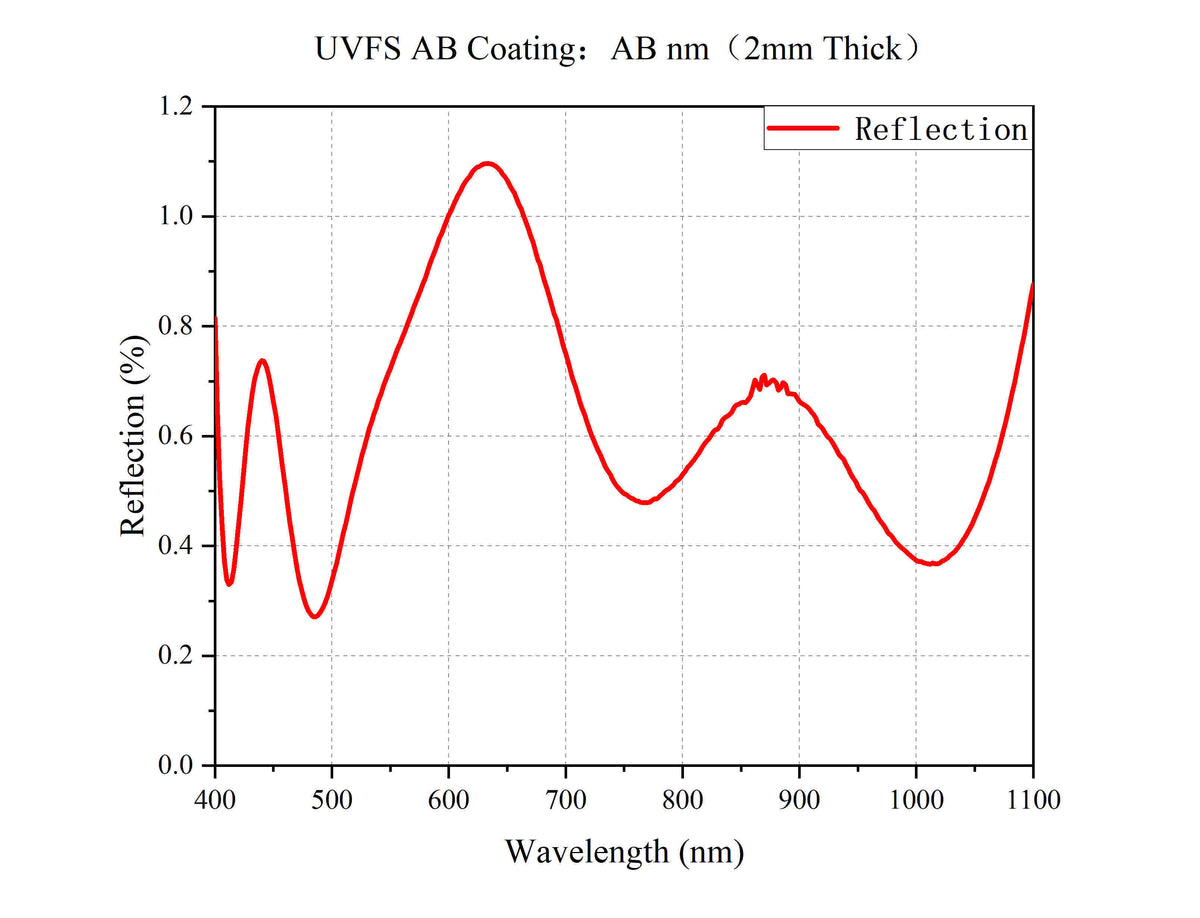

Curve - UVFS AB

Product Family: Plano-Convex Lens, UV Fused Silica, Anti-Reflective Coating: 400 nm-1100 nm (44 variants)
