Plate Clamping Arm CB-2-P5
CB-2-P5$38.67
In Stock
Design Tools
Photonics Calculators
Explore 49 free online calculators for photonics design
Unit Converters
Convert between wavelength, frequency, power, and more
View all 49 calculators →
Complete Your Setup
RoHS
REACH

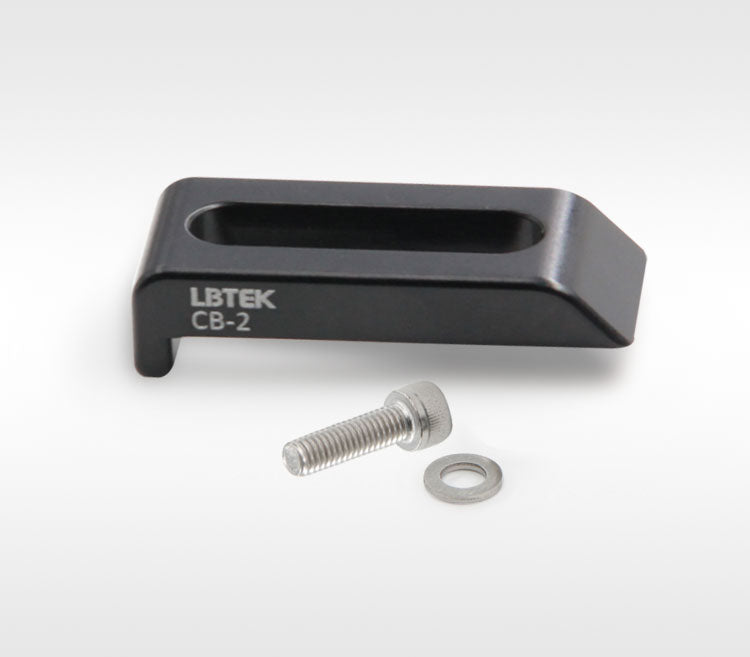

Plate Clamping Arm — Model CB-2-P5
✔ In Stock — Ships Today
The wedge-shaped tip design of CB-2 is specifically used for securing dovetail optical rails. The waist-shaped slot design allows flexible mounting of the rails on optical plates or breadboards, making it suitable for the DR50 series of rails.
Key Features
- Material: 6061-T6 Aluminum Alloy;
- Maximum Clamping Thickness: 3.7 mm;
- Groove Length: 20 mm;
Application
CB-2 is commonly used for fixing dovetail rails.
No specifications available for this product.
CAD Drawing
Download
Click and drag to rotate. Scroll to zoom.
Product Family: Plate Clamping Arm (7 variants)
| Product | SKU | Size | Clear Aperture | Operating Wavelength | |
|---|---|---|---|---|---|
| Plate Clamping Arm CB-3 |
CB-3
| — | — | — | View |
| Plate Clamping Arm CB-3-P5 |
CB-3-P5
| — | — | — | View |
| Plate Clamping Arm CP20 |
CP20
| — | — | — | View |
| Plate Clamping Arm CB-2 |
CB-2
| — | — | — | View |
| Plate Clamping Arm CB-2-P5 Current |
CB-2-P5
| — | — | — | |
| Plate Clamping Arm CB-1 |
CB-1
| — | — | — | View |
| Plate Clamping Arm CB-1-P5 |
CB-1-P5
| — | — | — | View |
