Plate Clamping Arm — Model CB-3-P5
✔ In Stock — Ships Today

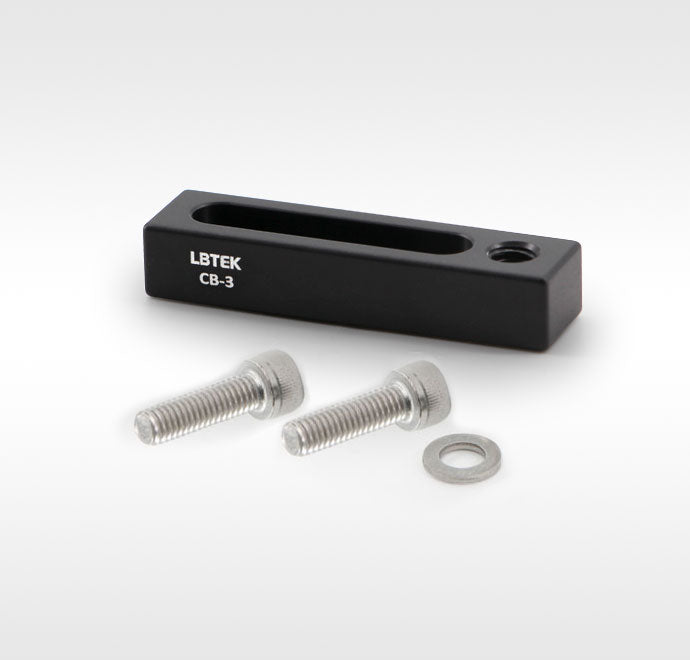

The CB-3 from LBTEK features a linear design compatible with most optomechanical products, including PB-1, PB-2, PB-3, PB-4, and breadboards. With a minimum clamping thickness of 6.5 mm, it comes with two M6 socket head cap screws and one spacer.
Key Features
- Material: 6061-T6 Aluminum Alloy;
- Minimum Clamping Thickness: 6.5 mm;
- Waist-Shaped Groove Length: 28.5 mm;
Application
CB-3 can be used for breadboard fixation.
No specifications available for this product.
CAD Drawing
Download
Click and drag to rotate. Scroll to zoom.
Product Family: Plate Clamping Arm (7 variants)
| Product | SKU | Size | Clear Aperture | Operating Wavelength | |
|---|---|---|---|---|---|
| Plate Clamping Arm CB-3 |
CB-3
| — | — | — | View |
| Plate Clamping Arm CB-3-P5 Current |
CB-3-P5
| — | — | — | |
| Plate Clamping Arm CP20 |
CP20
| — | — | — | View |
| Plate Clamping Arm CB-2 |
CB-2
| — | — | — | View |
| Plate Clamping Arm CB-2-P5 |
CB-2-P5
| — | — | — | View |
| Plate Clamping Arm CB-1 |
CB-1
| — | — | — | View |
| Plate Clamping Arm CB-1-P5 |
CB-1-P5
| — | — | — | View |
