Plate Clamping Arm — Model CP20
✔ In Stock — Ships Today

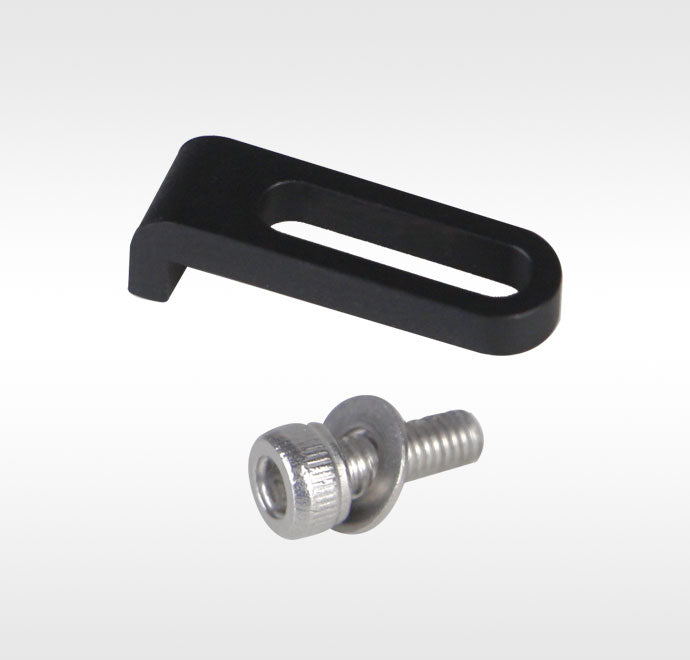

The CP20 clamping plate from LBTEK features an L-shaped design compatible with various optomechanical components including the OFB series fiber optic holders, OFF32 fiber optic mounts, and OFH series fiber clamps. With a maximum clamping thickness of 3.2 mm, it accommodates additional tapped mounting holes for flexible installation on mounting plates. The package includes two M3 socket head cap screws and two spacers for immediate use.
Key Features
- Material: 6061-T6 Aluminum Alloy;
- Maximum Clamping Thickness: 3.2 mm;
- Waist-Shaped Groove Length: 10 mm;
Application
CP20 clamps and secures the fiber optic holder OFH01, and mounts it on a multi-axis translation stage.
No specifications available for this product.
CAD Drawing
Download
Click and drag to rotate. Scroll to zoom.
Product Family: Plate Clamping Arm (7 variants)
