Polarization-Maintaining Fiber Faraday Mirrors PMFM-2000-FU
PMFM-2000-FU$361.84
In Stock
Key Specifications
Wavelength
200015.0nm
Design Tools
Gaussian Beam Calculator
Model beam propagation through your optical system
Wavelength \u2194 Wavenumber
Convert between wavelength, frequency, and energy
View all 49 calculators →
Complete Your Setup
RoHS
REACH

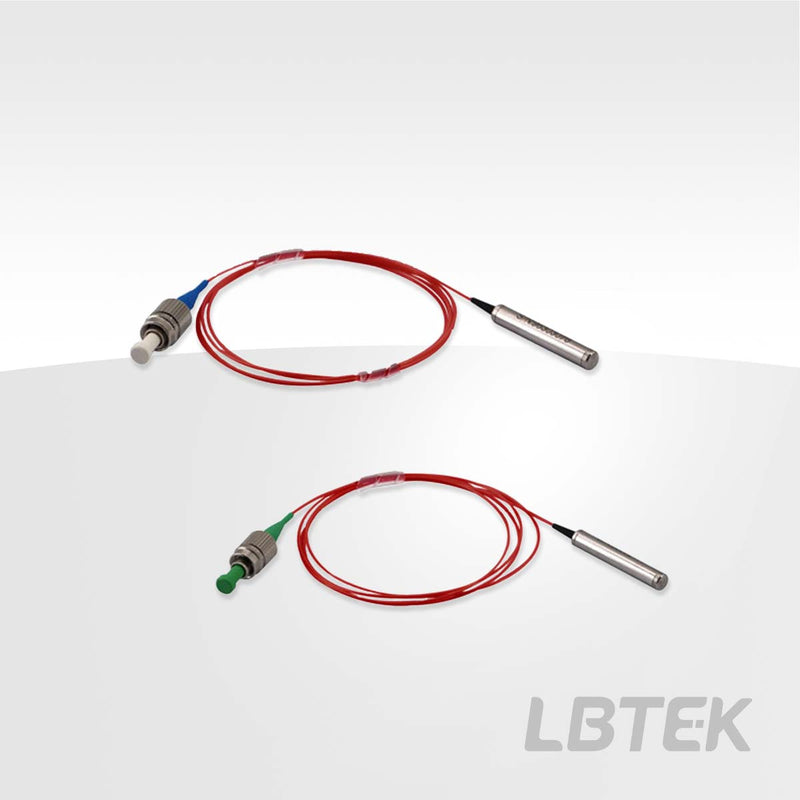

The LBTEK Polarization-Maintaining Fiber Faraday Mirror is primarily composed of a fiber collimator, Faraday rotation crystal, magnetic ring, and planar mirror (typically a reflective filter). It features low insertion loss, minimal rotation angle error, and excellent environmental stability and reliability, effectively minimizing parameter variations caused by thermal and mechanical disturbances in the fiber. The device comes with polarization-maintaining single-mode fiber and can be applied in polarization-maintaining optical systems. All LBTEK Fiber Faraday Mirrors undergo rigorous testing before leaving the factory and are accompanied by test datasheets for customer reference.
- Operating Wavelength: 1064 nm – 2000nm Available
- Rotation Angle 90° (Incident → Emergent)
- Bandwidth ±15nm
- FC/APC or FC/UPC Connector
| Operating Wavelength | 2000±15 nm |
| Connector Type | FC/UPC |
| Rotation Angle (Bidirectional) | 90±3 ° |
| Operating Temperature | -5~+70 °C |
| Fiber Type | PM1950, 900 µm Loose Hytrel® Tube |
| Fiber length | 1 m |
| Extinction ratio | ≥ 20 dB |
| Storage Temperature | -40~+85 °C |
| Insertion Loss | ≤ 0.9 dB |
| Optical Power | 300 mW |
| Package Dimensions | Ø5.5 mm×L35 mm |
| Pull Strength | 5 N |
No documents available for this product.
No CAD drawings available for this product.
