Portable Digital Optical Power Meters PMIS3WL-UVISNIR

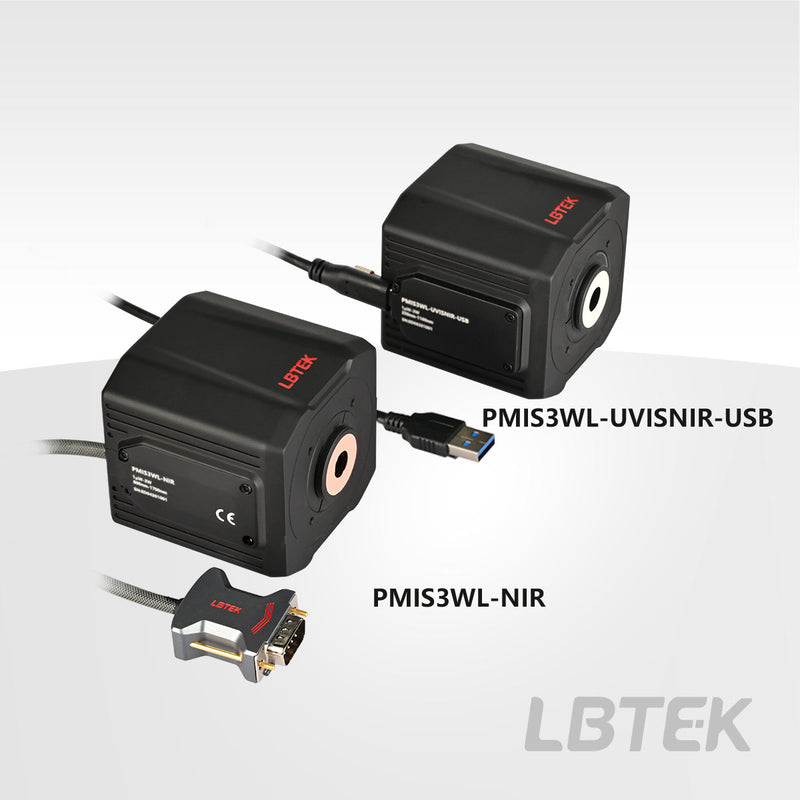

Portable Digital Optical Power Meter — Model PMIS3WL-UVISNIR

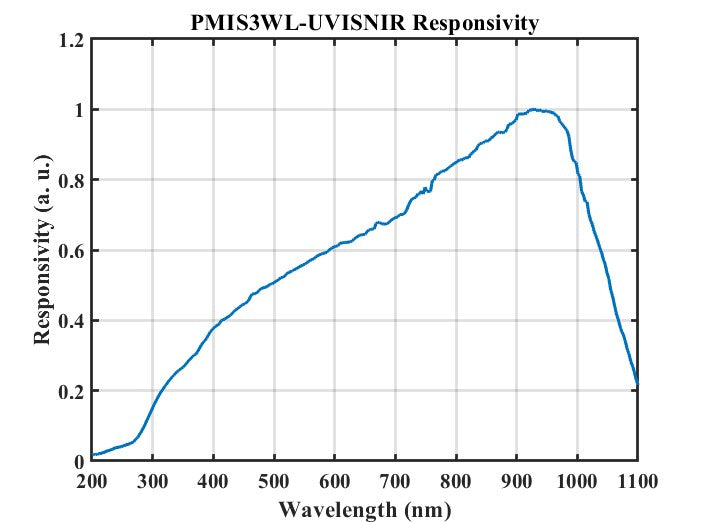

1 μW - 3 W Optical Power Meter; with 250 - 1100 nm wavelength coverage, Ø12 mm; Ø22 mm clear aperture.

Overview

The Portable Digital Optical Power Meters are fundamental tools in optical measurement. Each power meter consists of a PM series sensor and a LYNX console. The sensor converts optical signals into electrical signals, which are then amplified, filtered, and converted through analog-to-digital conversion. The console reads the digital signals and calibration data from the sensor to calculate the measurement results. All sensors undergo rigorous calibration, and the calibration results can be directly traced back to the National Institute of Metrology (NIM) of China. The host computer software supports multi-device collaborative operation, enabling simultaneous connection to multiple optical power meters and real-time acquisition/processing of their measurement data. Note: The current product series is not applicable to measurements involving pulsed light sources. Additional functional developments are forthcoming.

Key Features

• Wavelength range of 200-1700nm
• Minimum resolution 1nW, measurement error within ±3%

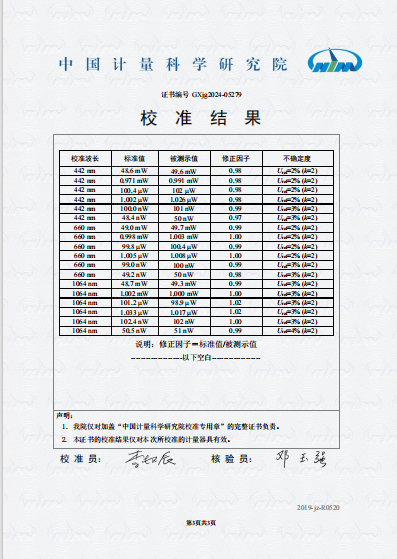

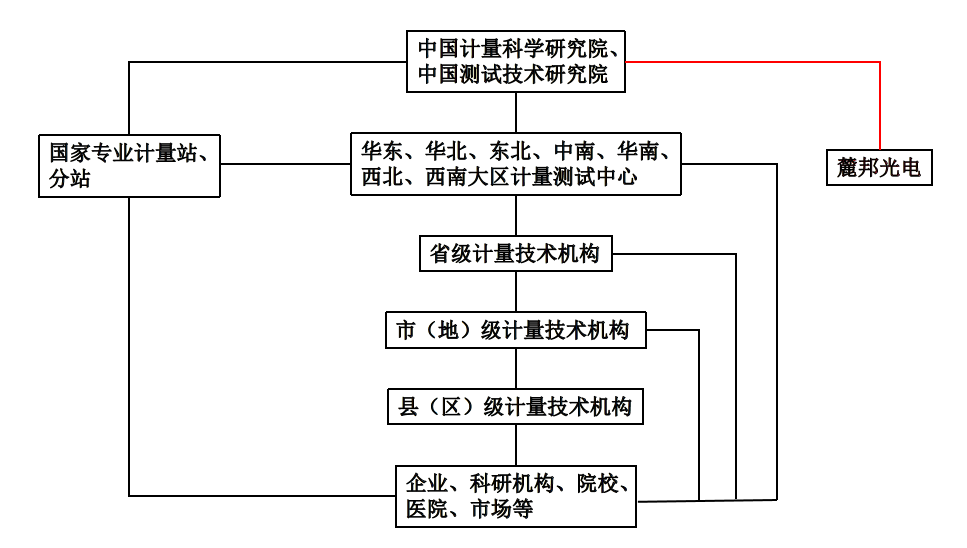

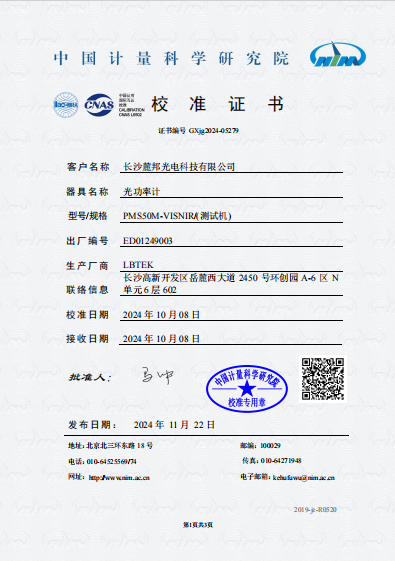

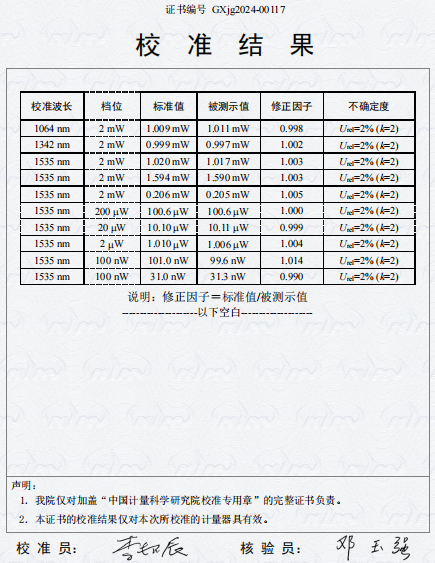

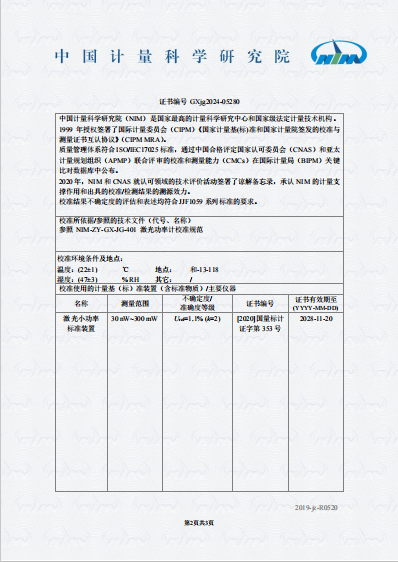

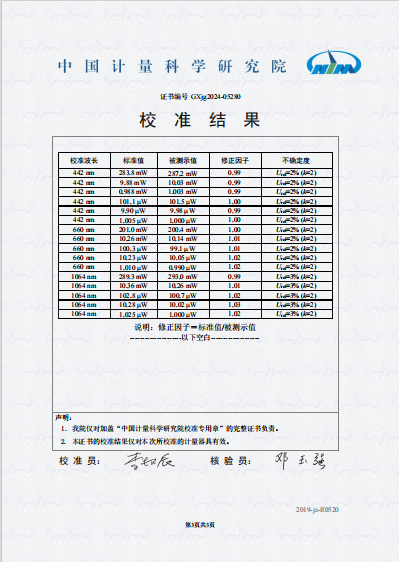

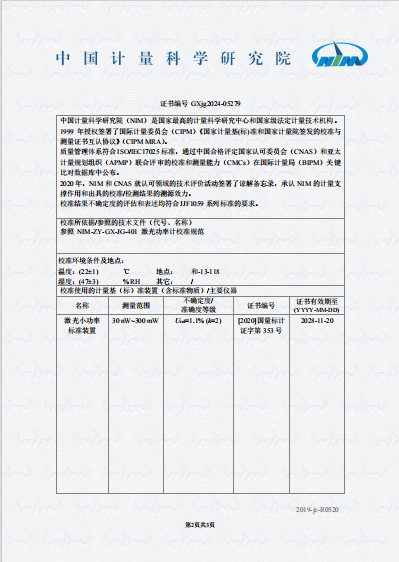

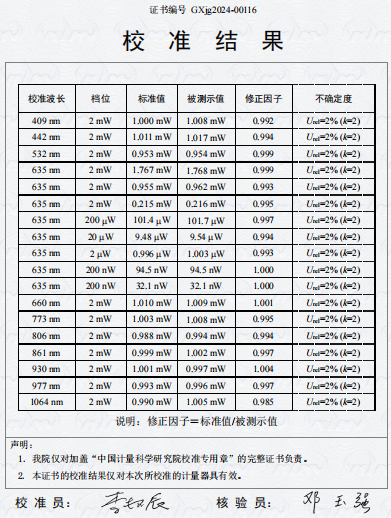

• Each sensor individually calibrated, traceable to NIM
• 5-inch LCD displays with digital touchscreen control
• The host computer software supports multichannel collaborative measurement

Applications

• measurement
