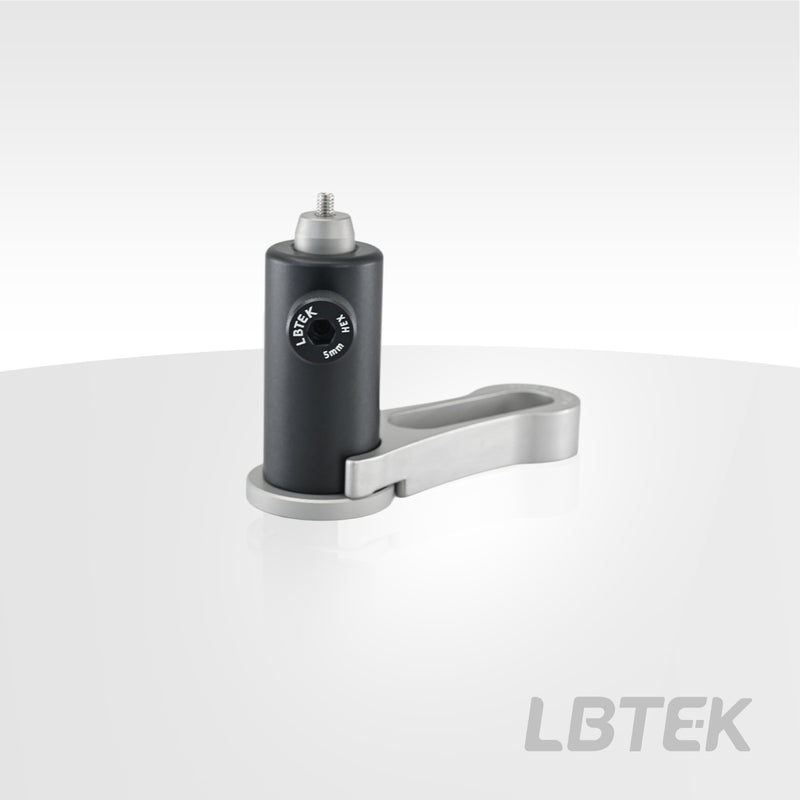

Post Holder Set KPH-100-C

āœ” In Stock ā€” Ships Today

The post holder set (C) comprises a post holder with magnetic mount, a fork-type clamp and posts in seven lengths. The post holder with magnetic base is secured through the M6 waist-type mounting holes of the fork-type clamping arm. The magnetic base provides clamping force before the fixation to the optical tables, enabling alignment adjustment. To meet diverse customer needs, LBTEK offers both individual sets and 10-set packages for all seven variants. For example, the KPH-40-C-P10 set contains three components: the OP-40 post, the PH-40B post holder with magnetic mount and the PHC-32S fork-type clamp.

Key Features

  • The set includes a post holder with magnetic mount, a fork-type clamp and posts;
  • Assortment of seven post holder lengths;
  • The set includes 12.7 mm diameter posts with an M4 screw at the top;
  • Individual sets or 10-set bundles are available;

Application

Installation effect diagram.
