Post Holder Set KPH-50-B

KPH-50-B
$44.81
In Stock
Request Quote

Design Tools

Photonics Calculators Explore 49 free online calculators for photonics design Unit Converters Convert between wavelength, frequency, power, and more
View all 49 calculators →

Complete Your Setup

Lasers & Sources Mirrors Lenses Detectors & Measurement
RoHS REACH

Post Holder Set ā€” Model KPH-50-B

āœ” In Stock ā€” Ships Today

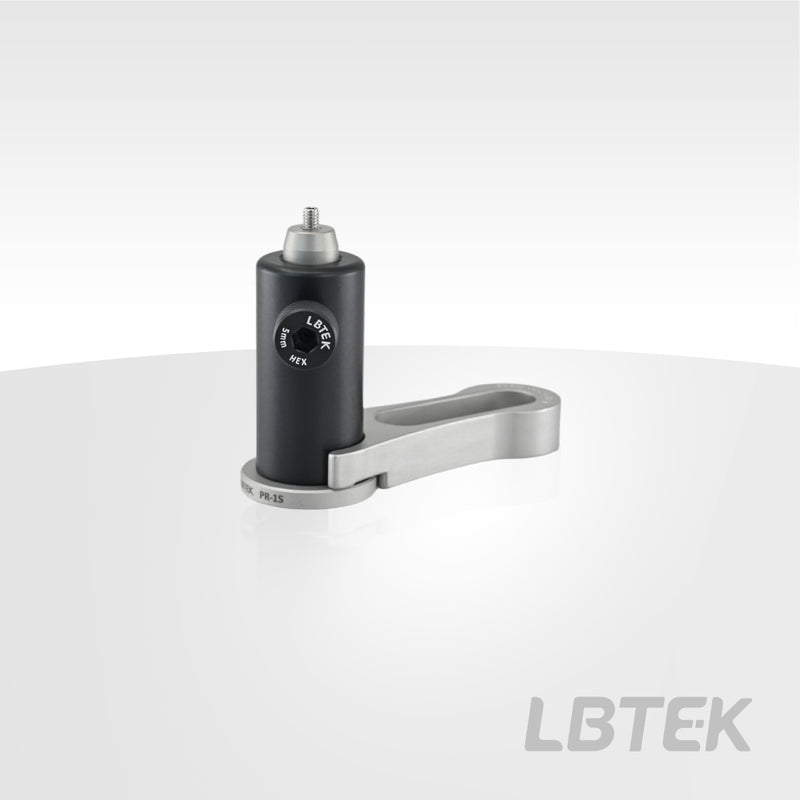

The post holder set (B) comprises a standard post holder, a magnetic mount for standard post holder, a fork-type clamp and posts in seven lengths. The magnetic mount for standard post holder is secured through the M6 waist-type mounting holes on the fork-type clamp. The magnetic mount provides clamping force for alignment adjustment before fixation on optical tables. To meet diverse customer needs, LBTEK offers both individual sets and 10-set packages for all seven variants. For example, the KPH-30-B-P10 set contains four components: the OP-30 post, the PH-30A post holder, the PR-1S magnetic mount for standard post holder and Ā the PHC-32S fork-type clamp.

Key Features

  • The set includes a standard post holder, a magnetic mount for standard post holder, a fork-type clamp and posts;
  • Assortment of seven post holder lengths;
  • The set includes 12.7 mm diameter posts with an M4 screw at the top;
  • Individual sets or 10-set bundles are available;

Application

Installation effect diagram.

No specifications available for this product.

No documents available for this product.
No CAD drawings available for this product.
