Post Holder Set ā€” Model KPH-75-A

āœ” In Stock ā€” Ships Today

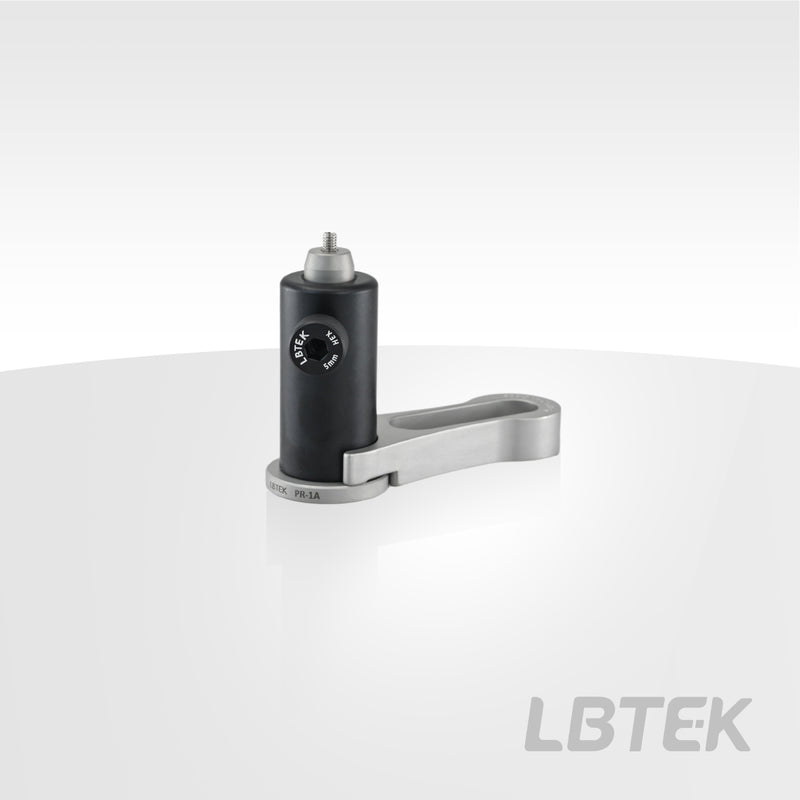

The post holder set (A) comprises a standard post holder, a non-magnetic mount for standard post holder, a fork-type clamp and posts in seven lengths. The post holder is secured through the M6 waist-type mounting holes on the fork-type clamp. To meet diverse customer needs, LBTEK offers both individual sets and 10-set packages for all seven variants. For example, the KPH-25-A-P10 set contains four components: the OP-25 post, the PH-25A post holder, the PR-1A non-magnetic mount for standard post holder and the PHC-32S fork-type clamp.

Key Features

  • The set includes a standard post holder, a non-magnetic mount for standard post holder, a fork-type clamp and posts;
  • Assortment of seven post holder lengths;
  • The set includes 12.7 mm diameter posts with an M4 screw at the top;
  • Individual sets or 10-set bundles are available;

Application

Installation effect diagram.

No specifications available for this product.

No documents available for this product.
No CAD drawings available for this product.
