Precision 100mm Dovetail Optical Rail and Accessories; — Model DR100-300
✔ In Stock — Ships Today
The precision 100 mm dovetail optical rail from LBTEK is designed for use with snap-in dovetail sliders, featuring a Ø6 mm location pin at one end and a Ø6 mm location hole at the other to enable end-to-end connection of multiple rails for length extension. The rail includes both metric and imperial scale markings, with metric graduations accurate to 1 mm and numeric indicators every 10 mm, while imperial graduations are accurate to 1/16 inch with numeric indicators every 0.5 inch for precise positioning. Multiple waist-shaped slots and M6 countersunk holes enable flexible mounting on breadboards or optical platforms. Dovetail rails are available in standard lengths of 150 mm, 300 mm, 600 mm, and 900 mm. LBTEK offers customerization for different materials, sizes, surface treatments. For specific requirements, please contact LBTEK Clientele Service.
Key Features
- Material: 6061-T6 Aluminum Alloy;
- Mounting Holes: M6 Countersunk Slotted Holes;
- With metric and imperial scales, scale accuracy of 1mm and 1/16 in;

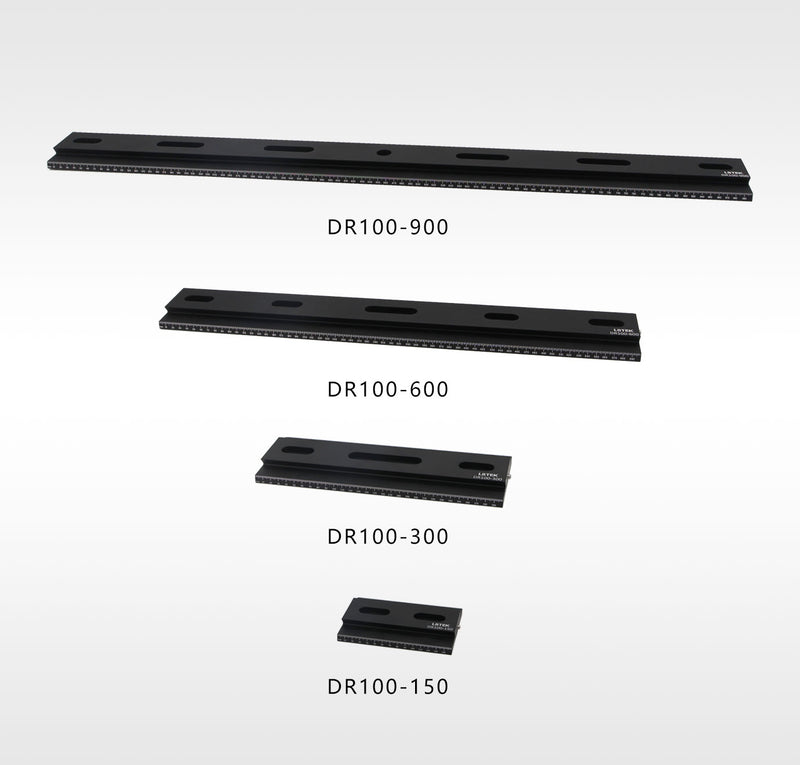

- Multiple lengths are available: 150 mm, 300 mm, 600 mm, 900 mm;
- Multiple dovetail rails can be connected end-to-end to extend length;
Application
Spring-loaded thumb screws can secure the slider at any position.
| Parallelism | <0.05 mm |
Click and drag to rotate. Scroll to zoom.
Product Family: Precision 100mm Dovetail Optical Rail and Accessories; (8 variants)
