Precision 100mm Dovetail Optical Rail and Accessories; — Model DR100F-90
✔ In Stock — Ships Today

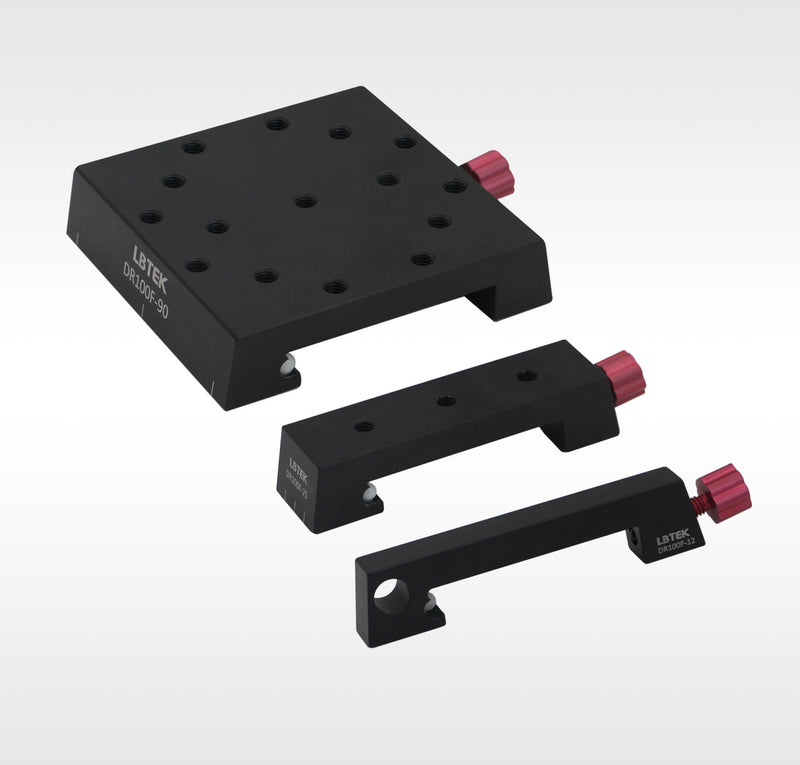

The precision 100 mm dovetail optical rail from LBTEK is compatible with DR100 series dovetail rails, featuring a spring-loaded thumb screw for securing the dovetail slide position. The DR100F-25 and DR100F-90 plates include M6 tapped holes for direct mounting of optomechanical components onto the optical rail. The DR100F-12 plate has a 12 mm width for precise component positioning with dovetail slides. LBTEK offers customerization for different materials, sizes, surface treatments. For specific requirements, please contact LBTEK Clientele Service.
Key Features
- The DR100F-25 and DR100F-90 are commonly used for directly mounting optomechanical components onto precision 100 mm dovetail optical rails;
- The DR100F-12 has a width of 12 mm and is used with sliders for precise positioning;
- Spring-loaded thumb screws are used to secure the slider position;
- Wear-resistant POM balls provide support;
Application
TXY1S is mounted on DR100-150 and DR100F-25.
| Parallelism | <0.05 mm |
