Precision Two-Dimensional Optical Mount AMM-3B
AMM-3B$291.19
In Stock
Design Tools
View all 49 calculators →Complete Your Setup
RoHS
REACH

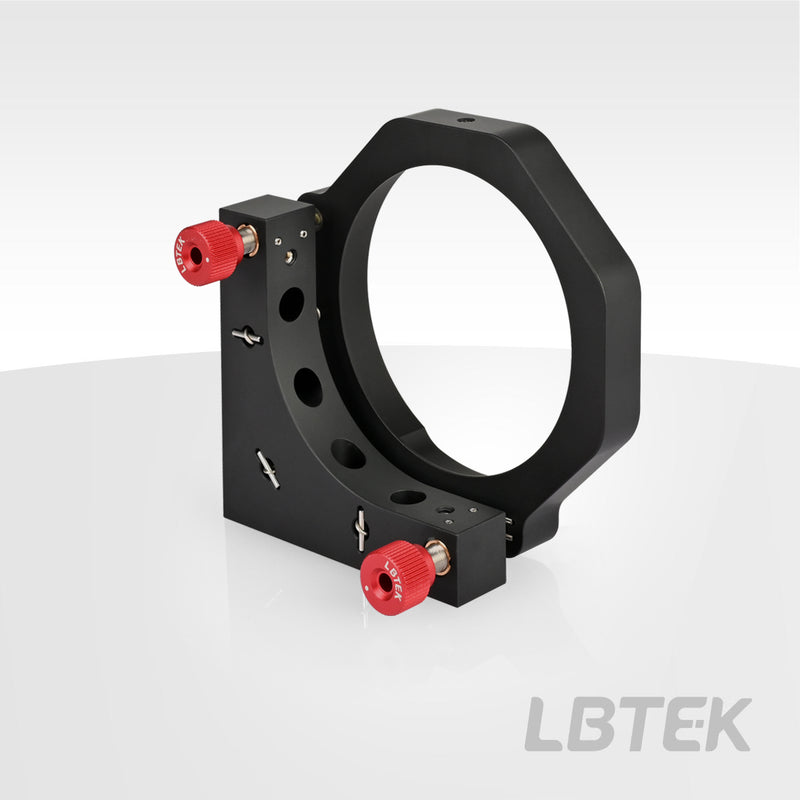

Precision Two-Dimensional Optical Mount — Model AMM-3B
✔ In Stock — Ships Today
LBTEK AMM series precision optical mounts feature a smooth, threadless optical wall and secure optical components with set screws. The AMM-3B precision optical mount is specifically designed for Ø3-inch optical elements, supporting ±4° of pitch and yaw adjustment. To enhance overall performance, the mount incorporates high-rigidity springs and wear-resistant inserts while maintaining structural strength, effectively balancing the load and improving durability.
This mount is equipped with two M6×0.25 precision adjusters, enabling precise angular control of ±4°. The stainless steel lead screw paired with a brass bushing ensures smooth and accurate adjustment. The base features four M4 countersunk holes, supporting left- or right-handed installation of connecting rods to accommodate various assembly scenarios.
Key Features
- Material: 6061-T6 Aluminum Alloy
- Two Precision Regulators
- Fixed with M4 Rubber-Tipped Set Screws
- Thick Back Plate and Heavy-Duty Spring for Better Stability
Application
AMM series products are commonly used for mounting optical components such as mirrors.
No specifications available for this product.
Product Family: Precision Two-Dimensional Optical Mount (1 variants)
| Product | SKU | Size | Clear Aperture | Operating Wavelength | |
|---|---|---|---|---|---|
| Precision Two-Dimensional Optical Mount AMM-3B Current |
AMM-3B
| — | — | — |
