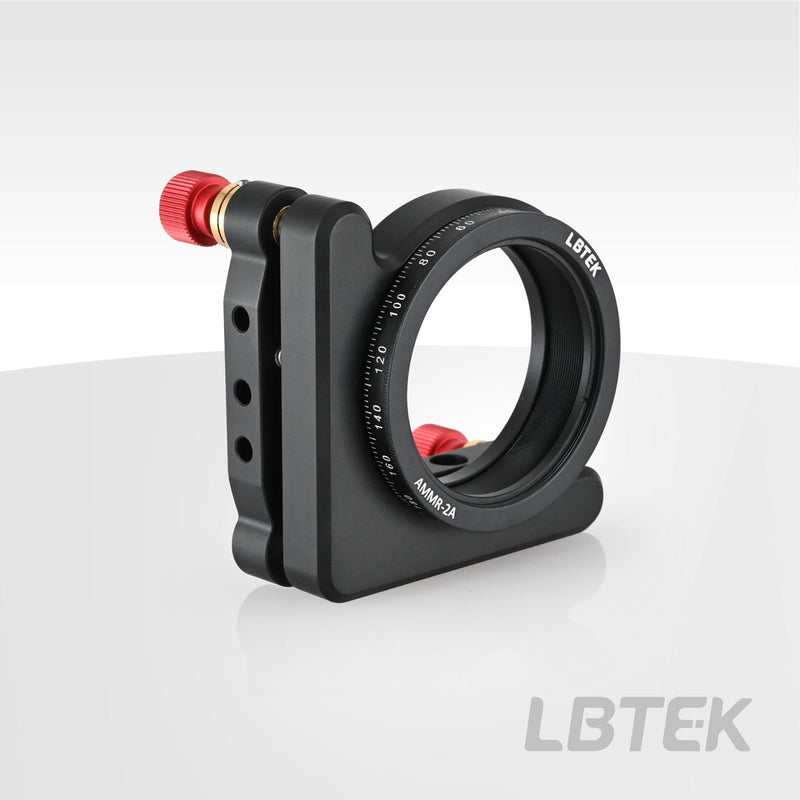

Optical Rotation Mounts — Model AMMR-2A
✔ In Stock — Ships Today
The LBTEK Optical Rotation Mount is commonly used in requiring control over the angular position and rotation of optical components. It features a central SM2 tapped hole for mounting Ø50.8 mm diameter optical components (up to 12 mm thickness) using the included SM2R retaining ring. Additionally, SM2 lens tubes can be threaded into the mount to secure thicker optics. The mount is equipped with two M6 precision adjustment screw pairs, each featuring an M3 locking screw in the threaded bushing. These locking screws can be tightened using a 1.5 mm hex wrench to secure the adjustment mechanism. The rotation of the mount can be fixed using an M4 locking screw, which can be adjusted with a 2.0 mm hex wrench. The back plate includes six M4 countersunk holes for attaching optical posts, enabling both left- and right-handed mounting. Purchasing the LBTEK Optical Rotation Mount includes one 2.0 mm hex wrench.
Key Features
- Applicable to optical component diameter: Ø50.8 mm
- Maximum thickness of mounted optical component: 12 mm
- Two lockable adjusters
- Pitch/yaw adjustable angle range ±3°, 0.23° per rotation
- 360° continuous rotation, scale accuracy 2°
- Adjusters and rotation mount can be individually locked with locking screws
- Including one SM2R retaining ring
Application
Installation of Optical Rotation Mounts
| Surface Treatment | Black anodized |
| Maximum applicable thickness of optical components | 12 mm |
| Applicable optical element diameter | Ø50.8 mm |
| Optical component mounting method | Single retaining ring |
| Countersunk Hole Specification/Quantity | M4/6 pcs |
| Main material | 6061-T6 Aluminum Alloy |
| Optical axis center height | 41 mm |
| included retaining ring | SM2R/1 piece |
| Rotary Indexing | 2° |
| Pitch/Yaw Angle Accuracy | 0.23°/revolution |
| Adjustment Pitch | 0.25 mm/rev |
| Hex Key Wrench | 2.0 mm/1 pc |
| Rotation angle | 360° |
| Adjustable pitch/yaw angle range | ±3° |
